Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LS0851502F120C1ASWITCH SNAP ACTION SPDT 15A 125V |
4,389 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 120gf | 40gf | 0.610" (15.5mm) | 0.161" (4.1mm) | - | - | -25°C ~ 85°C |
|
|
LS0851502F120C1CSWITCH SNAP ACT SPST-NO 15A 125V |
1,523 |
|
Datasheet | LS | Bulk | Active | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 120gf | 40gf | 0.610" (15.5mm) | 0.161" (4.1mm) | - | - | -25°C ~ 85°C |
|
|
LS0851500F250C1ASWITCH SNAP ACTION SPDT 15A 125V |
3,236 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 250gf | 50gf | 0.579" (14.7mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|

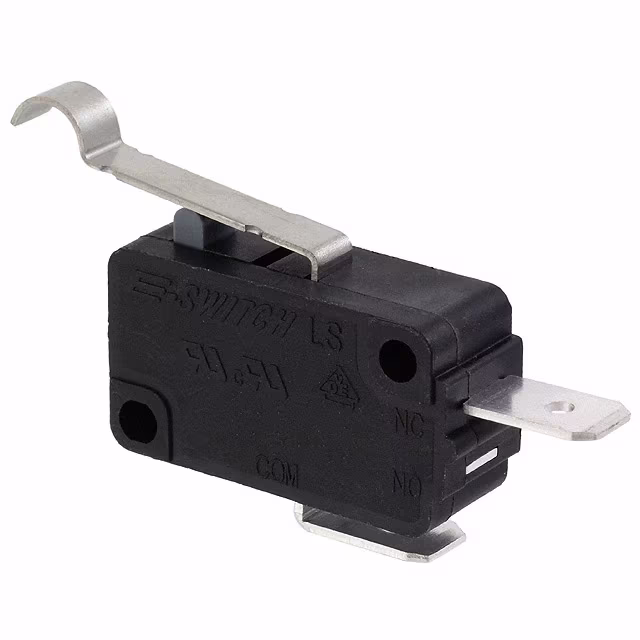

LS0851504F085C2BSWITCH SNAP ACT SPST-NC 15A 125V |
2,536 |
|
Datasheet | LS | Bulk | Active | SPST-NC | On-Mom | 15A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 85gf | 30gf | 0.748" (19.0mm) | 0.205" (5.2mm) | - | - | -25°C ~ 85°C |
|
|
LS0851504F050V2BSWITCH SNAP ACT SPST-NC 15A 125V |
3,465 |
|
Datasheet | LS | Bulk | Active | SPST-NC | On-Mom | 15A (AC) | 125 V | - | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 50gf | 20gf | 0.748" (19.0mm) | 0.205" (5.2mm) | - | - | -25°C ~ 85°C |
|
|
LS0851506F0450C1ASWITCH SNAP ACTION SPDT 15A 125V |
4,719 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 45gf | 15gf | 0.815" (20.7mm) | 0.218" (5.5mm) | - | - | -25°C ~ 85°C |
|
|
LS0851503F025C2ASWITCH SNAP ACTION SPDT 15A 125V |
2,406 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 25gf | 10gf | 0.602" (15.3mm) | 0.335" (8.5mm) | - | - | -25°C ~ 85°C |
|
|
LS0851505F160V1ASWITCH SNAP ACTION SPDT 15A 125V |
2,457 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Through Hole, Right Angle | PC Pin | - | - | 160gf | 40gf | 0.815" (20.7mm) | 0.106" (2.7mm) | - | - | -25°C ~ 85°C |
|
|
LS0851505F160C2BSWITCH SNAP ACT SPST-NC 15A 125V |
1,928 |
|
Datasheet | LS | Bulk | Active | SPST-NC | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 160gf | 40gf | 0.815" (20.7mm) | 0.106" (2.7mm) | - | - | -25°C ~ 85°C |
|
|
LS0851505F250C1CSWITCH SNAP ACT SPST-NO 15A 125V |
1,270 |
|
Datasheet | LS | Bulk | Active | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 250gf | 50gf | 0.815" (20.7mm) | 0.106" (2.7mm) | - | - | -25°C ~ 85°C |
