Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MS0850503F010P1ASWITCH SNAP ACTION SPDT 5A 125V |
3,050 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 10gf | 5.000gf | 0.374" (9.5mm) | 0.172" (4.4mm) | - | - | -25°C ~ 85°C |
|
|
MS0850503F025P1ASWITCH SNAP ACTION SPDT 5A 125V |
2,902 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 25gf | 12gf | 0.374" (9.5mm) | 0.172" (4.4mm) | - | - | -25°C ~ 85°C |
|
|
MS0850502F075S1ASWITCH SNAP ACTION SPDT 5A 125V |
4,360 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 75gf | 25gf | 0.358" (9.1mm) | 0.150" (3.8mm) | - | - | -25°C ~ 85°C |
|
|
MS0850501F035V1ASWITCH SNAP ACTION SPDT 5A 125V |
4,092 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 35gf | 20gf | 0.358" (9.1mm) | 0.140" (3.6mm) | - | - | -25°C ~ 85°C |
|
|
MS0850501F050P1ASWITCH SNAP ACTION SPDT 5A 125V |
2,382 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 50gf | 20gf | 0.358" (9.1mm) | 0.140" (3.6mm) | - | - | -25°C ~ 85°C |
|
|
MS0850502F030C1ASWITCH SNAP ACTION SPDT 5A 125V |
2,636 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 30gf | 12gf | 0.358" (9.1mm) | 0.150" (3.8mm) | - | - | -25°C ~ 85°C |
|
|
MS0850505F050V1ASwitches |
4,203 |
|
Datasheet | MS | Bulk | Active | SPDT | On-On | 5A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 20gf | 0.587" (14.90mm) | 0.157" (4.0mm) | - | - | -25°C ~ 85°C |
|
|
MS0850505F050V2ASwitches |
4,426 |
|
Datasheet | MS | Bulk | Active | SPDT | On-On | 5A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 20gf | 0.587" (14.90mm) | 0.157" (4.0mm) | - | - | -25°C ~ 85°C |
|

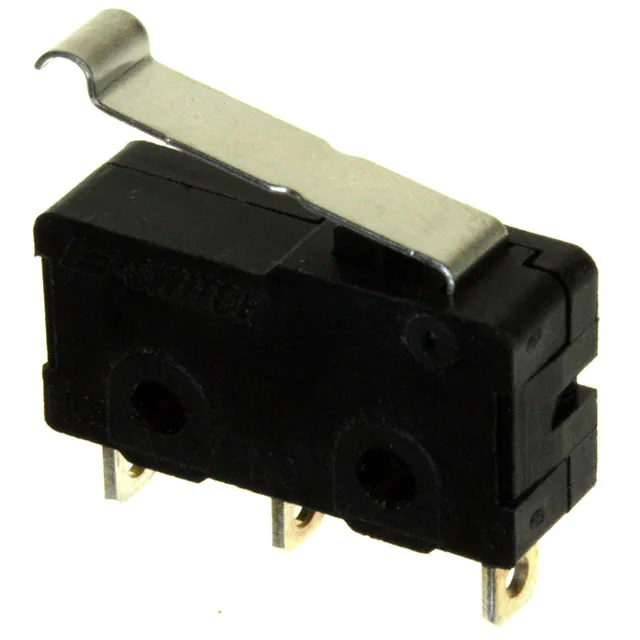

MS0850504F035S1ASWITCH SNAP ACTION SPDT 5A 125V |
4,335 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 35gf | 20gf | 0.429" (10.9mm) | 0.125" (3.2mm) | - | - | -25°C ~ 85°C |
|
|
MS0850504F020C1CSWITCH SNAP ACT SPST-NO 5A 125V |
3,106 |
|
Datasheet | MS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 20gf | 8.000gf | 0.429" (10.9mm) | 0.125" (3.2mm) | - | - | -25°C ~ 85°C |
