Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LS0851500F160V2CMKSwitches |
1,661 |
|
Datasheet | LS | Bulk | Active | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 160gf | 40gf | 0.579" (14.7mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|
|
LS0851500F160V2BMKSwitches |
2,233 |
|
Datasheet | LS | Bulk | Active | SPST-NC | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 160gf | 40gf | 0.579" (14.7mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|
|
MS0850503F025C1CSWITCH SNAP ACT SPST-NO 5A 125V |
2,555 |
|
Datasheet | MS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 25gf | 12gf | 0.374" (9.5mm) | 0.172" (4.4mm) | - | - | -25°C ~ 85°C |
|
|
MS0850503F010C1ASWITCH SNAP ACTION SPDT 5A 125V |
1,112 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 10gf | 5.000gf | 0.374" (9.5mm) | 0.172" (4.4mm) | - | - | -25°C ~ 85°C |
|
|
SS075R102F025S1ASWITCH SNAP ACT SPDT 0.4VA 20V |
2,963 |
|
Datasheet | SS | Bulk | Active | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 25gf | 10gf | 0.425" (10.8mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|

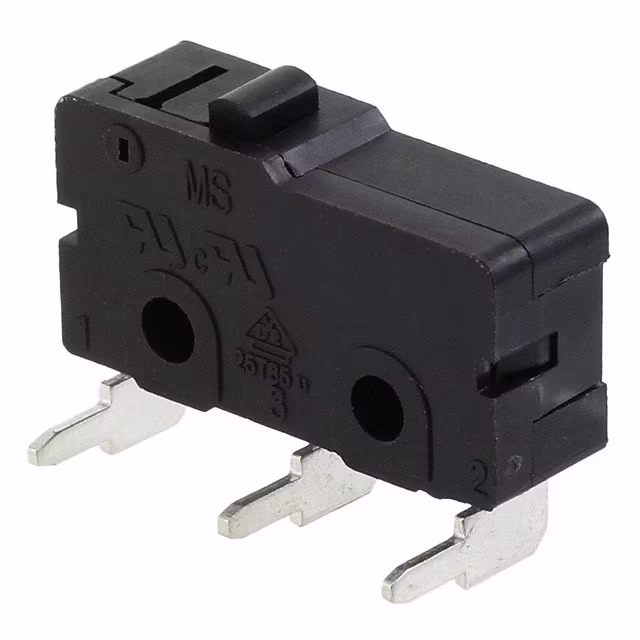

MS0850500F080V2ASWITCH SNAP ACTION SPDT 5A 125V |
2,340 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 80gf | 25gf | 0.335" (8.5mm) | 0.043" (1.1mm) | - | - | -25°C ~ 85°C |
|
MS0850500F130P1ASWITCH SNAP ACTION SPDT 5A 125V |
1,810 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 130gf | 40gf | 0.335" (8.5mm) | 0.043" (1.1mm) | - | - | -25°C ~ 85°C |
|
|
MS0850500F150V1ASWITCH SNAP ACTION SPDT 5A 125V |
1,030 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 150gf | 40gf | 0.335" (8.5mm) | 0.043" (1.1mm) | - | - | -25°C ~ 85°C |
|
|
LS0851500F160V2A MKSwitches |
2,724 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 160gf | 40gf | 0.579" (14.7mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|
|
SS0750301F040V2ASWITCH SNAP ACTION SPDT 3A 125V |
1,727 |
|
Datasheet | SS | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 40gf | 15gf | 0.345" (8.8mm) | 0.063" (1.6mm) | - | - | -25°C ~ 75°C |
