Proximity Sensors - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensor Type | Sensing Distance | Output Type | Response Frequency | Shielding | Material - Body | Voltage - Supply | Termination Style | Operating Temperature | Ingress Protection | Indicator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NBN6-F29B-E0INDUCTIVE DC |
4,319 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.236" (6mm) | Digital | - | Unshielded | Polycarbonate (PC) | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
|
NBB2-V3-E2-V3INDUCTIVE DC |
4,903 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.079" (2mm) | PNP-NO, 3-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|
|
NBN6-F29B-E3INDUCTIVE DC |
2,559 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.236" (6mm) | Digital | - | Unshielded | Polycarbonate (PC) | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
|
NBN6-F29B-E2INDUCTIVE DC |
1,085 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.236" (6mm) | Digital | - | Unshielded | Polycarbonate (PC) | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|

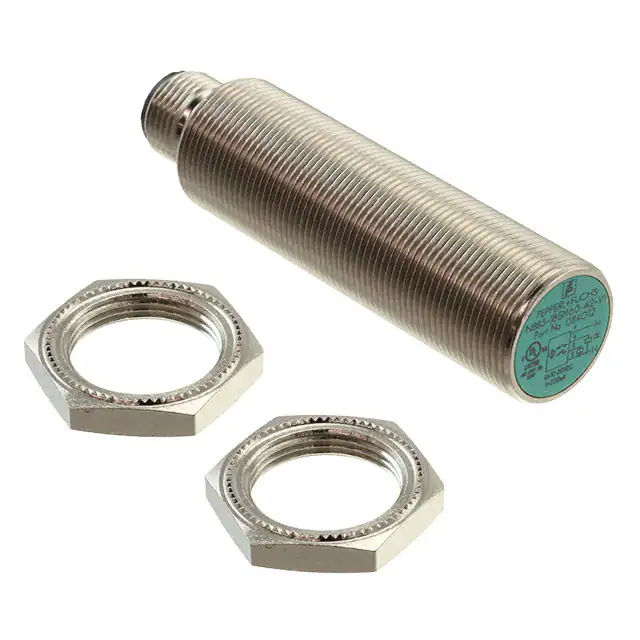

NBB5-18GM60-A2-V1INDUCTIVE SEN 5MM PNP |
1,536 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Obsolete | Inductive | 0.197" (5mm) | PNP-NC/NO, 4-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|
|
NBB2-12GM40-E0INDUCTIVE DC |
4,560 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.079" (2mm) | NPN-NO, 3-Wire | - | Unshielded | Brass | 5V ~ 36V | Cable | -40°C ~ 85°C | IP65, IP66, IP67, IP68 | LED |
|
|
NBN4-12GM50-E3-V1INDUCTIVE DC |
2,269 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.157" (4mm) | PNP-NC, 3-Wire | - | Unshielded | Brass | 5V ~ 36V | Connector | -40°C ~ 85°C | IP65, IP66, IP67, IP68 | LED |
|
|
SC3,5-N0-BUINDUCTIVE NAMUR |
4,667 |
|
Datasheet | - | Module | Box | Active | Inductive | 1.181" ~ 15.748" (30mm ~ 400mm) | NAMUR-NC, 2-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 5V ~ 25V | Cable | -25°C ~ 100°C | IP67 | LED |
|
|
NBB2-12GM40-E1INDUCTIVE DC |
3,527 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.079" (2mm) | NPN-NC, 3-Wire | - | Unshielded | Brass | 5V ~ 36V | Cable | -40°C ~ 85°C | IP65, IP66, IP67, IP68 | LED |
|
|
NBB2-12GM40-E3INDUCTIVE DC |
2,637 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.079" (2mm) | PNP-NC, 3-Wire | - | Unshielded | Brass | 5V ~ 36V | Cable | -40°C ~ 85°C | IP65, IP66, IP67, IP68 | LED |
