Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3319/30 100CBL RIBN 30COND 0.05 BLACK 25' |
2,342 |
|
Datasheet | 3319 | Bulk | Active | Flat Cable | 30 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | 1.500" (38.10mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
.jpg)
|
3302/50 300SFCBL RIBN 50COND 0.05 MULTI 100' |
3,801 |
|
Datasheet | 3302 | Bulk | Active | Flat Cable | 50 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 2.500" (63.50mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Splice Free, Zippable |
|
HF759/20SFCBL RIBN 20COND 0.05 GRAY 100' |
1,631 |
|
Datasheet | HF759 | Box | Active | Flat Cable, Round Jacket | 20 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | - | 0.950" (24.13mm) | Polyolefin (PO) | 150 V | - | - | -10°C ~ 75°C | UL Style 22170 | Splice Free, Zippable |
|
3365/37 300CBL RIBN 37COND 0.05 GRAY 300' |
3,754 |
|
Datasheet | 3365 | Spool | Active | Flat Cable | 37 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.850" (46.99mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3758/24 275SFCBL RIBN 24COND 0.05 GRAY 275' |
4,877 |
|
Datasheet | 3758 | Spool | Obsolete | Flat Cable, Round Jacket | 24 | 0.050" (1.27mm) | 275.0' (83.82m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Gray | - | 1.150" (29.21mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free, Zippable |
|

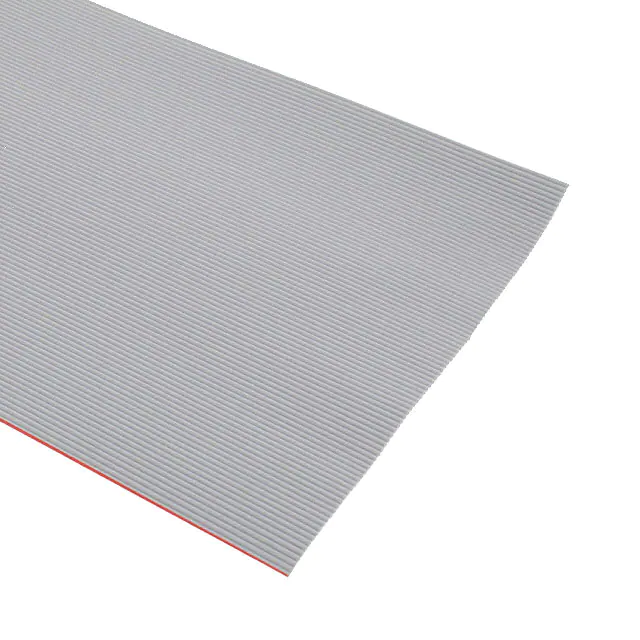

3849/96 100CBL RIBN 96COND 0.033 GRAY 50' |
4,122 |
|
Datasheet | 3849 | Bulk | Active | Flat Cable | 96 | 0.033" (0.85mm) | 50.0' (15.24m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Gray | 0.033" (0.84mm) | 3.197" (81.20mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3517/50 100SFCBL RIBN 50COND 0.05 GRAY 25' |
4,982 |
|
Datasheet | 3517 | Bulk | Active | Flat Cable, Flat Jacket | 50 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 2.630" (66.80mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|
HF625/24-100MCBL RIBN 24COND 0.039 GRY 229.7' |
3,543 |
|
Datasheet | HF625 | Bulk | Active | Flat Cable | 24 | 0.039" (1.00mm) | 229.7' (70.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.945" (24.00mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|

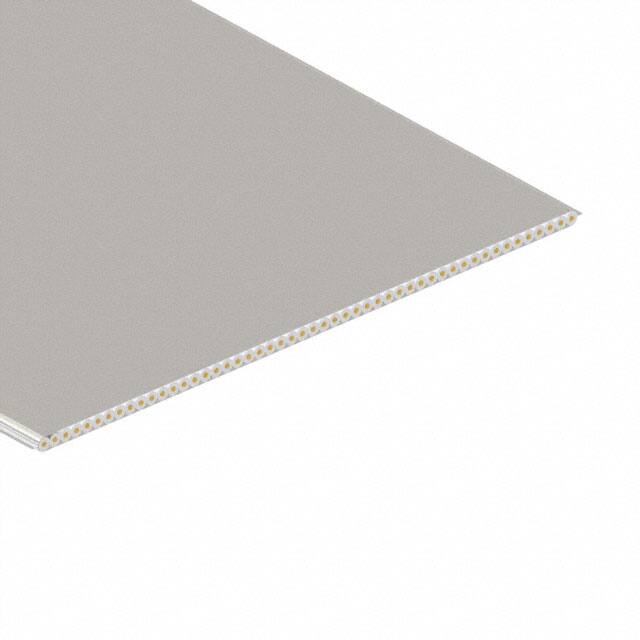

7700/50 100'SFCBL RIBN 50COND 0.025 SILVER 50' |
1,770 |
|
Datasheet | 7700 | Box | Discontinued at Digi-Key | Flat Cable | 50 | 0.025" (0.64mm) | 50.0' (15.24m) | 30 AWG | Solid | Unshielded | Silver | 0.030" (0.76mm) | 1.300" (33.02mm) | Polyolefin (PO) | 30 V | - | - | -20°C ~ 80°C | - | Splice Free |
|
HF659/16SFCBL RIBN 16COND 0.05 GRAY 100' |
2,331 |
|
Datasheet | HF659 | Box | Active | Flat Cable, Round Jacket | 16 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | - | 0.750" (19.05mm) | Polyolefin (PO) | 150 V | - | - | -15°C ~ 75°C | UL Style 22170 | Splice Free, Zippable |
