Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HF625/26-100MCBL RIBN 26COND 0.039 GRY 229.7' |
4,908 |
|
Datasheet | HF625 | Bulk | Active | Flat Cable | 26 | 0.039" (1.00mm) | 229.7' (70.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.024" (26.01mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
2049/100 100SFCBL RIBN 100COND 0.025 WHT 100' |
1,251 |
|
Datasheet | 2049 | Spool | Obsolete | Flat Cable | 100 | 0.025" (0.64mm) | 100.0' (30.48m) | 30 AWG | Solid | Unshielded | White | 0.025" (0.64mm) | 2.500" (63.50mm) | Polyolefin (PO) | 30 V | - | - | -20°C ~ 105°C | UL Style 20930 | Splice Free |
|
SL8803/04-10DN5-00CBL RIBN 4COND SILVER 500' |
3,072 |
|
Datasheet | SL8800 | Bulk | Active | Flat Twin Axial | 4 (2 Pair) | - | 500.0' (152.40m) | 30 AWG | Solid | Shielded | Silver | 0.035" (0.89mm) | 0.307" (7.80mm) | Polyolefin (PO) | 150 V | - | - | -20°C ~ 80°C | UL E42769 | - |
|

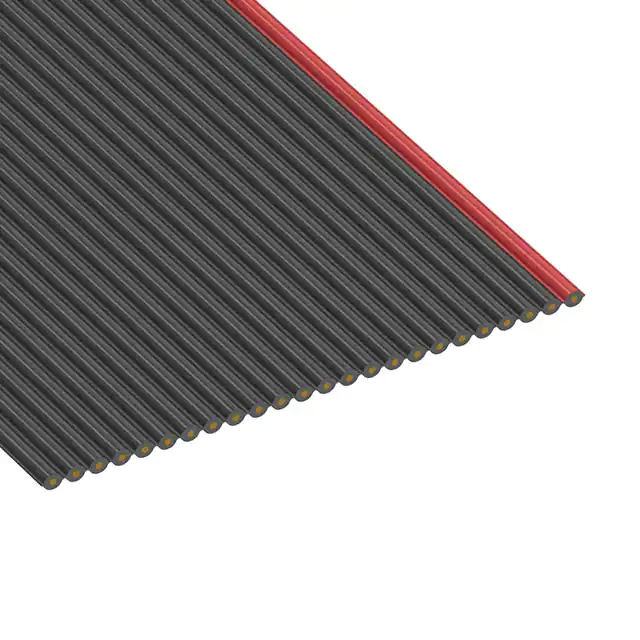

3319/24 100CBL RIBN 24COND 0.05 BLACK 50' |
2,813 |
|
Datasheet | 3319 | Bulk | Active | Flat Cable | 24 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | 1.200" (30.48mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
HF100/50TPCBL RIBN 50COND TWIST PAIR 50' |
1,248 |
|
Datasheet | HF100 | Box | Active | Flat Twisted Pair | 50 (25 Pair Twisted) | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue, White | 0.070" (1.78mm) | 2.500" (63.50mm) | Polyolefin (PO) | 150 V | - | - | -40°C ~ 105°C | UL Style 21008 | - |
|
3709/37 300CBL RIBN 37COND 0.05 GRAY 300' |
4,803 |
|
Datasheet | 3709 | Bulk | Obsolete | Flat Cable | 37 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | Solid | Unshielded | Gray | 0.033" (0.84mm) | 1.850" (46.99mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
|
3603/20 150CBL RIBN |
1,898 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1700/34EP 299'CBL RIBN 34COND TWIST PAIR 299' |
1,637 |
|
- |
1700 | Bulk | Active | Flat Twisted Pair | 34 (17 Pair Twisted) | 0.050" (1.27mm) | 299.0' (91.14m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.080" (2.03mm) | 1.700" (43.18mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | - |
|
3601/50 100CBL RIBN 50COND 0.05 BLUE 10' |
2,187 |
|
Datasheet | 3601 | Bulk | Active | Flat Cable | 50 | 0.050" (1.27mm) | 10.0' (3.05m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | 0.029" (0.74mm) | 2.500" (63.50mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
3601/20 100CBL RIBN 20COND 0.05 BLUE 25' |
1,023 |
|
Datasheet | 3601 | Bulk | Active | Flat Cable | 20 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | 0.029" (0.74mm) | 1.000" (25.40mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
