Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HF625/30-100MCBL RIBN 30COND 0.039 GRAY 164' |
4,529 |
|
Datasheet | HF625 | Bulk | Active | Flat Cable | 30 | 0.039" (1.00mm) | 164.0' (50.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.181" (30.00mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
3601/40 100CBL RIBN 40COND 0.05 BLUE 10' |
1,468 |
|
Datasheet | 3601 | Bulk | Active | Flat Cable | 40 | 0.050" (1.27mm) | 10.0' (3.05m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | 0.029" (0.74mm) | 2.000" (50.80mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
3601/16 100CBL RIBN 16COND 0.05 BLUE 25' |
4,755 |
|
Datasheet | 3601 | Bulk | Active | Flat Cable | 16 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | 0.029" (0.74mm) | 0.800" (20.32mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
3601/15 100CBL RIBN 15COND 0.05 BLUE 25' |
2,369 |
|
Datasheet | 3601 | Bulk | Active | Flat Cable | 15 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | 0.029" (0.74mm) | 0.750" (19.05mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|

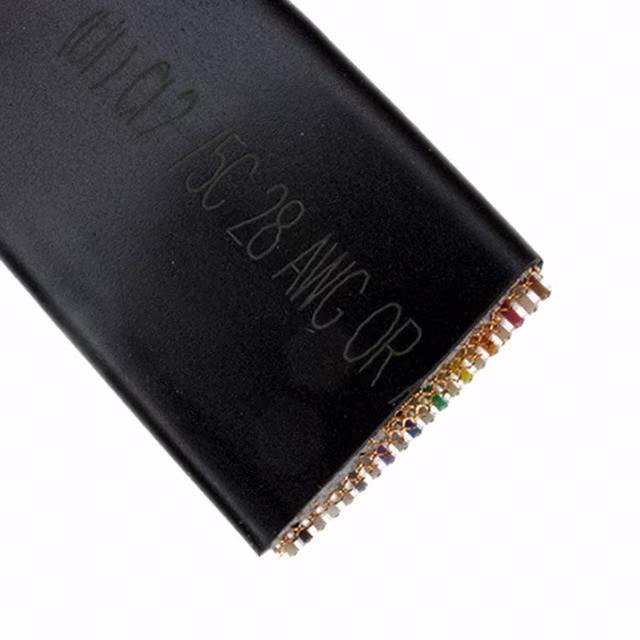

1785/20 100SFCBL RIBN 20COND TWIST PAIR 50' |
2,998 |
|
Datasheet | 1785 | Bulk | Active | Flat Twisted Pair, Flat Jacket | 20 (10 Pair Twisted) | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | 0.120" (3.05mm) | 1.130" (28.70mm) | Poly-Vinyl Chloride (PVC) | 150 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|
3625/50 100MCBL RIBN 50COND 0.039 GRAY 164' |
2,717 |
|
Datasheet | 3625 | Bulk | Active | Flat Cable | 50 | 0.039" (1.00mm) | 164.0' (50.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.969" (50.01mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3517/40 100CBL RIBN 40COND 0.05 GRAY 25' |
4,160 |
|
Datasheet | 3517 | Bulk | Active | Flat Cable, Flat Jacket | 40 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 2.130" (54.10mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | - |
|
3756/100 100CBL RIBN 100COND 0.025 GRAY 50' |
3,648 |
|
Datasheet | 3756 | Bulk | Active | Flat Cable | 100 | 0.025" (0.64mm) | 50.0' (15.24m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Gray | 0.025" (0.64mm) | 2.500" (63.50mm) | Thermoplastic Elastomer (TPE) | 150 V | - | - | -40°C ~ 105°C | UL Style 20297 | - |
|
3319/40 100CBL RIBN 40COND 0.05 BLACK 25' |
4,759 |
|
Datasheet | 3319 | Bulk | Active | Flat Cable | 40 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | 2.000" (50.80mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3319/20 100CBL RIBN 20COND 0.05 BLACK 50' |
3,996 |
|
Datasheet | 3319 | Bulk | Active | Flat Cable | 20 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | 1.000" (25.40mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
