Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HF659/20SFCBL RIBN 20COND 0.05 GRAY 100' |
4,096 |
|
Datasheet | HF659 | Box | Discontinued at Digi-Key | Flat Cable, Round Jacket | 20 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | - | 0.950" (24.13mm) | Polyolefin (PO) | 150 V | - | - | -15°C ~ 75°C | UL Style 22170 | Splice Free, Zippable |
|
7700/26CBL RIBN |
1,232 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
3801/40PI 300CBL RIBN 40COND 0.05 GRAY 300' |
4,871 |
|
Datasheet | 3801 | Bulk | Obsolete | Flat Cable | 40 | 0.050" (1.27mm) | 300.0' (91.44m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Gray | 0.039" (0.99mm) | 2.000" (50.80mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
HF447/80 100'CBL RIBN 80COND 0.025 GRAY 50' |
3,661 |
|
Datasheet | HF447 | Box | Active | Flat Cable | 80 | 0.025" (0.64mm) | 50.0' (15.24m) | 30 AWG | Solid | Unshielded | Gray | 0.025" (0.64mm) | 2.000" (50.80mm) | Ethylene Vinyl Acetate Copolymer (EVA), Polyolefin (PO) | 150 V | - | - | -40°C ~ 90°C | - | - |
|
1785/50 100SFCBL RIBN 50COND TWIST PAIR 25' |
2,690 |
|
Datasheet | 1785 | Bulk | Active | Flat Twisted Pair, Flat Jacket | 50 (25 Pair Twisted) | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | 0.120" (3.05mm) | 2.630" (66.80mm) | Poly-Vinyl Chloride (PVC) | 150 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|
3517/20 100SFCBL RIBN 20COND 0.05 GRAY 50' |
1,470 |
|
Datasheet | 3517 | Bulk | Active | Flat Cable, Flat Jacket | 20 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 1.130" (28.70mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|

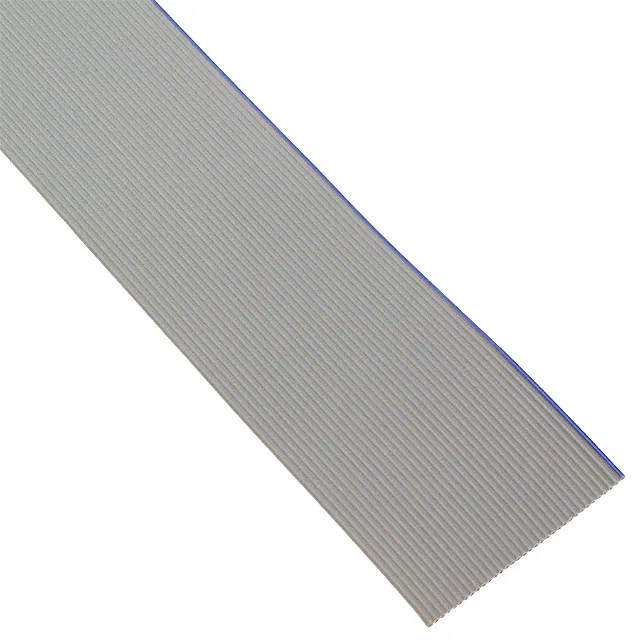

HF539/34SFCBL RIBN 34COND 0.05 GRAY 50' |
2,123 |
|
Datasheet | HF539 | Box | Active | Flat Cable | 34 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.700" (43.18mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Splice Free, Zippable |
|
2010/64 100SFCBL RIBN 64COND 0.05 WHITE 100' |
3,638 |
|
Datasheet | 2010 | Spool | Obsolete | Flat Cable | 64 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | White | 0.035" (0.89mm) | 3.200" (81.28mm) | Polyolefin (PO) | 30 V | - | - | -20°C ~ 105°C | UL Style 20930 | Splice Free, Zippable |
|
|
3604/16CBL RIBN 16COND FLAT 0.025 WHITE |
2,190 |
|
Datasheet | 3604 | Spool | Obsolete | Flat Cable | 16 | 0.025" (0.64mm) | - | 30 AWG | Solid | Unshielded | White | 0.024" (0.61mm) | 0.400" (10.16mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | -55°C ~ 150°C | UL Style 20726 | - |
|
|
3391/15SFCBL RIBN 15COND 0.156 MULTI 100' |
3,874 |
|
- |
3391 | Bulk | Obsolete | Flat Cable | 15 | 0.156" (3.96mm) | 100.0' (30.48m) | 22 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.069" (1.75mm) | 2.262" (57.45mm) | Poly-Vinyl Chloride (PVC) | 600 V | - | - | -20°C ~ 80°C | UL Style 20122 | Splice Free, Zippable |
