Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

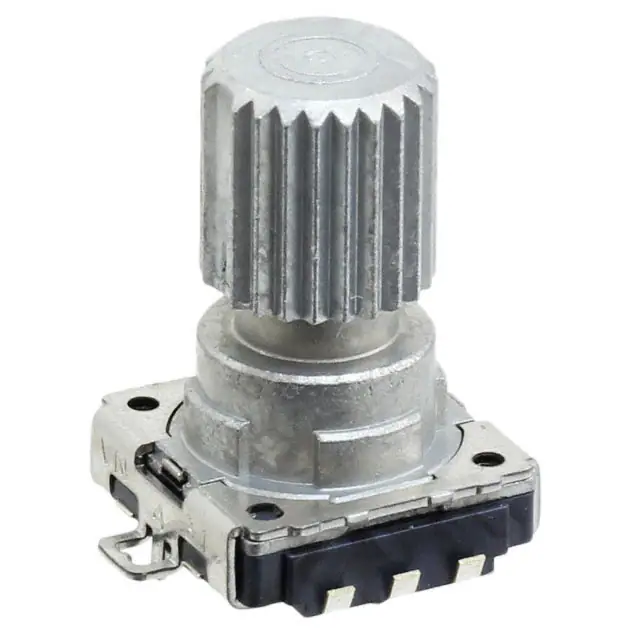

EVE-T23AH516BROTARY ENCODER MECHANICAL 16PPR |
3,990 |
|
Datasheet | - | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | - | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
EAW0J-B24-BE0128LROTARY ENCODER MECHANICAL 128PPR |
3,034 |
|
Datasheet | ACE™ | Tray | Active | Not Verified | Mechanical | Binary (Absolute) | 128 | - | 1/4" Dia Slotted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 50K | - | - |
|
EPS1D-F19-BD0024LROTARY ENCODER MECHANICAL 24PPR |
4,243 |
|
Datasheet | EPS | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 4.8mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 200K | - | - |
|
HEDS-9701#F54ROTARY ENCODER OPTICAL 256PPR |
3,302 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 256 | 5V | Codewheel Not Included | No | No | Chassis Mount | Right Angle | Terminal Pins | - | - | - |
|
EM14R1D-R20-L032NROTARY ENCODER OPTICAL 32PPR |
1,810 |
|
Datasheet | EM14 | Tube | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 6mm Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
REC16M25-20116MM MANUAL ENCODER, SINGLE SHAF |
2,135 |
|
Datasheet | REC16M | Box | Active | Not Verified | Optical | Voltage | 25 | 5V | 6mm Dia Flatted End | No | No | PCB, Through Hole | Vertical | PC Pin | 2M | - | - |
|
C14D32P-A3P15 MM, 32 PPR, 6.35 MM PLASTIC S |
3,107 |
|
Datasheet | C14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | Yes | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|
62AG11-L0-PROTARY ENCODER OPTICAL 32PPR |
2,449 |
|
Datasheet | 62AG | Tube | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
62AG11-L5-PROTARY ENCODER OPTICAL 32PPR |
3,012 |
|
Datasheet | 62AG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
62SG15-L5-RACROTARY ENCODER OPTICAL 24PPR |
2,422 |
|
Datasheet | 62SG | Bulk | Active | Not Verified | Incremental | Gray Code (Absolute) | 24 | 5V | 6.32mm Dia Flatted End | Yes | Yes | Panel Mount | User Selectable | PC Pin | 1M | - | - |
|
25LB45-QROTARY ENCODER MECHANICAL 8PPR |
1,940 |
|
Datasheet | 25L | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 8 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
EM14R0D-R20-L032NROTARY ENCODER OPTICAL 32PPR |
2,495 |
|
Datasheet | EM14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 6mm Dia Slotted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
EM14A0D-B28-L064NROTARY ENCODER OPTICAL 64PPR |
4,972 |
|
Datasheet | EM14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 64 | 5V | 1/4" Dia Slotted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
EM14R0D-R20-L032SROTARY ENCODER OPTICAL 32PPR |
2,601 |
|
Datasheet | EM14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 6mm Dia Slotted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|

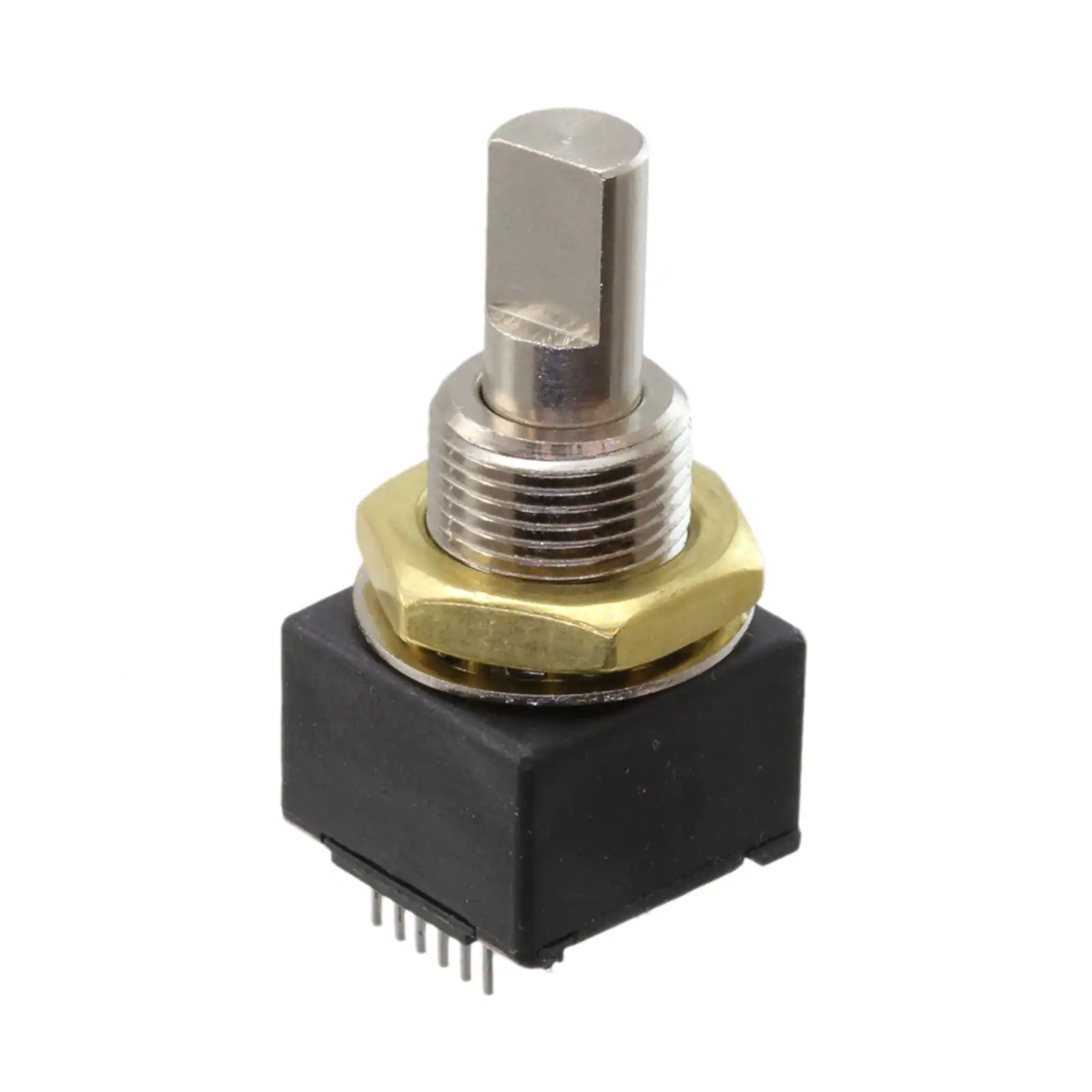

EM14R1D-M20-L032SROTARY ENCODER OPTICAL 32PPR |
4,251 |
|
Datasheet | EM14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
AMT11A3S-VKIT, AMT11A3S, INCREMENTAL ENCOD |
2,629 |
|
Datasheet | AMT11A | Box | Active | Not Verified | Capacitive, Incremental | Voltage | - | 4.5V ~ 5.5V | - | No | No | Chassis Mount | Right Angle | Connector | - | - | - |
|
ENC1J-D20-L00128LROTARY ENCODER OPTICAL 128PPR |
1,548 |
|
Datasheet | EN | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 128 | 5V | 1/8" Dia Round End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|
EMS22P50-B28-LS6ROTARY ENCODER MAGNETIC 1024PPR |
2,101 |
|
Datasheet | - | Tray | Active | Not Verified | Magnetic | PWM | 1024 | 5V | 1/4" Dia Round End | No | - | Panel Mount | Vertical | PC Pin | 100M | - | - |
|
513374-12-CROTARY ENCODER MECHANICAL 12PPR |
4,191 |
|
Datasheet | 51 | Bulk | Active | Not Verified | Mechanical | BCD (Absolute) | 12 | - | 1/8" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 25K | - | - |
|
|
AMT11A3Q-VKIT, AMT11A3Q, INCREMENTAL ENCOD |
4,583 |
|
Datasheet | AMT11A | Box | Active | Not Verified | Capacitive, Incremental | Quadrature Line Driver (Incremental) | - | 4.5V ~ 5.5V | - | No | No | Chassis Mount | Right Angle | Connector | - | - | - |
