Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
62V11-02-PROTARY ENCODER OPTICAL 32PPR |
2,774 |
|
Datasheet | 62V | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 3.3V | 1/4" Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
ENS1J-B28-L00128LROTARY ENCODER OPTICAL 128PPR |
1,258 |
|
Datasheet | EN | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 128 | 5V | 1/4" Dia Round End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 200M | - | - |
|
HEDS-5540#A11ROTARY ENCODER OPTICAL 500PPR |
4,243 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | 4mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
61R64ROTARY ENCODER OPTICAL 64PPR |
2,423 |
|
Datasheet | 61R | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 64 | 5V | 1/4" Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|
TMCS-20-8K-KITROTARY ENCODER OPTICAL 8192PPR |
4,078 |
|
Datasheet | TMCS-20 | Bulk | Active | Not Verified | Optical | TTL | 8192 | 4.5V ~ 5.5V | Shaft | No | No | Chassis Mount | Vertical | Pin Header | - | - | - |
|
TMCS-40-10K-KITROTARY ENCODER OPTICAL 10000PPR |
1,858 |
|
Datasheet | TMCS-40 | Bulk | Active | Not Verified | Optical | TTL | 10000 | 4.5V ~ 5.5V | Shaft | No | No | Chassis Mount | Vertical | Pin Header | - | - | - |
|
|
AR25-AS1P-A12TPCBA CW 6MMTHRU H,SSI/485/ESL |
4,057 |
|
- |
- | Tray | Active | Not Verified | Optical | Digital, SSI | - | - | - | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | - | - | - |
|
TMCS-28-10K-KITROTARY ENCODER OPTICAL 10000PPR |
2,680 |
|
Datasheet | TMCS-28 | Bulk | Active | Not Verified | Optical | TTL | 10000 | 4.5V ~ 5.5V | Shaft | No | No | Chassis Mount | Vertical | Pin Header | - | - | - |
|
PEC12R-2125F-N0012ROTARY ENCODER MECHANICAL 12PPR |
1,587 |
|
Datasheet | PEC12R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Right Angle | PC Pin | 30K | - | - |
|

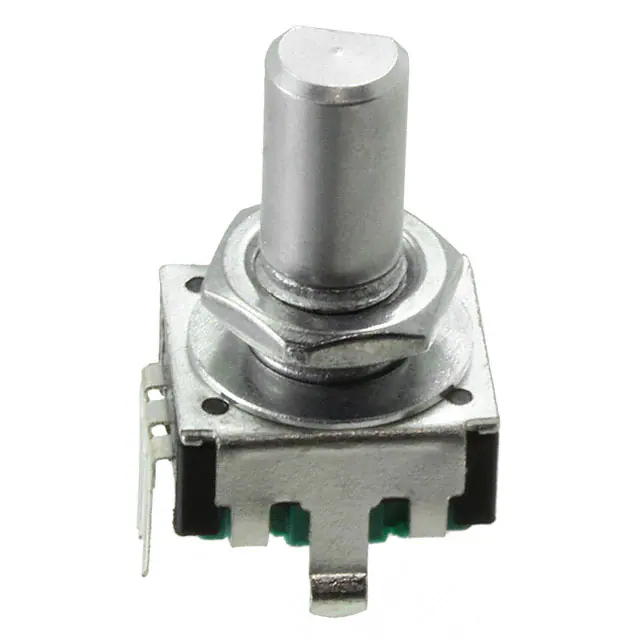

PEC11R-4215F-N0012ROTARY ENCODER MECHANICAL 12PPR |
2,609 |
|
Datasheet | PEC11R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11R-4315F-N0012ROTARY ENCODER MECHANICAL 12PPR |
1,735 |
|
Datasheet | PEC11R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
11CEY25F243BROT ENCODER MECHANICAL 24PPR WSW |
1,694 |
|
Datasheet | 11CE | Tray | Active | Not Verified | Mechanical | Quadrature, 2-Bit | 24 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|
PEL12S-4224S-N1024ROTARY ENCODER MECHANICAL 24PPR |
2,805 |
|
Datasheet | PEL12S | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Knurled End, Illuminated | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
ACZ16NBR1E-20FD1-24CROTARY ENCODER INCREMENT 24PPR |
4,757 |
|
Datasheet | ACZ16 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 24 | 5V | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
290VAA5F201B1ROTARY ENCODER MECHANICAL 20PPR |
3,859 |
|
Datasheet | 290 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 6mm Dia Flatted End | No | Yes | PCB, Through Hole | Vertical | PC Pin | 50K | - | - |
|
12CE1H24B12224ROT ENCODER MECH 12PPR BLUE LED |
3,884 |
|
Datasheet | 12CE | Tray | Active | Not Verified | Mechanical | Quadrature, 2-Bit | 12 | 5V | 6mm Dia Knurled End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
482024764004WS-ENTV INCREMENTAL ENCODER SWIT |
1,936 |
|
Datasheet | WS-ENTV | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
ECW0J-R19-BE0024LROTARY ENCODER MECHANICAL 24PPR |
2,388 |
|
Datasheet | ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Slotted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|

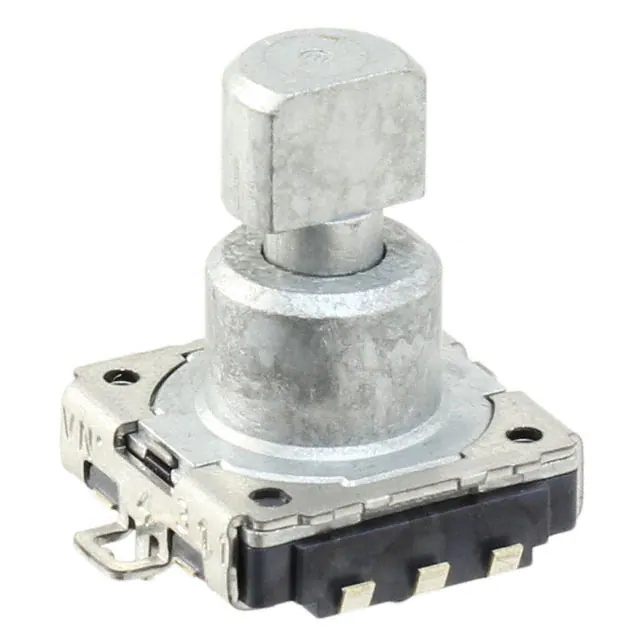

EVE-SBBFE516BROTARY ENCODER MECHANICAL 16PPR |
3,106 |
|
Datasheet | EVES | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | - | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
ECW1J-B16-BC0024LROTARY ENCODER MECHANICAL 24PPR |
1,471 |
|
Datasheet | ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
