Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MR040G030A064L00Bonded Radial Incremental Ring |
100 |
|
Datasheet | - | Tape & Box (TB) | Active | - | Incremental, Magnetic | - | - | - | - | No | No | - | - | - | - | - | - |
|
E6-2000-375-IE-S-D-D-3E6 OPTICAL KIT ENCODER |
100 |
|
Datasheet | - | Bulk | Active | Not Verified | Incremental | Quadrature with Index (Incremental) | 2000 | 4.5V ~ 5.5V | - | No | No | Surface Mount | Horizontal | Connector | - | - | - |
|
E30S4-100-3-T-24ENCODER 30MM 100PPR 12-24VDC |
100 |
|
Datasheet | E30S | Box | Active | Not Verified | Incremental | Totem Pole | 100 | 12V ~ 24V | 4mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
E50S8-200-3-T-24ENCODER 50MM 200PPR 12-24VDC |
1,267 |
|
Datasheet | E50S | Box | Active | Not Verified | Incremental | Totem Pole | 200 | 12V ~ 24V | 8mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E50S8-500-3-T-24ENCODER 50MM 500PPR 12-24VDC |
1,231 |
|
Datasheet | E50S | Box | Active | Not Verified | Incremental | Totem Pole | 500 | 12V ~ 24V | 8mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
ENC-1-2-T-24ENCODER WHEEL 100PPR 12-24VDC |
4,296 |
|
Datasheet | ENC | Box | Active | Not Verified | Incremental | Totem Pole | 100 | 12V ~ 24V | - | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
E40S6-2000-3-T-24ENCODER 40MM 2000PPR 12-24VDC |
4,058 |
|
Datasheet | E40 | Box | Active | Not Verified | Incremental | Totem Pole | 2000 | 12V ~ 24V | 6mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E40H8-1000-3-N-24ENCODER 40MM 1000PPR 12-24VDC |
3,417 |
|
Datasheet | E40H | Retail Package | Active | Not Verified | Incremental | NPN - Open Collector | 1000 | 12V ~ 24V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
E40HB10-1000-3-T-24ENCODER 40MM 1000PPR 12-24VDC |
4,315 |
|
Datasheet | E40H | Box | Active | Not Verified | Incremental | Totem Pole | 1000 | 12V ~ 24V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
LM10IC001AA10A00LM10, Incremental Encoder |
100 |
|
Datasheet | LM10 Readhead | Tape & Box (TB) | Active | - | Incremental, Magnetic | RS-422 | - | 5V | Codewheel Not Included | No | No | Chassis Mount | User Selectable | Connector | 20M | - | - |
|
|
EPM50S8-1013-B-PN-24-SENCODER 50MM 1013PPR 12-24VDC |
1,306 |
|
Datasheet | EPM50S | Retail Package | Active | Not Verified | Absolute | Binary (Absolute), NPN - Open Collector | 1013 | 12V ~ 24V | 8mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
PEC11R-4220F-S0012ROTARY ENCODER MECHANICAL 12PPR |
2,867 |
|
Datasheet | PEC11R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
AEAT-9922-10218BITS MAG ENC ON-OFF AXIS TR 10 |
2,341 |
|
Datasheet | - | Tape & Reel (TR) | Active | Not Verified | Magnetic | Commutation, PWM, SPI, Quadrature with index (Incremental) | Programmable | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | Vertical | SMD (SMT) Tab | 10K | - | - |
|

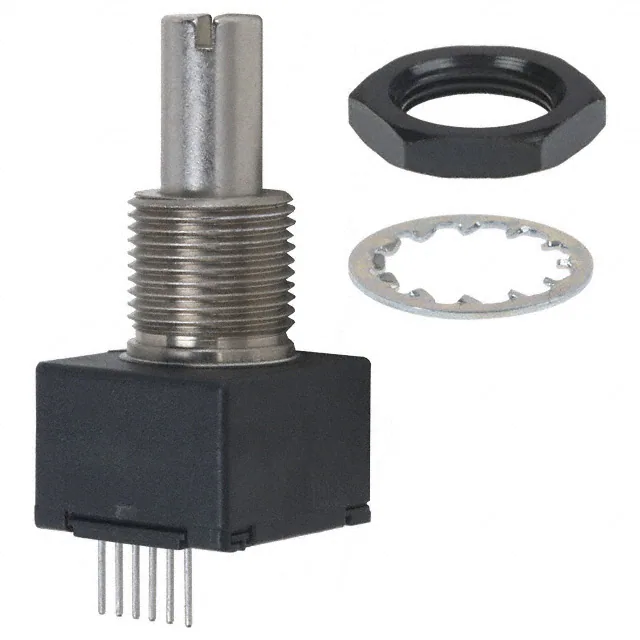

EM14R0D-R20-L064SROTARY ENCODER OPTICAL 64PPR |
3,729 |
|
Datasheet | EM14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 64 | 5V | 6mm Dia Slotted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
AEDR-9920-102AEDR-9920, 225 LPI INC ENCODER, |
189 |
|
- |
- | Tape & Reel (TR) | Active | Not Verified | Optical | Quadrature (Incremental) | Programmable | 3V ~ 3.6V | - | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | - | - | - |
|
ENA1D-B28-L00128LROTARY ENCODER OPTICAL 128PPR |
4,510 |
|
Datasheet | EN | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 128 | 5V | 1/4" Dia Round End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|
62S11-M5-PHROTARY ENCODER OPTICAL 32PPR |
3,776 |
|
Datasheet | 62S | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
EN10HT1212N5HH310 MM ENCODER |
487 |
|
Datasheet | EN10 | Bulk | Active | Not Verified | Incremental | Gray Code (Absolute) | 12 | 5V | Hole for Shaft | Yes | No | PCB, Through Hole | User Selectable | PC Pin | 100K | - | - |
|
288T232R161A1ROTARY ENCODER MECHANICAL 16PPR |
3,191 |
|
Datasheet | 288 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 1/4" Dia Round End | No | No | Panel Mount | Right Angle | Solder Lug | 50K | - | - |
|
482009514001MECHANICAL INCREMENTAL ENCODER S |
100 |
|
Datasheet | WS-ENTV | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 8 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | - | - | - |
