Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

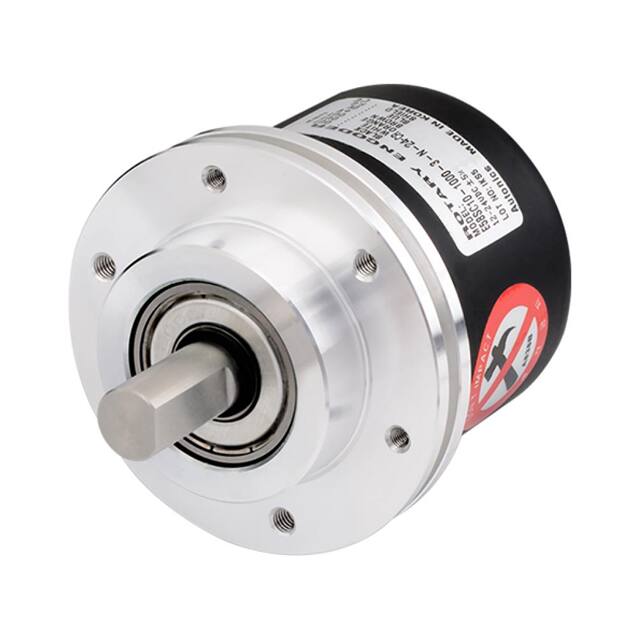

E58SC10-1-2-T-24-CRENCODER 58MM 1PPR 12-24VDC |
1,231 |
|
Datasheet | E58 | Box | Active | Not Verified | Incremental | Totem Pole | 1 | 12V ~ 24V | 10mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Connector | - | - | - |
|
E40HB6-2000-3-T-24ENCODER 40MM 2000PPR 12-24VDC |
3,149 |
|
Datasheet | E40H | Box | Active | Not Verified | Incremental | Totem Pole | 2000 | 12V ~ 24V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E40HB6-2000-3-N-24ENCODER 40MM 2000PPR 12-24VDC |
3,051 |
|
Datasheet | E40H | Box | Active | Not Verified | Incremental | NPN - Open Collector | 2000 | 12V ~ 24V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
E40H12-2000-3-N-24ENCODER 40MM 2000PPR 12-24VDC |
4,810 |
|
Datasheet | E40H | Box | Active | Not Verified | Incremental | NPN - Open Collector | 2000 | 12V ~ 24V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E40H6-2000-3-N-24ENCODER 40MM 2000PPR 12-24VDC |
1,897 |
|
Datasheet | E40H | Box | Active | Not Verified | Incremental | NPN - Open Collector | 2000 | 12V ~ 24V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E40H12-800-6-L-5ENCODER 40MM 800PPR 5VDC |
2,055 |
|
Datasheet | E40H | Box | Active | Not Verified | Incremental | Quadrature Line Driver with Index (Incremental) | 800 | 5V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
EP58SC10-360-3F-P-24ENCODER ABSOLUTE 58MM 12-24VDC |
3,587 |
|
Datasheet | EP58 | Box | Active | Not Verified | Absolute | Gray Code (Absolute), PNP - Open Collector | 360 | 12V ~ 24V | 10mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|

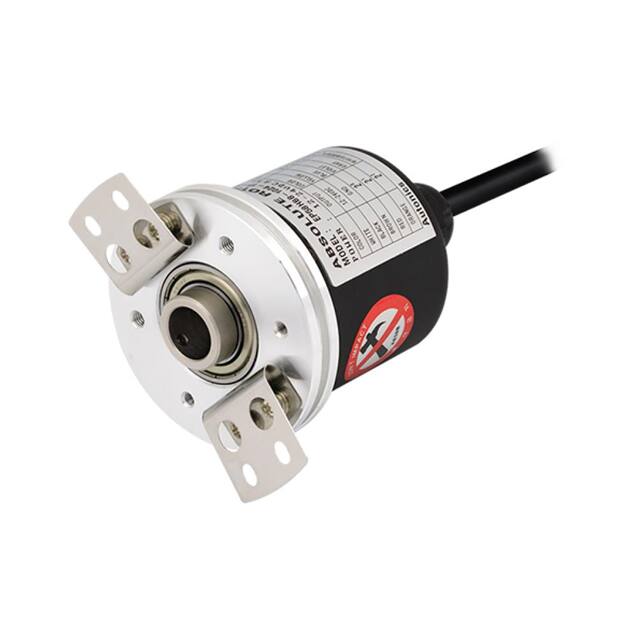

EP58HB8-360-3F-P-24ENCODER ABSOLUTE 58MM 12-24VDC |
2,768 |
|
Datasheet | EP58 | Box | Active | Not Verified | Absolute | Gray Code (Absolute), PNP - Open Collector | 360 | 12V ~ 24V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
ENP-101F-012-NENCODER ABSOLUTE 60MM 12-24VDC |
2,082 |
|
Datasheet | ENP | Box | Active | Not Verified | Absolute | BCD (Absolute), NPN - Open Collector | 12 | 12V ~ 24V | 10mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
ENP-110F-360-PENCODER ABSOLUTE 60MM 5VDC |
1,104 |
|
Datasheet | ENP | Box | Active | Not Verified | Absolute | BCD (Absolute), PNP - Open Collector | 360 | 5V | 10mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
NEG0001440NEG0001440 |
2,275 |
|
- |
* | Bulk | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
E40H8-5000-6-L-5ENCODER 40MM 5000PPR 5VDC |
3,398 |
|
Datasheet | E40H | Box | Active | Not Verified | Incremental | Quadrature Line Driver with Index (Incremental) | 5000 | 5V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
