DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Input (Min) | Voltage - Input (Max) | Number of Outputs | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Mounting Type | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STMGFW302405DC/DC CONVERTER +/-5V 20W |
3,378 |
|
Datasheet | STMGFW (30W) | Box | Active | Open Frame | 9V | 36V | 2 | 5V | -5V | - | - | 2A, 2A | 20W | 1.5 kV | ITE (Commercial) | 85% | -20°C ~ 70°C (With Derating) | Chassis Mount | 4.61" L x 2.05" W x 1.06" H (117.1mm x 52.1mm x 26.9mm) | CE | - |
|

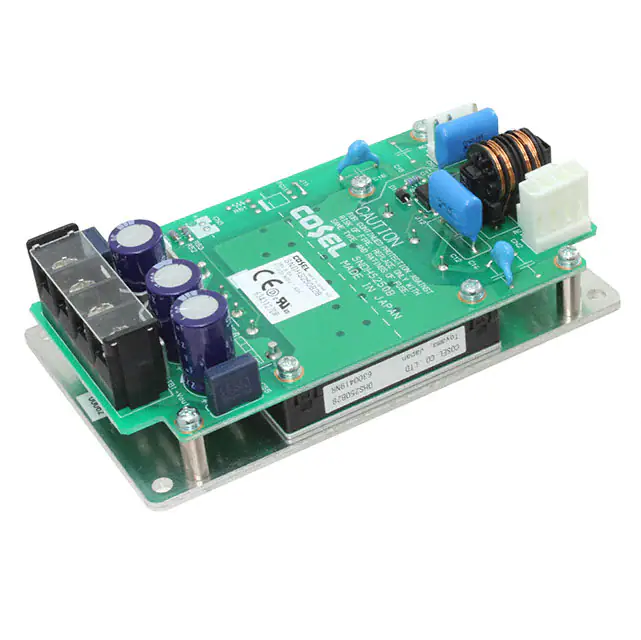

SNDHS250B28DC/DC CONVERTER 28V 252W |
1,533 |
|
Datasheet | SNDHS (250W) | Box | Active | Open Frame | 200V | 400V | 1 | 28V | - | - | - | 9A | 252W | - | ITE (Commercial) | 86% | -20°C ~ 95°C (With Derating) | Chassis Mount | 5.00" L x 2.42" W x 1.75" H (127.0mm x 61.5mm x 44.5mm) | CE, cURus | - |
|

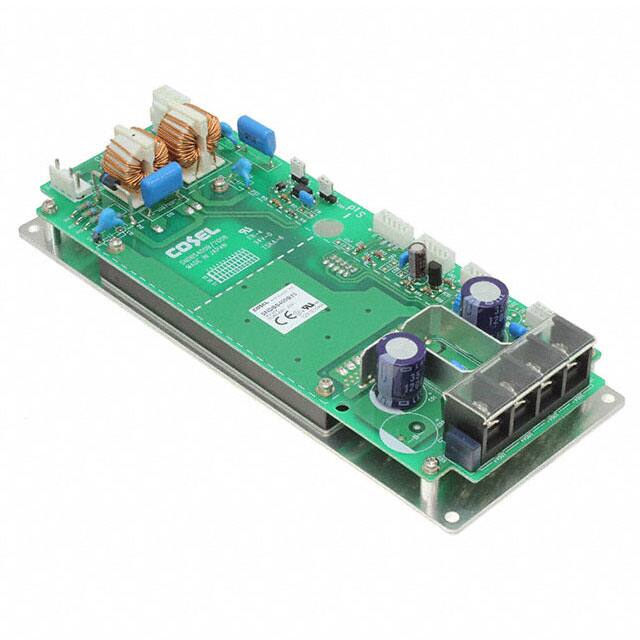

SNDBS700B24DC/DC CONVERTER 24V 696W |
4,667 |
|
Datasheet | SNDBS (700W) | Box | Active | Open Frame | 200V | 400V | 1 | 24V | - | - | - | 29A | 696W | - | ITE (Commercial) | 90% | -20°C ~ 95°C (With Derating) | Chassis Mount | 8.75" L x 3.51" W x 1.75" H (222.3mm x 89.2mm x 44.5mm) | CE, cURus | - |
|
SNDBS700B48DC/DC CONVERTER 48V 696W |
1,735 |
|
Datasheet | SNDBS (700W) | Box | Active | Open Frame | 200V | 400V | 1 | 48V | - | - | - | 14.5A | 696W | - | ITE (Commercial) | 91% | -20°C ~ 95°C (With Derating) | Chassis Mount | 8.75" L x 3.51" W x 1.75" H (222.3mm x 89.2mm x 44.5mm) | CE, cURus | - |
|
|
STMGFS154812DC/DC CONVERTER 12V 16W |
3,527 |
|
Datasheet | STMGFS (15W) | Box | Active | Open Frame | 18V | 76V | 1 | 12V | - | - | - | 1.3A | 16W | 1.5 kV | ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Chassis Mount | 3.66" L x 2.05" W x 1.06" H (93.0mm x 52.1mm x 26.9mm) | CE | - |
|
|
STMGFS152405-JDC/DC CONVERTER 5V 15W |
3,183 |
|
Datasheet | STMGFS (15W) | Box | Active | Open Frame | 9V | 36V | 1 | 5V | - | - | - | 3A | 15W | 1.5 kV | ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Chassis Mount | 3.66" L x 2.05" W x 1.06" H (93.0mm x 52.1mm x 26.9mm) | CE | - |
|
|
STMGFS152405-RDC/DC CONVERTER 5V 15W |
4,037 |
|
Datasheet | STMGFS (15W) | Box | Active | Open Frame | 9V | 36V | 1 | 5V | - | - | - | 3A | 15W | 1.5 kV | ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Chassis Mount | 3.66" L x 2.05" W x 1.06" H (93.0mm x 52.1mm x 26.9mm) | CE | - |
|
|
STMGFS152412-JDC/DC CONVERTER 12V 16W |
1,637 |
|
Datasheet | STMGFS (15W) | Box | Active | Open Frame | 9V | 36V | 1 | 12V | - | - | - | 1.3A | 16W | 1.5 kV | ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Chassis Mount | 3.66" L x 2.05" W x 1.06" H (93.0mm x 52.1mm x 26.9mm) | CE | - |
|
|
STMGFS152412-RDC/DC CONVERTER 12V 16W |
3,074 |
|
Datasheet | STMGFS (15W) | Box | Active | Open Frame | 9V | 36V | 1 | 12V | - | - | - | 1.3A | 16W | 1.5 kV | ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Chassis Mount | 3.66" L x 2.05" W x 1.06" H (93.0mm x 52.1mm x 26.9mm) | CE | - |
|
|
STMGFS152415-JDC/DC CONVERTER 15V 15W |
1,460 |
|
Datasheet | STMGFS (15W) | Box | Active | Open Frame | 9V | 36V | 1 | 15V | - | - | - | 1A | 15W | 1.5 kV | ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Chassis Mount | 3.66" L x 2.05" W x 1.06" H (93.0mm x 52.1mm x 26.9mm) | CE | - |
