DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Input (Min) | Voltage - Input (Max) | Number of Outputs | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Mounting Type | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STMGFW302415DC/DC CONVERTER +/-15V 30W |
1,486 |
|
Datasheet | STMGFW (30W) | Box | Active | Open Frame | 9V | 36V | 2 | 15V | -15V | - | - | 1A, 1A | 30W | 1.5 kV | ITE (Commercial) | 87% | -20°C ~ 70°C (With Derating) | Chassis Mount | 4.61" L x 2.05" W x 1.06" H (117.1mm x 52.1mm x 26.9mm) | CE | - |
|

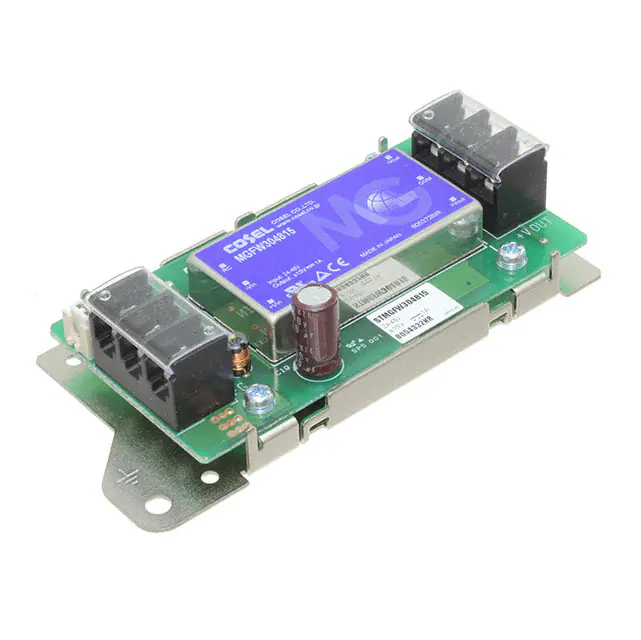

STMGFW304815DC/DC CONVERTER +/-15V 30W |
1,039 |
|
Datasheet | STMGFW (30W) | Box | Active | Open Frame | 18V | 76V | 2 | 15V | -15V | - | - | 1A, 1A | 30W | 1.5 kV | ITE (Commercial) | 87% | -20°C ~ 70°C (With Derating) | Chassis Mount | 4.61" L x 2.05" W x 1.06" H (117.1mm x 52.1mm x 26.9mm) | CE | - |
|
|
STMGFW304812DC/DC CONVERTER +/-12V 30W |
4,794 |
|
Datasheet | STMGFW (30W) | Box | Active | Open Frame | 18V | 76V | 2 | 12V | -12V | - | - | 1.25A, 1.25A | 30W | 1.5 kV | ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Chassis Mount | 4.61" L x 2.05" W x 1.06" H (117.1mm x 52.1mm x 26.9mm) | CE | - |
|
|
STMGFS152405DC/DC CONVERTER 5V 15W |
3,602 |
|
Datasheet | STMGFS (15W) | Box | Active | Open Frame | 9V | 36V | 1 | 5V | - | - | - | 3A | 15W | 1.5 kV | ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Chassis Mount | 3.66" L x 2.05" W x 1.06" H (93.0mm x 52.1mm x 26.9mm) | CE | - |
|
|
STMGFS152415DC/DC CONVERTER 15V 15W |
3,420 |
|
Datasheet | STMGFS (15W) | Box | Active | Open Frame | 9V | 36V | 1 | 15V | - | - | - | 1A | 15W | 1.5 kV | ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Chassis Mount | 3.66" L x 2.05" W x 1.06" H (93.0mm x 52.1mm x 26.9mm) | CE | - |
|
|
STMGFW152405DC/DC CONVERTER +/-5V 15W |
4,947 |
|
Datasheet | STMGFW (15W) | Box | Active | Open Frame | 9V | 36V | 2 | 5V | -5V | - | - | 1.5A, 1.5A | 15W | 1.5 kV | ITE (Commercial) | 84% | -20°C ~ 70°C (With Derating) | Chassis Mount | 3.66" L x 2.05" W x 1.06" H (93.0mm x 52.1mm x 26.9mm) | CE | - |
|
|
STMGFS304812DC/DC CONVERTER 12V 30W |
2,925 |
|
Datasheet | STMGFS (30W) | Box | Active | Open Frame | 18V | 76V | 1 | 12V | - | - | - | 2.5A | 30W | 1.5 kV | ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Chassis Mount | 4.61" L x 2.05" W x 1.06" H (117.1mm x 52.1mm x 26.9mm) | CE | - |
|
|
STMGFW302412DC/DC CONVERTER +/-12V 30W |
2,887 |
|
Datasheet | STMGFW (30W) | Box | Active | Open Frame | 9V | 36V | 2 | 12V | -12V | - | - | 1.25A, 1.25A | 30W | 1.5 kV | ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Chassis Mount | 4.61" L x 2.05" W x 1.06" H (117.1mm x 52.1mm x 26.9mm) | CE | - |
|
|
STMGFS302412DC/DC CONVERTER 12V 30W |
4,491 |
|
Datasheet | STMGFS (30W) | Box | Active | Open Frame | 9V | 36V | 1 | 12V | - | - | - | 2.5A | 30W | 1.5 kV | ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Chassis Mount | 4.61" L x 2.05" W x 1.06" H (117.1mm x 52.1mm x 26.9mm) | CE | - |
|
STMGFS804805DC/DC CONVERTER 5V 80W |
2,069 |
|
Datasheet | STMG | Bulk | Active | Enclosed | 18V | 76V | 1 | 5V | - | - | - | 16A | 80W | 1.5 kV | ITE (Commercial) | 90% | -20°C ~ 70°C (With Derating) | Chassis Mount | 4.61" L x 2.05" W x 1.14" H (117.1mm x 52.1mm x 29.0mm) | CE | 62368-1 |
