DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Input (Min) | Voltage - Input (Max) | Number of Outputs | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Mounting Type | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

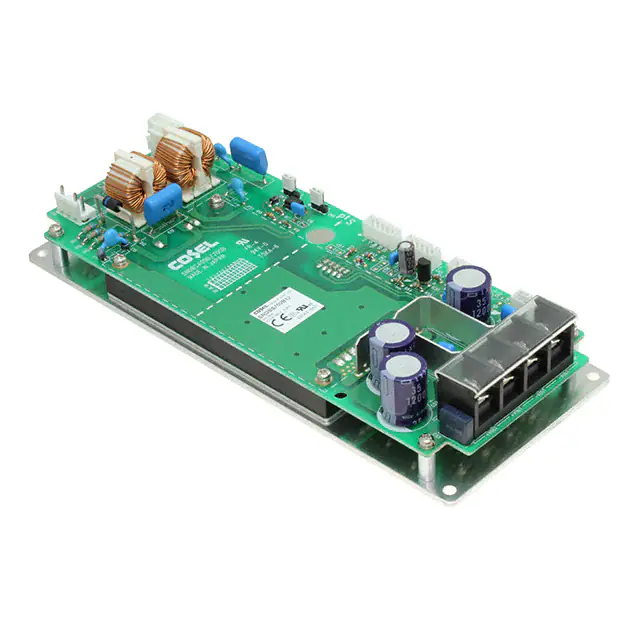

SNDBS700B12DC/DC CONVERTER 12V 696W |
2,036 |
|
Datasheet | SNDBS (700W) | Box | Active | Open Frame | 200V | 400V | 1 | 12V | - | - | - | 58A | 696W | - | ITE (Commercial) | 90% | -20°C ~ 95°C (With Derating) | Chassis Mount | 8.75" L x 3.51" W x 1.75" H (222.3mm x 89.2mm x 44.5mm) | CE, cURus | - |
|
SNDBS700B28DC/DC CONVERTER 28V 700W |
4,764 |
|
Datasheet | SNDBS (700W) | Box | Active | Open Frame | 200V | 400V | 1 | 28V | - | - | - | 25A | 700W | - | ITE (Commercial) | 90.5% | -20°C ~ 95°C (With Derating) | Chassis Mount | 8.75" L x 3.51" W x 1.75" H (222.3mm x 89.2mm x 44.5mm) | CE, cURus | - |
|
|
SNDBS700B36DC/DC CONVERTER 36V 702W |
4,712 |
|
Datasheet | SNDBS (700W) | Box | Active | Open Frame | 200V | 400V | 1 | 36V | - | - | - | 19.5A | 702W | - | ITE (Commercial) | 90% | -20°C ~ 95°C (With Derating) | Chassis Mount | 8.75" L x 3.51" W x 1.75" H (222.3mm x 89.2mm x 44.5mm) | CE, cURus | - |
