DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Input (Min) | Voltage - Input (Max) | Number of Outputs | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Mounting Type | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

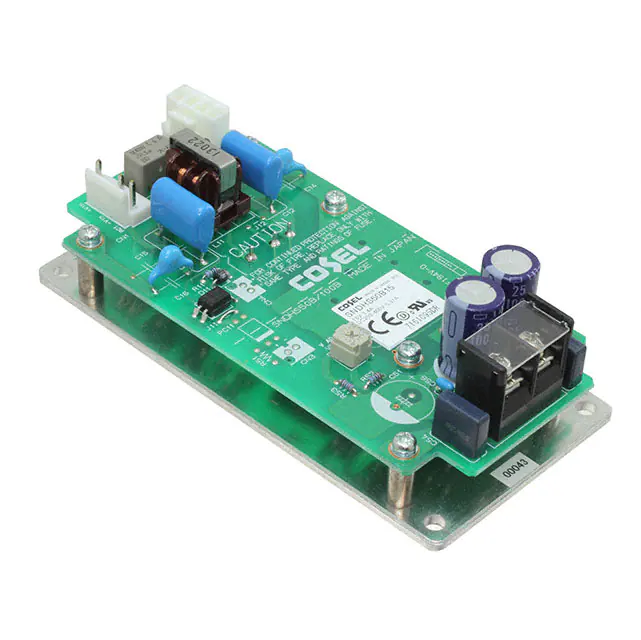

SNDHS100B15DC/DC CONVERTER 15V 101W |
2,580 |
|
Datasheet | SNDHS (100W) | Box | Active | Open Frame | 200V | 400V | 1 | 15V | - | - | - | 6.7A | 101W | - | ITE (Commercial) | 85% | -20°C ~ 95°C (With Derating) | Chassis Mount | 5.00" L x 2.42" W x 1.75" H (127.0mm x 61.5mm x 44.5mm) | CE, cURus | - |
|
STMGFS30483R3DC/DC CONVERTER 3.3V 25W |
2,295 |
|
Datasheet | STMGFS (30W) | Box | Active | Open Frame | 18V | 76V | 1 | 3.3V | - | - | - | 7.5A | 25W | 1.5 kV | ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Chassis Mount | 4.61" L x 2.05" W x 1.06" H (117.1mm x 52.1mm x 26.9mm) | CE | - |
|

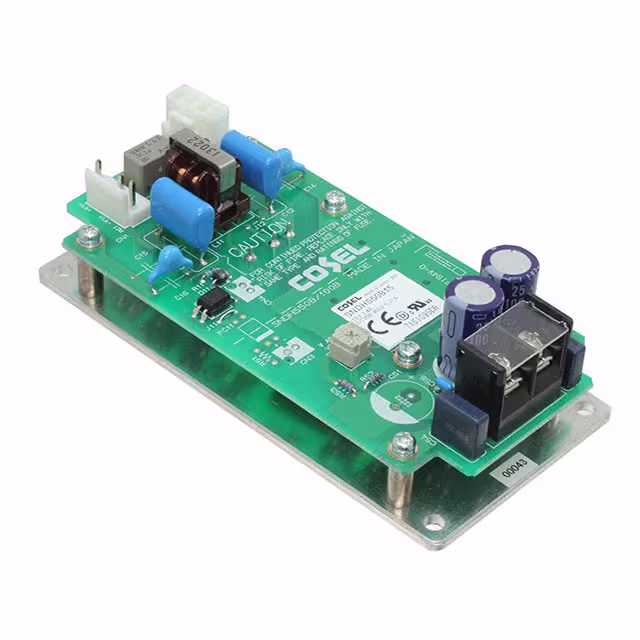

SNDHS50B03DC/DC CONVERTER 3.3V 33W |
2,654 |
|
Datasheet | SNDHS (50W) | Box | Active | Open Frame | 200V | 400V | 1 | 3.3V | - | - | - | 10A | 33W | - | ITE (Commercial) | 76% | -20°C ~ 95°C (With Derating) | Chassis Mount | 5.00" L x 2.42" W x 1.75" H (127.0mm x 61.5mm x 44.5mm) | CE, cURus | - |
|

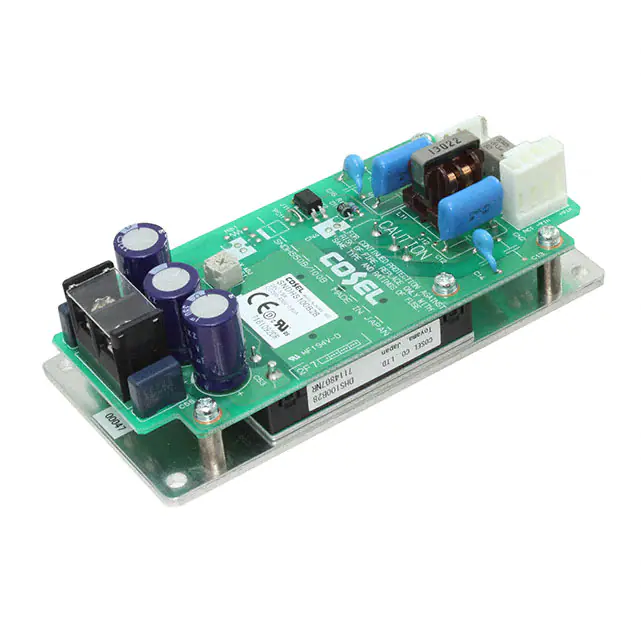

SNDHS100B05DC/DC CONVERTER 5V 100W |
4,068 |
|
Datasheet | SNDHS (100W) | Box | Active | Open Frame | 200V | 400V | 1 | 5V | - | - | - | 20A | 100W | - | ITE (Commercial) | 81% | -20°C ~ 95°C (With Derating) | Chassis Mount | 5.00" L x 2.42" W x 1.75" H (127.0mm x 61.5mm x 44.5mm) | CE, cURus | - |
|

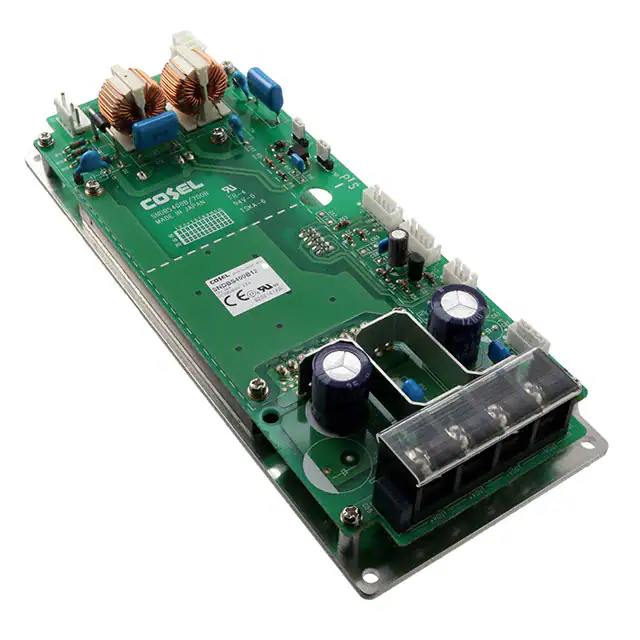

SNDBS400B12DC/DC CONVERTER 12V 408W |
1,148 |
|
Datasheet | SNDBS (400W) | Box | Obsolete | Open Frame | 200V | 400V | 1 | 12V | - | - | - | 34A | 408W | - | ITE (Commercial) | 87% | -20°C ~ 80°C (With Derating) | Chassis Mount | 8.75" L x 3.51" W x 1.75" H (222.3mm x 89.2mm x 44.5mm) | CE, cURus | - |
|
|
STMGFS15243R3DC/DC CONVERTER 3.3V 13W |
1,343 |
|
Datasheet | STMGFS (15W) | Box | Active | Open Frame | 9V | 36V | 1 | 3.3V | - | - | - | 4A | 13W | 1.5 kV | ITE (Commercial) | 87% | -20°C ~ 70°C (With Derating) | Chassis Mount | 3.66" L x 2.05" W x 1.06" H (93.0mm x 52.1mm x 26.9mm) | CE | - |
|
|
STMGFS154805DC/DC CONVERTER 5V 15W |
4,274 |
|
Datasheet | STMGFS (15W) | Box | Active | Open Frame | 18V | 76V | 1 | 5V | - | - | - | 3A | 15W | 1.5 kV | ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Chassis Mount | 3.66" L x 2.05" W x 1.06" H (93.0mm x 52.1mm x 26.9mm) | CE | - |
|
|
STMGFS152412DC/DC CONVERTER 12V 16W |
3,013 |
|
Datasheet | STMGFS (15W) | Box | Active | Open Frame | 9V | 36V | 1 | 12V | - | - | - | 1.3A | 16W | 1.5 kV | ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Chassis Mount | 3.66" L x 2.05" W x 1.06" H (93.0mm x 52.1mm x 26.9mm) | CE | - |
|
|
STMGFW152415DC/DC CONVERTER +/-15V 15W |
4,184 |
|
Datasheet | STMGFW (15W) | Box | Active | Open Frame | 9V | 36V | 2 | 15V | -15V | - | - | 500mA, 500mA | 15W | 1.5 kV | ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Chassis Mount | 3.66" L x 2.05" W x 1.06" H (93.0mm x 52.1mm x 26.9mm) | CE | - |
|
|
STMGFS302405DC/DC CONVERTER 5V 30W |
4,186 |
|
Datasheet | STMGFS (30W) | Box | Active | Open Frame | 9V | 36V | 1 | 5V | - | - | - | 6A | 30W | 1.5 kV | ITE (Commercial) | 90% | -20°C ~ 70°C (With Derating) | Chassis Mount | 4.61" L x 2.05" W x 1.06" H (117.1mm x 52.1mm x 26.9mm) | CE | - |
