Data Acquisition (DAQ)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Bus Connection | Front Connection | Number of Inputs and Type | Input Range | Input Resolution | Number of Outputs and Type | Output Range | Output Resolution | Bidirectional Channels | Counter/Timers | Sampling Rate (Per Second) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

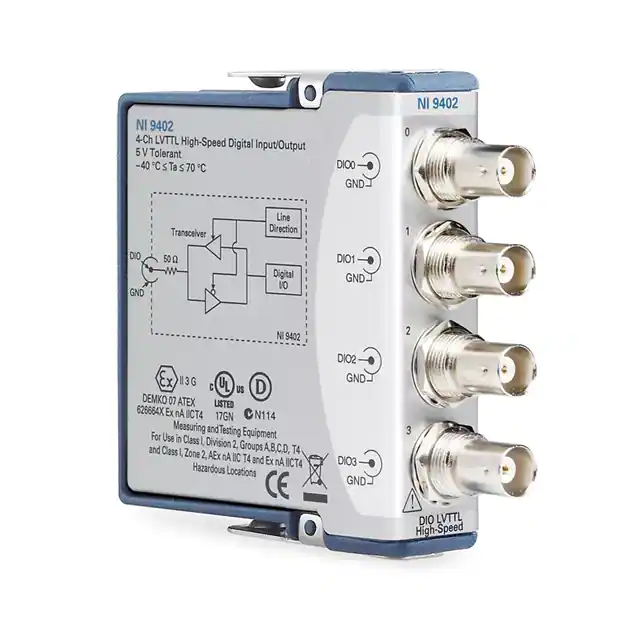

779987-01MODULE DIGITAL I/O |
1,784 |
|
Datasheet | C | Box | Active | Digital I/O | Module | - | BNC | 4 - Digital | - | - | 4 - Digital | - | - | 4 | - | - |
|
779051-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
2,352 |
|
Datasheet | - | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 8 - Analog (Single-Ended, 4 - Differential), 12 - Digital | ±20V | 12 Bits | 2 - Analog, 12 - Digital | 0 ~ 5V | 12 Bits | 12 | 1 | 10k - Multiplexed |
|
779351-01MODULE MULTIFUNCTION I/O |
3,256 |
|
Datasheet | C | Box | Active | Multifunction I/O | Module | - | - | 8 - Digital | - | - | 8 - Digital | - | - | 8 | - | - |
|

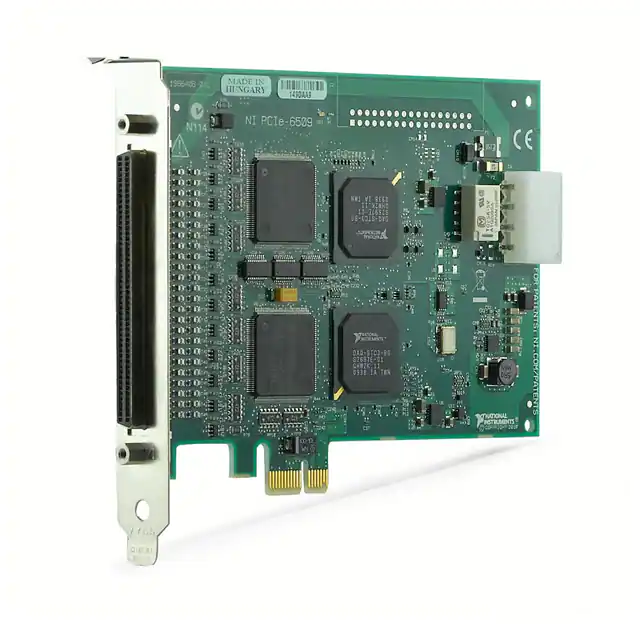

779976-01DAQ DEVICE DIGITAL I/O PCIE |
2,471 |
|
- |
- | Box | Active | Digital I/O | DAQ Device | PCIe | SCSI | 96 - Digital | -0.5 ~ 5.5V | - | 96 - Digital | -0.5 ~ 5.5V | - | 96 | - | - |
|

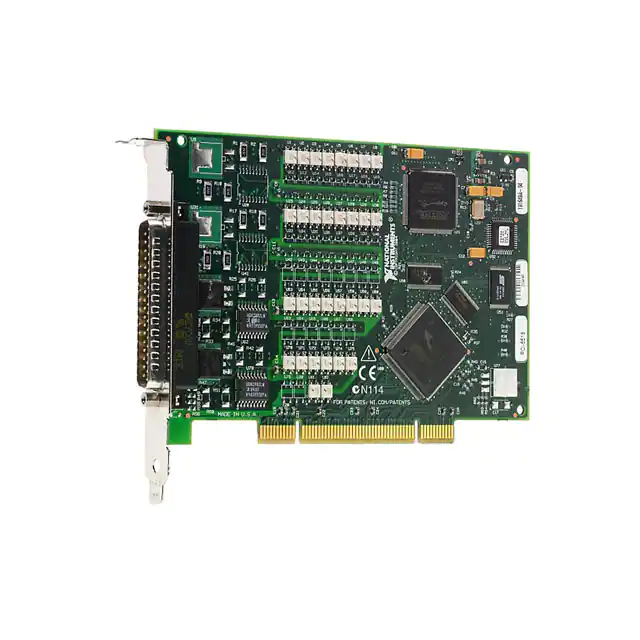

779084-01DAQ DEVICE DIGITAL I/O PCI |
4,292 |
|
Datasheet | - | Box | Active | Digital I/O | DAQ Device | PCI | D-Sub | 16 - Digital | ±30V | - | 16 - Digital | 0 ~ 30V | - | 16 | - | - |
|

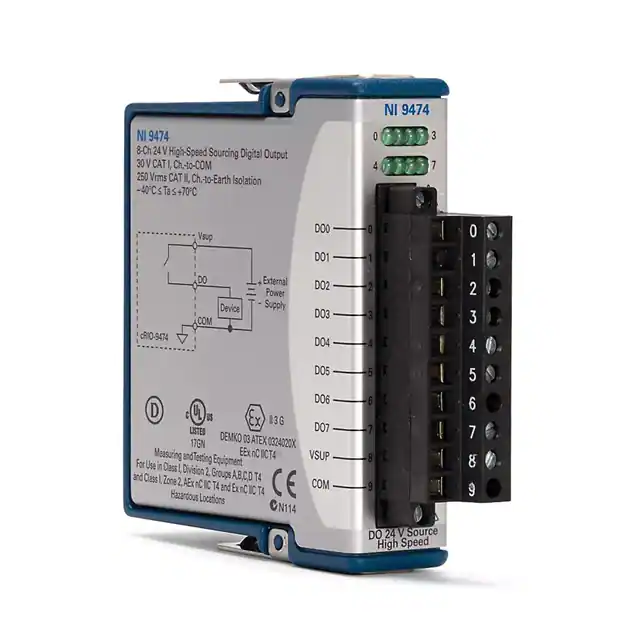

779003-01DAQ DEVICE DIGITAL OUTPUT |
1,794 |
|
Datasheet | C | Box | Active | Digital Output | DAQ Device | - | - | - | - | - | 8 - Digital | 5 ~ 30V | - | - | - | - |
|

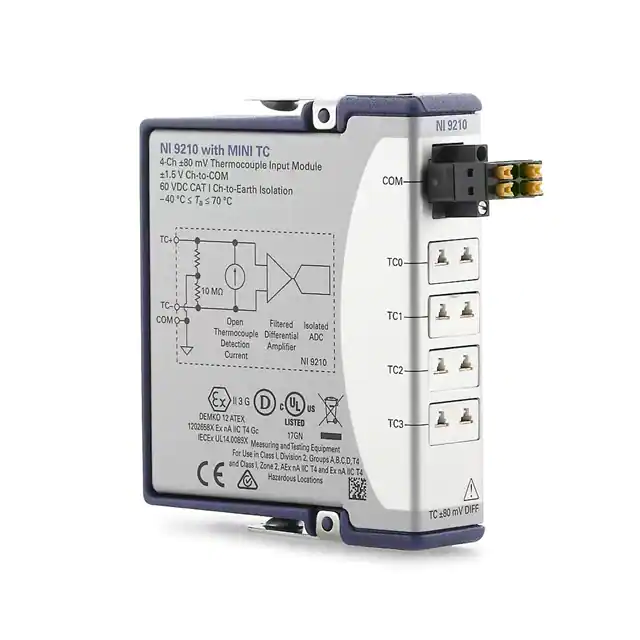

784788-01DAQ DEVICE TEMPERATURE DGTL INP |
4,648 |
|
Datasheet | C | Box | Active | Temperature | DAQ Device | - | - | 4 - Digital | - | - | - | - | - | - | - | - |
|

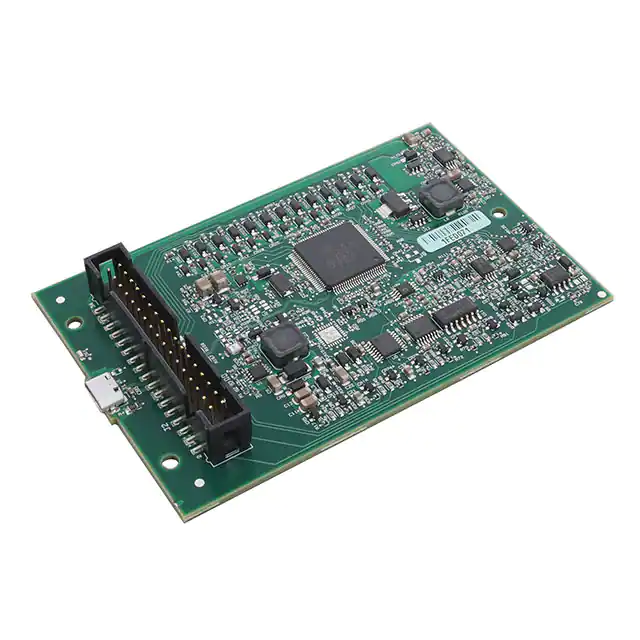

782607-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
2,248 |
|
- |
- | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | - | 8 - Analog (Single-Ended, 4 - Differential), 13 - Digital | ±10V | 16 Bits | 2 - Analog, 13 - Digital | ±10V | 16 Bits | 13 | 1 | 50k - Multiplexed |
|
782606-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
1,376 |
|
- |
- | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 8 - Analog (Single-Ended, 4 - Differential), 13 - Digital | ±10V | 16 Bits | 2 - Analog, 13 - Digital | ±10V | 16 Bits | 13 | 1 | 50k - Multiplexed |
|
785043-01DAQ DEVICE DIGITAL INPUT |
1,476 |
|
Datasheet | C | Box | Active | Digital Input | DAQ Device | - | - | 4 - Digital | - | - | - | - | - | - | - | - |
