Data Acquisition (DAQ)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Bus Connection | Front Connection | Number of Inputs and Type | Input Range | Input Resolution | Number of Outputs and Type | Output Range | Output Resolution | Bidirectional Channels | Counter/Timers | Sampling Rate (Per Second) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

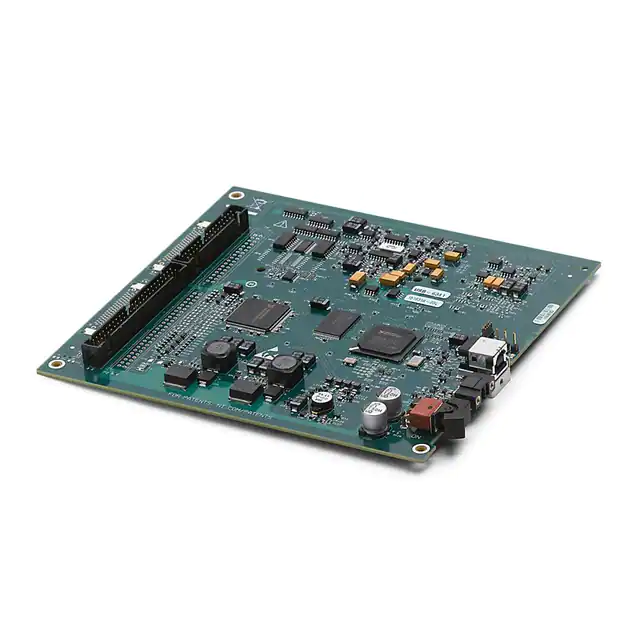

782250-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
4,324 |
|
Datasheet | X | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Generic (OEM) | 16 - Analog (Single-Ended, 8 - Differential), 16 - Digital | ±0.2V, ±1V, ±5V, ±10V | 16 Bits | 2 - Analog, 8 - Digital | ±10V | 16 Bits | 8 | 4 | 500k - Multiplexed |
|

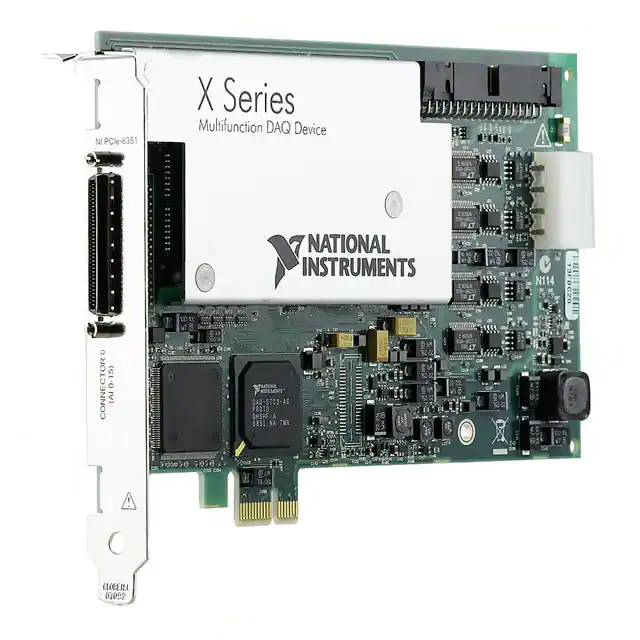

781048-01DAQ DEVICE MULTIFUNCT I/O PCIE |
3,782 |
|
Datasheet | X | Box | Active | Multifunction I/O | DAQ Device | PCIe | VHDCI | 16 - Analog (Single-Ended, 8 - Differential), 8 - Digital | ±10V | 16 Bits | 2 - Analog, 8 - Digital | ±10V | 16 Bits | 8 | 4 | 1M - Multiplexed |
|

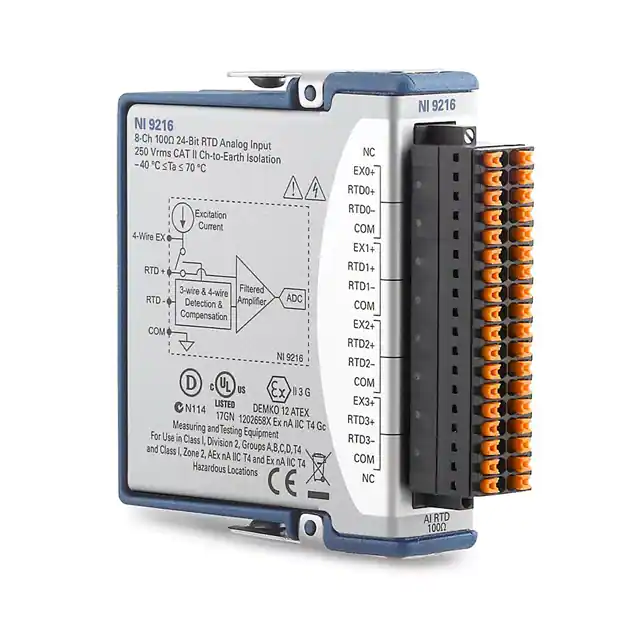

785186-01DAQ DEVICE DIGITAL INPUT |
137 |
|
Datasheet | C | Box | Active | Temperature | DAQ Device | - | - | 8 - Digital | - | - | - | - | - | - | - | - |
|
781438-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
3,892 |
|
Datasheet | - | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 16 - Analog (Single-Ended, 8 - Differential), 16 - Digital | ±10V | 16 Bits | 2 - Analog, 8 - Digital | ±10V | 16 Bits | 8 | 4 | 500k - Multiplexed |
|

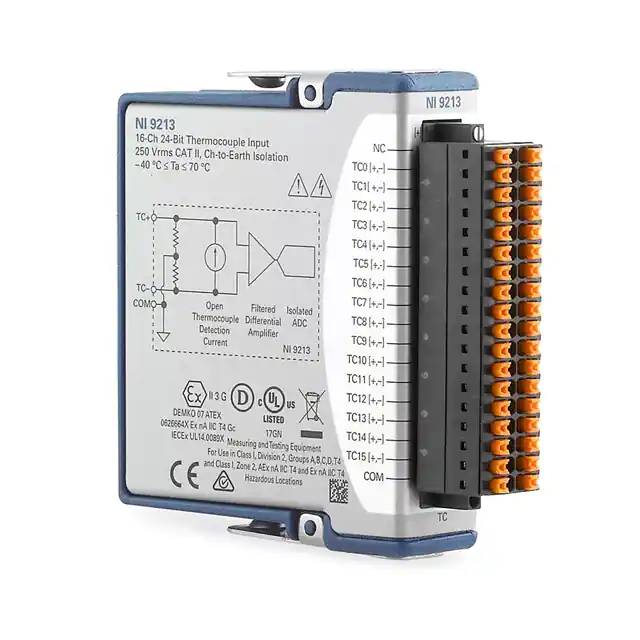

785185-01DAQ DEVICE TEMPERATURE |
4,421 |
|
Datasheet | C | Box | Active | Temperature | DAQ Device | - | Spring Terminal | 16 - Analog (Differential) | - | 24 Bits | - | - | - | - | - | 75 |
|

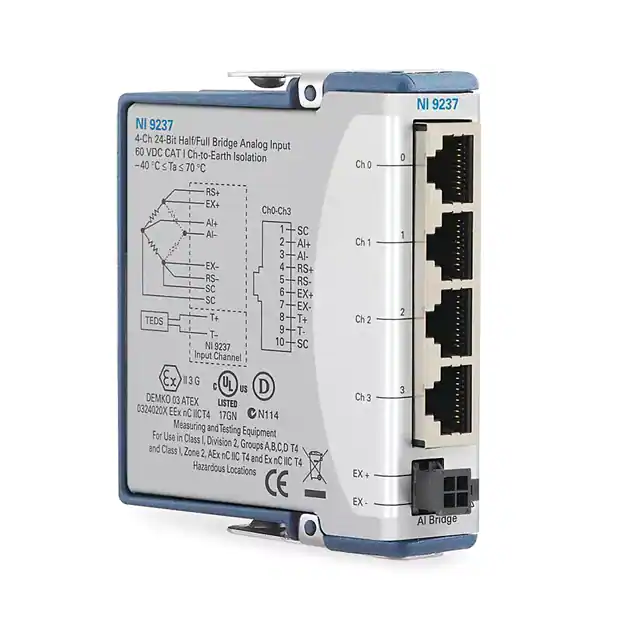

779521-01MODULE ANALOG INPUT |
3,720 |
|
- |
C | Box | Active | Analog Input | Module | - | - | 4 - Analog | - | 24 Bits | - | - | - | - | - | 50k - Multiplexed |
|

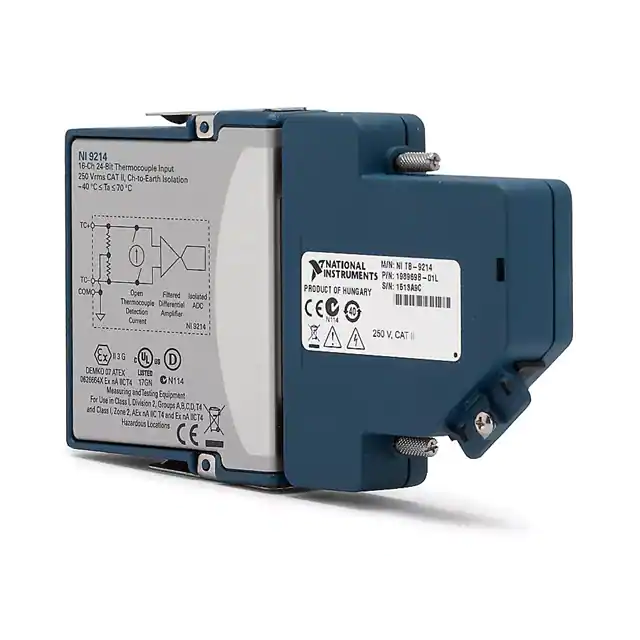

781510-01DAQ DEVICE DIGITAL INPUT |
1,134 |
|
Datasheet | C | Box | Active | Temperature | DAQ Device | - | - | 16 - Analog | ±78.125mV | 24 Bits | - | - | - | - | - | 68 - Multiplexed |
|

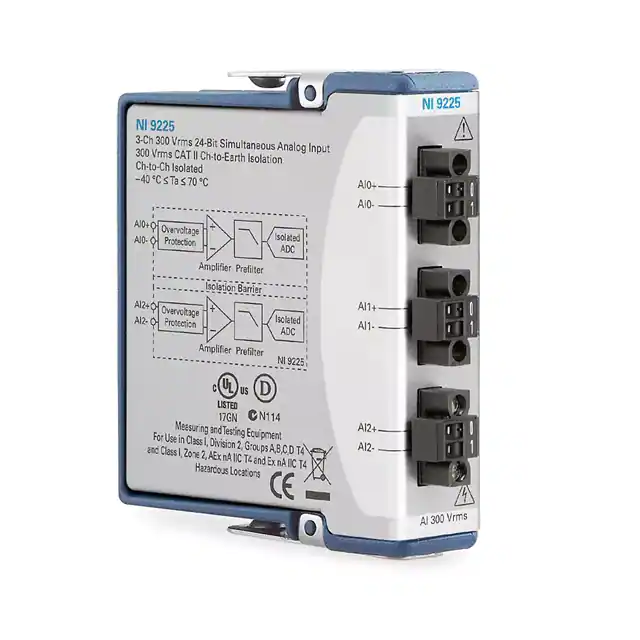

780159-01DAQ DEVICE ANALOG INPUT |
1,089 |
|
Datasheet | C | Box | Active | Analog Input | DAQ Device | - | - | 3 - Analog | - | 24 Bits | - | - | - | - | - | 50k - Simultaneous |
|

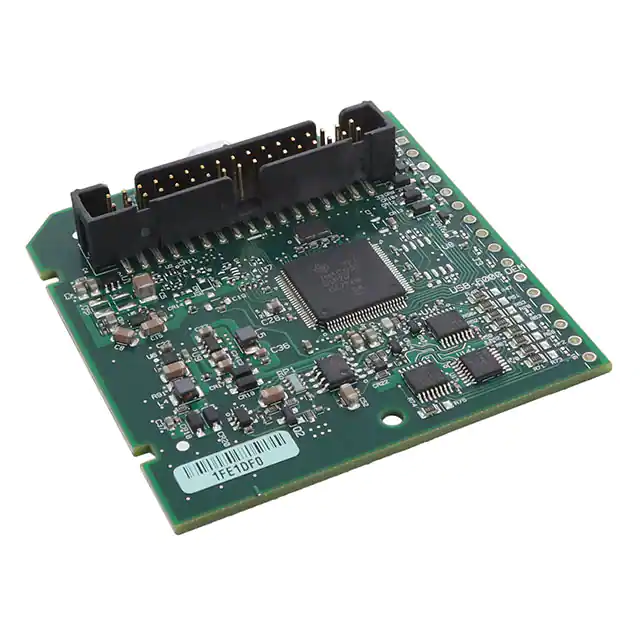

782603-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
1,997 |
|
- |
- | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | - | 8 - Analog (Single-Ended), 4 - Digital | ±10V | 12 Bits | 4 - Digital | - | - | 4 | 1 | 10k - Multiplexed |
|

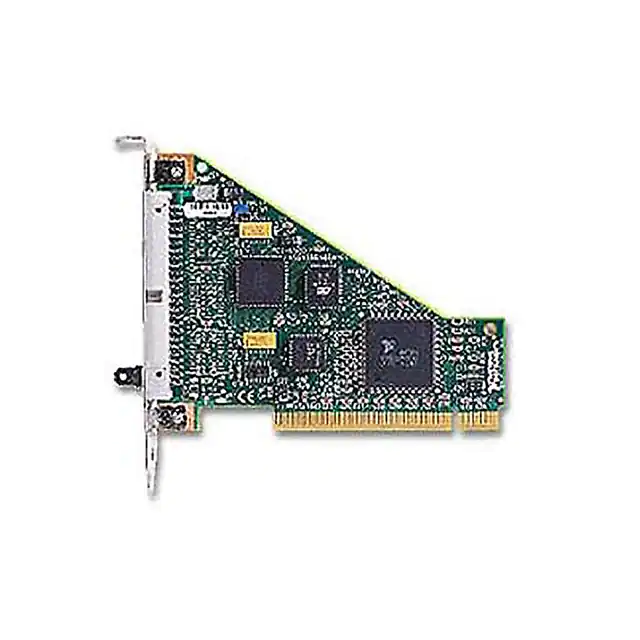

777690-01DAQ DEVICE DIGITAL I/O PCI |
3,320 |
|
- |
- | Box | Active | Digital I/O | DAQ Device | PCI | Screw Terminal | 24 - Digital | - | - | 24 - Digital | - | - | 24 | - | - |
