Data Acquisition (DAQ)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Bus Connection | Front Connection | Number of Inputs and Type | Input Range | Input Resolution | Number of Outputs and Type | Output Range | Output Resolution | Bidirectional Channels | Counter/Timers | Sampling Rate (Per Second) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

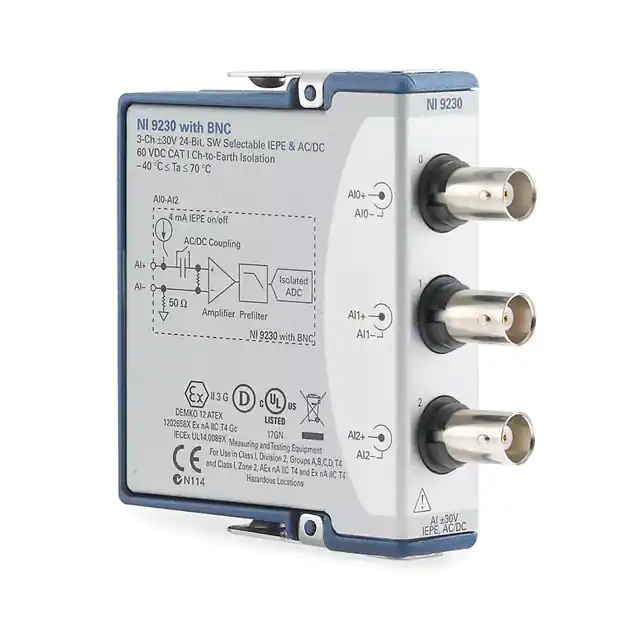

784396-01DAQ DEVICE ANALOG INPUT |
3,698 |
|
- |
C | Box | Active | Analog Input | DAQ Device | - | - | 3 - Analog | ±30V | - | - | - | - | - | - | - |
|

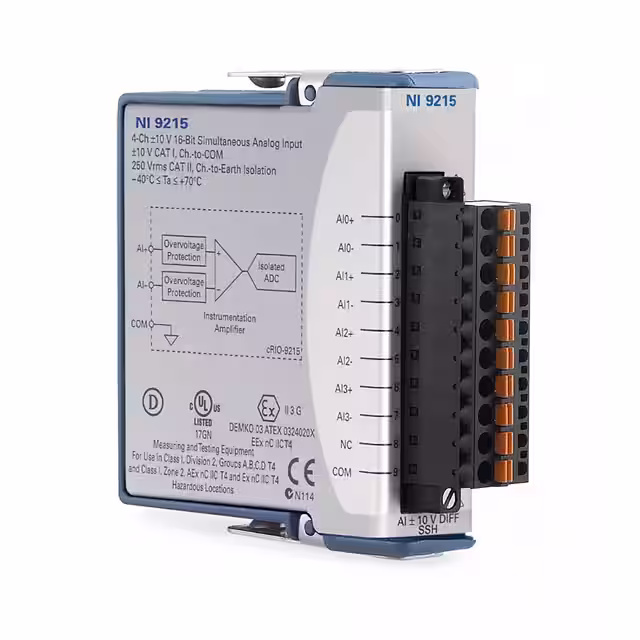

783739-01DAQ DEVICE DIGITAL INPUT |
3,404 |
|
- |
C | Box | Active | Voltage | Module | - | - | 4 - Analog | ±10V | 16 Bits | - | - | - | - | - | 100k - Simultaneous |
|
781030-02DAQ DEVICE MULTIFUNCTION I/O |
1,231 |
|
Datasheet | C | Box | Active | Multifunction I/O | Module | - | - | 16 - Digital | 0 ~ 30V | - | 16 - Digital | 6 ~ 30V | - | - | - | - |
|
779138-01MODULE ANALOG INPUT |
4,978 |
|
- |
C | Box | Active | Analog Input | Module | - | - | 4 - Analog | ±10V | 16 Bits | - | - | - | - | - | - |
|
865662-01DAQ DEVICE ANALOG INPUT USB 2.0 |
4,807 |
|
Datasheet | - | Box | Active | Temperature | Modular Systems | USB 2.0 | Mini-TC | 4 - Analog (Differential) | ±80mV | 24 Bits | - | - | - | - | - | 14 |
|

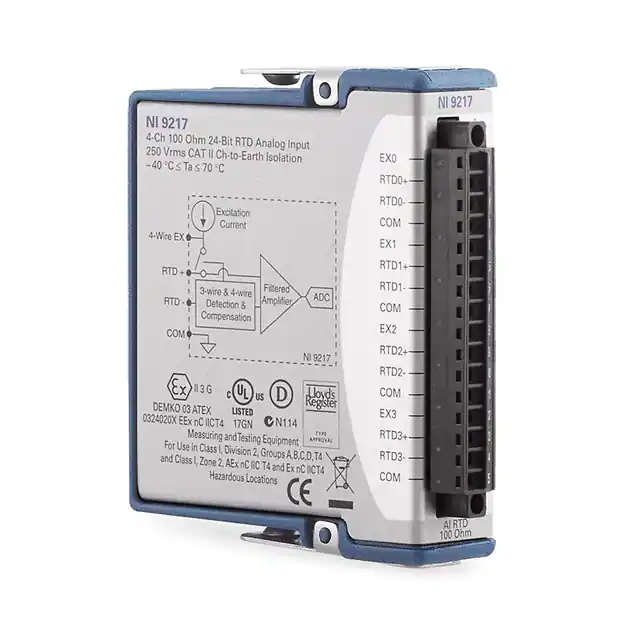

779592-01DAQ DEVICE TEMPERATURE |
1,517 |
|
Datasheet | C | Box | Active | Temperature | DAQ Device | - | - | 4 - Analog | - | 24 Bits | - | - | - | - | - | 400 - Multiplexed |
|
778965-01DAQ DEVICE DIGITAL I/O PXI |
1,038 |
|
- |
NI 651x | Box | Active | Digital I/O | DAQ Device | PXI | - | 32 - Digital | - | - | 32 - Digital | - | - | - | - | - |
|

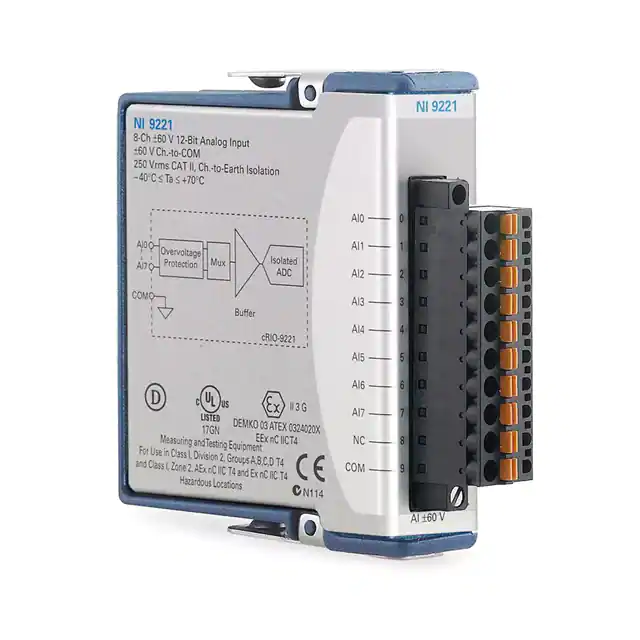

783732-01DAQ DEVICE ANALOG INPUT |
2,182 |
|
Datasheet | C | Box | Active | Voltage | Module | - | - | 8 - Analog | ±60V | 12 Bits | - | - | - | - | - | 800k - Multiplexed |
|
|
778969-01DAQ DEVICE DIGITAL I/O PXI |
4,437 |
|
- |
NI 651x | Box | Active | Digital I/O | DAQ Device | PXI | SCSI | - | - | - | 64 - Digital | - | - | - | - | - |
|

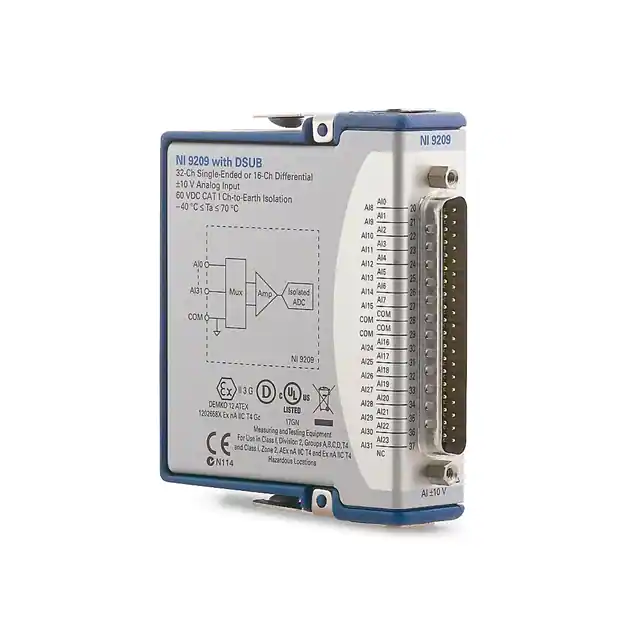

783729-01DAQ DEVICE ANALOG INPUT |
2,234 |
|
Datasheet | C | Box | Active | Voltage | Module | - | - | 16 - Analog | ±10V | - | - | - | - | - | - | 500 - Multiplexed |
