Data Acquisition (DAQ)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Bus Connection | Front Connection | Number of Inputs and Type | Input Range | Input Resolution | Number of Outputs and Type | Output Range | Output Resolution | Bidirectional Channels | Counter/Timers | Sampling Rate (Per Second) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

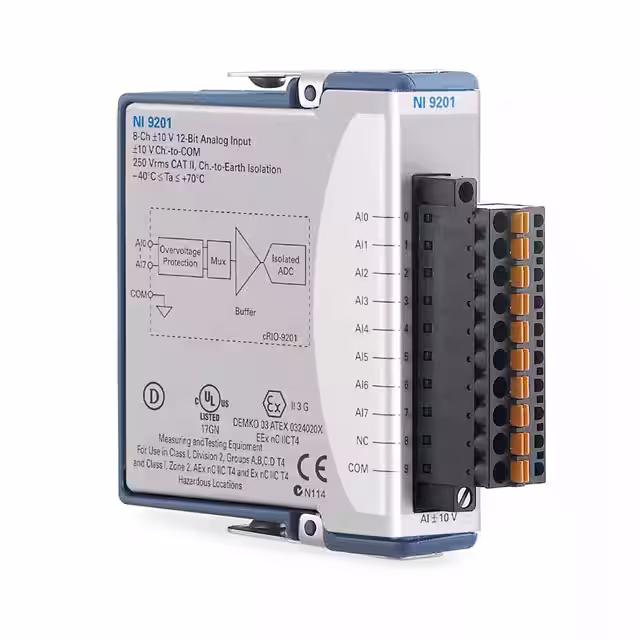

783730-01DAQ DEVICE ANALOG INPUT |
139 |
|
Datasheet | C | Box | Active | Voltage | Module | - | - | 8 - Analog | ±10V | 12 Bits | - | - | - | - | - | 500k - Multiplexed |
|
782608-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
1,335 |
|
Datasheet | - | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 8 - Analog (Single-Ended, 4 - Differential), 13 - Digital | ±10V | 16 Bits | 2 - Analog, 13 - Digital | ±10V | 16 Bits | 13 | 1 | 100k - Multiplexed |
|

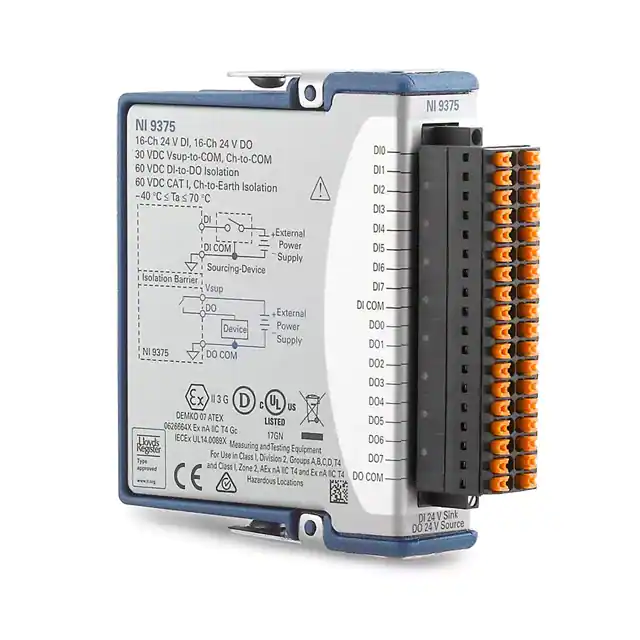

785192-01DAQ DEVICE DIGITAL I/O |
119 |
|
Datasheet | C | Box | Active | Digital I/O | DAQ Device | - | - | 32 - Digital | 30V | - | - | - | - | - | - | - |
|
779517-01MODULE DIGITAL OUTPUT |
2,673 |
|
- |
C | Box | Active | Digital Output | Module | - | - | - | - | - | 32 - Digital | 0 ~ 60V | - | - | - | - |
|
779516-01DAQ DEVICE ANALOG INPUT |
3,591 |
|
- |
C | Box | Active | Analog Input | DAQ Device | - | - | 8 - Analog | - | 16 Bits | - | - | - | - | - | 200k - Simultaneous |
|

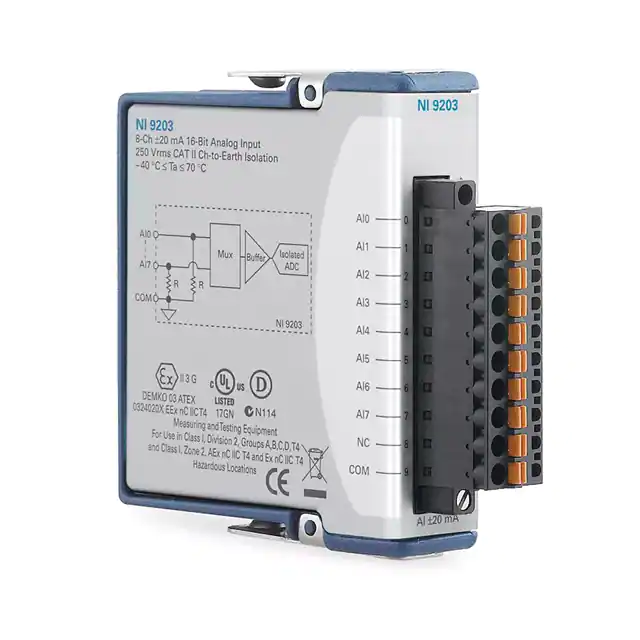

783731-01DAQ DEVICE ANALOG INPUT |
1,187 |
|
- |
C | Box | Active | Current | Module | - | - | 8 - Analog | 0 ~ 20mA | 16 Bits | - | - | - | - | - | 200k - Multiplexed |
|

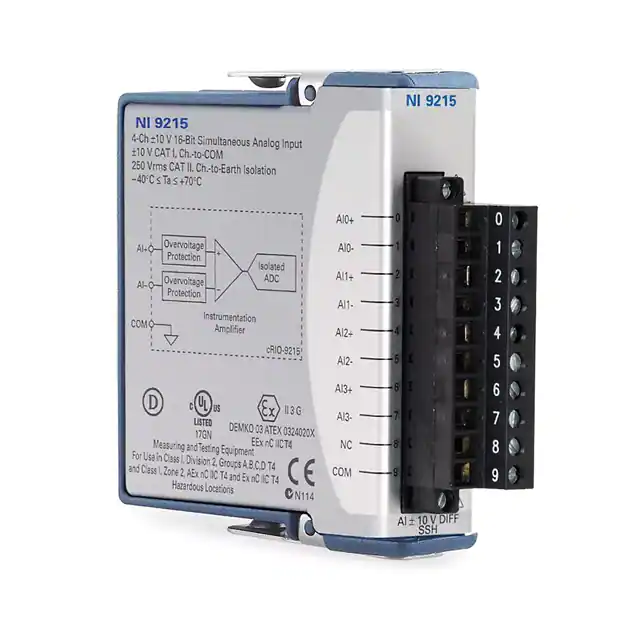

779011-01DAQ DEVICE ANALOG INPUT |
3,306 |
|
Datasheet | C | Box | Active | Analog Input | DAQ Device | - | - | 4 - Analog | ±10V | 16 Bits | - | - | - | - | - | 100k - Simultaneous |
|
789887-01USB-6421, 16-BIT, 250KS/S (16AI, |
4,252 |
|
- |
mioDAQ | Box | Active | Multifunction I/O | DAQ Device | USB C | Spring Terminal | 16 - Analog (Single-Ended, 8 - Differential) | ±200mV, ±1V, ±5V, ±10V | 16 Bits | 2 - Analog | ±10V | 16 Bits | 16 | 4 | 250k - Multiplexed |
|
779014-01DAQ DEVICE ANALOG INPUT |
2,026 |
|
- |
C | Box | Active | Analog Input | DAQ Device | - | - | 8 - Analog | ±60V | 12 Bits | - | - | - | - | - | 800k - Multiplexed |
|
|
779357-01MODULE VOLTAGE DGTL I/O |
3,163 |
|
Datasheet | C | Box | Active | Voltage | Module | - | D-Sub | 32 - Analog (Single-Ended, 16 - Differential), 1 - Digital | ±10V | 16 Bits | 1 - Digital | - | - | - | - | - |
