Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7080-0841COAX CBL SYNAPSE TO 2.92MM |
2,327 |
|
Datasheet | - | Bag | Active | Synapse to 2.92mm | Synapse Jack | Female | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|

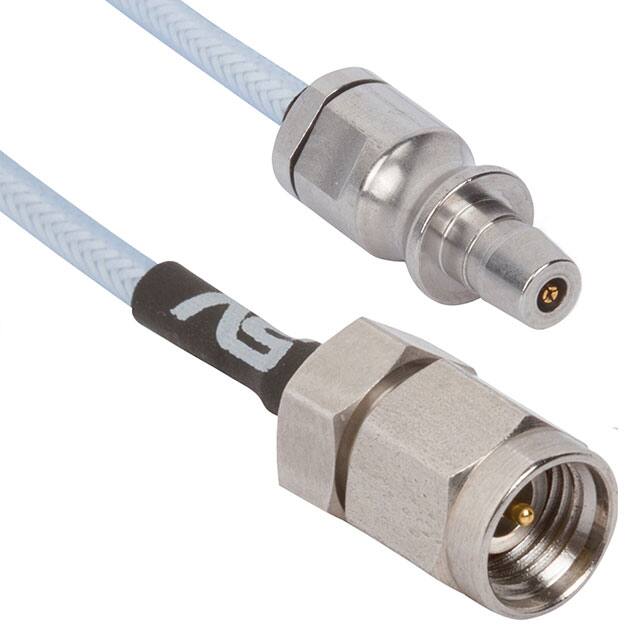

7080-0843COAX CBL SYNAPSE TO 2.92MM |
2,521 |
|
Datasheet | - | Bag | Active | Synapse to 2.92mm | Synapse Jack | Female | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFlex-405 | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7016-0070COAX CBL SMPM TO 2.4MM |
2,172 |
|
Datasheet | - | Bulk | Active | SMPM to 2.4mm | SMPM Jack | Female | Free Hanging (In-Line) | - | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | TFlex-405 | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|

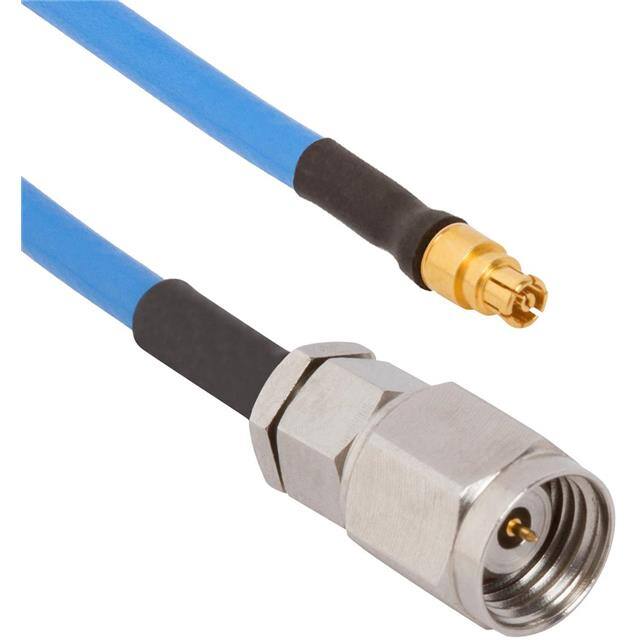

7016-0071COAX CBL SMPM TO 2.4MM |
4,755 |
|
Datasheet | - | Bulk | Active | SMPM to 2.4mm | SMPM Jack | Female | Free Hanging (In-Line) | - | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFlex-405 | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7016-0060COAX CBL 2.4MM TO 2.92MM |
2,913 |
|
Datasheet | - | Bulk | Active | 2.4mm to 2.92mm | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|

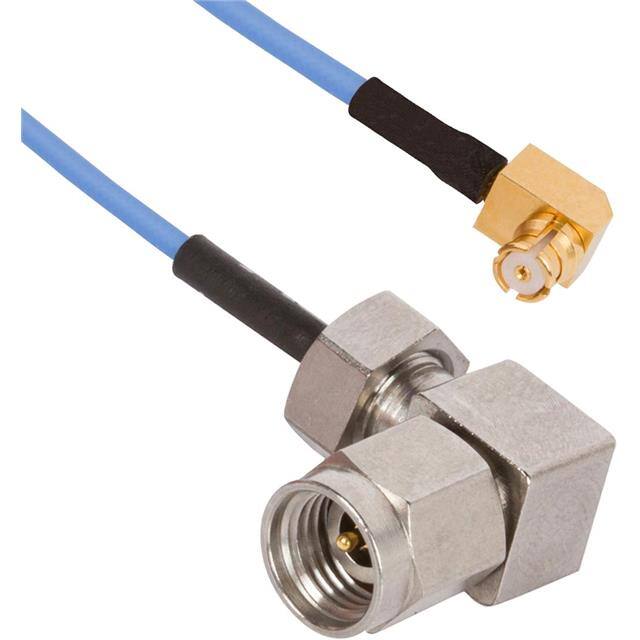

7015-0992COAX CBL SMP TO 2.92MM |
4,279 |
|
Datasheet | - | Bulk | Active | SMP to 2.92mm | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | 2.92mm Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 26.5 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7015-0993COAX CBL SMP TO 2.92MM |
1,083 |
|
Datasheet | - | Bulk | Active | SMP to 2.92mm | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | 2.92mm Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 26.5 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7080-0840COAX CBL SYNAPSE TO 2.92MM |
1,412 |
|
- |
- | Bag | Active | Synapse to 2.92mm | Synapse Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7080-0842COAX CBL SYNAPSE TO 2.92MM |
4,575 |
|
Datasheet | - | Bag | Active | Synapse to 2.92mm | Synapse Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFlex-405 | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
