Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

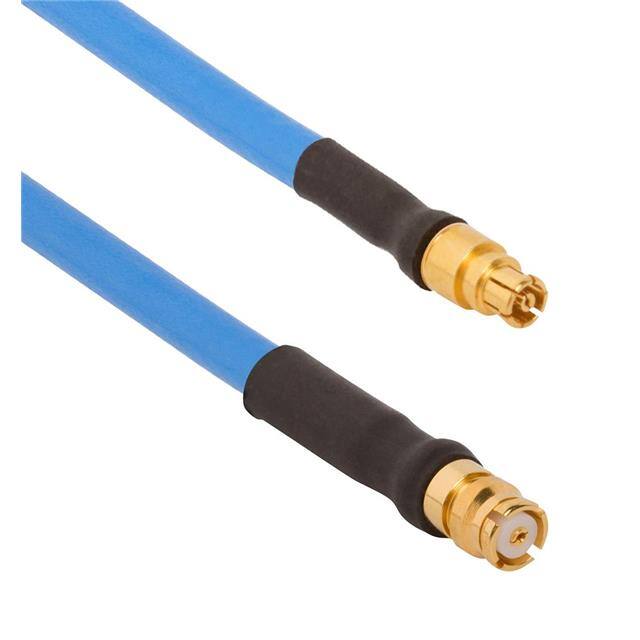

7012-1299COAX CBL SMP TO SMPM |
4,772 |
|
Datasheet | - | Bag | Active | SMP to SMPM | SMP Jack | Female | Free Hanging (In-Line) | - | SMPM Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | TFlex-405 | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7032-7239COAX CBL SMA TO SMPM |
1,495 |
|
Datasheet | - | Bag | Active | SMA to SMPM | SMPM Jack, Right Angle | Female | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7029-3244COAX CBL SMA TO SMPM |
4,049 |
|
Datasheet | - | Bulk | Active | SMA to SMPM | SMPM Jack | Female | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|

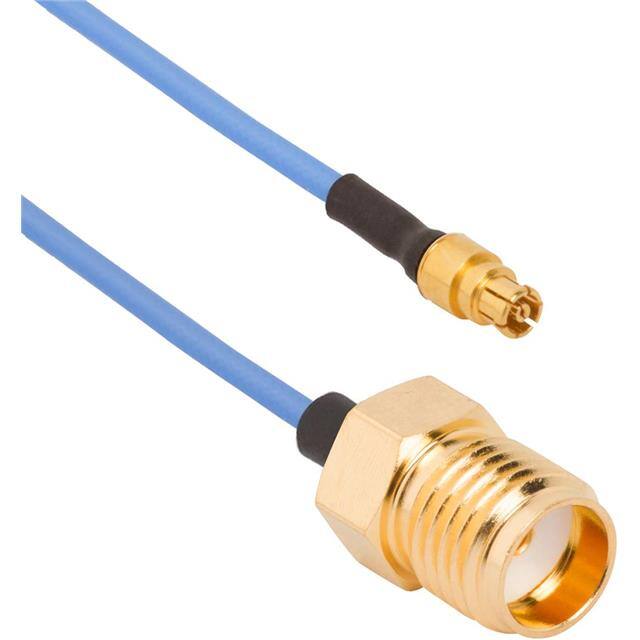

7029-2560COAX CBL SMA TO SMPM |
2,649 |
|
Datasheet | - | Bag | Active | SMA to SMPM | SMA Jack | Female | Free Hanging (In-Line) | - | SMPM Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|

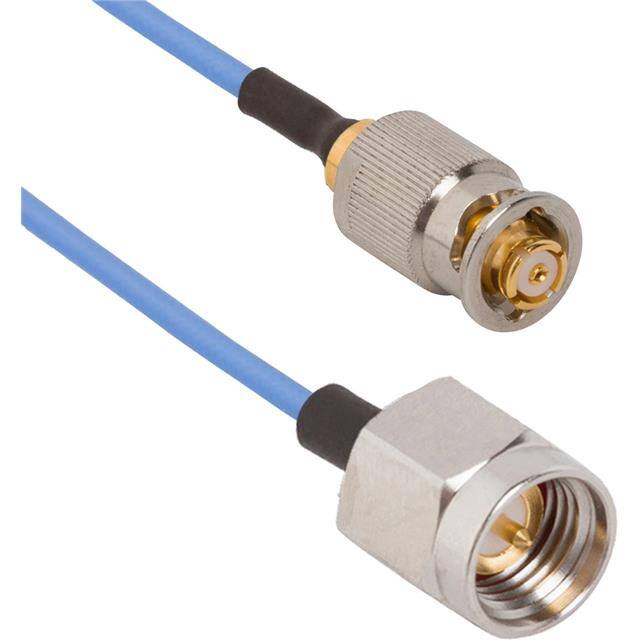

7012-1301COAX CBL SMA TO SMP |
3,954 |
|
Datasheet | - | Bag | Active | SMA to SMP | SMA Plug | Male | Free Hanging (In-Line) | - | SMP Jack | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|

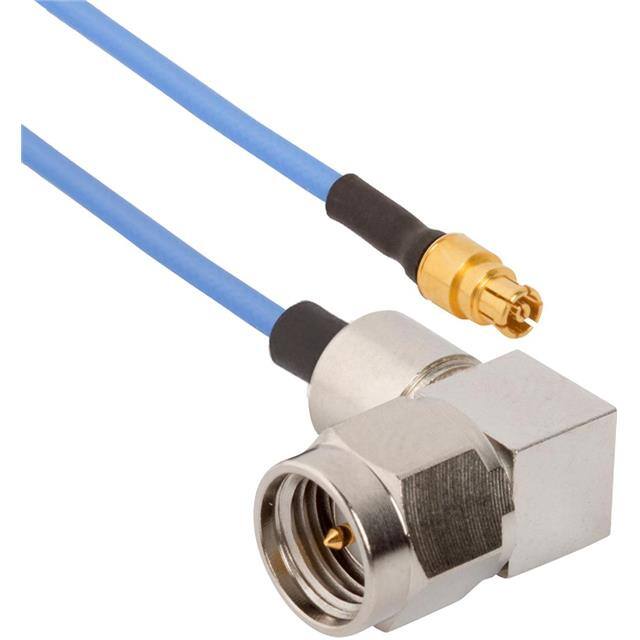

7029-3245COAX CBL SMA TO SMPM |
4,984 |
|
Datasheet | - | Bulk | Active | SMA to SMPM | SMPM Jack | Female | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|

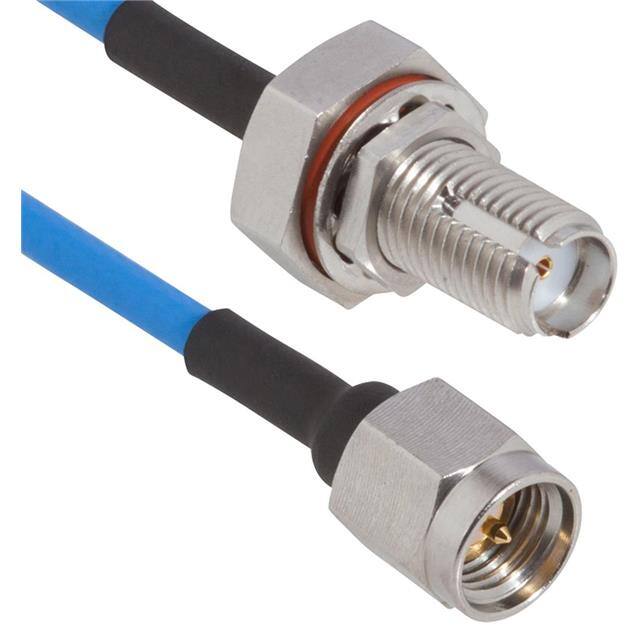

7029-3410COAX CBL SMA TO SMA |
1,475 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7029-3413COAX CBL SMA TO SMA |
3,202 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|

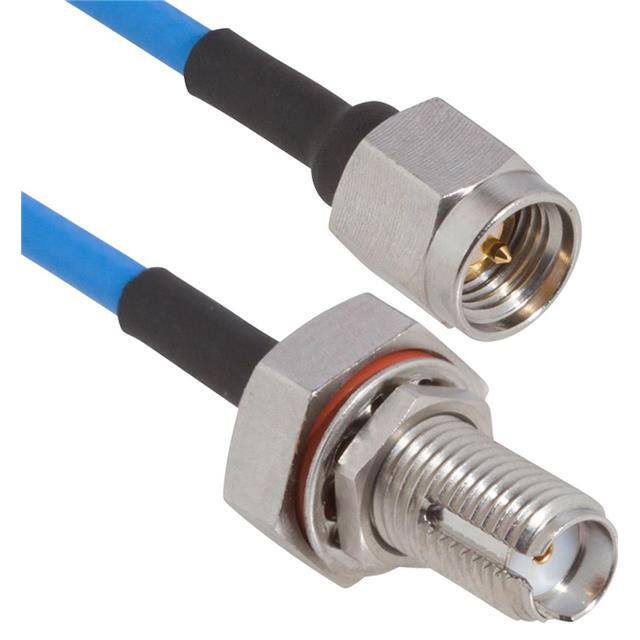

7029-3411COAX CBL SMA TO SMA |
3,360 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7012-1064COAX CBL SMP TO 2.92MM |
4,316 |
|
Datasheet | - | Bulk | Active | SMP to 2.92mm | SMP Jack | Female | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
