Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7038-0253COAX CBL SMPS TO SMPS |
2,312 |
|
Datasheet | - | Bulk | Active | SMPS to SMPS | SMPS Jack | Female | Free Hanging (In-Line) | - | SMPS Jack | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 65 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7015-1050COAX CBL 2.92MM TO 2.92MM |
4,669 |
|
Datasheet | - | Bag | Active | 2.92mm to 2.92mm | 2.92mm Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFlex-405 | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|

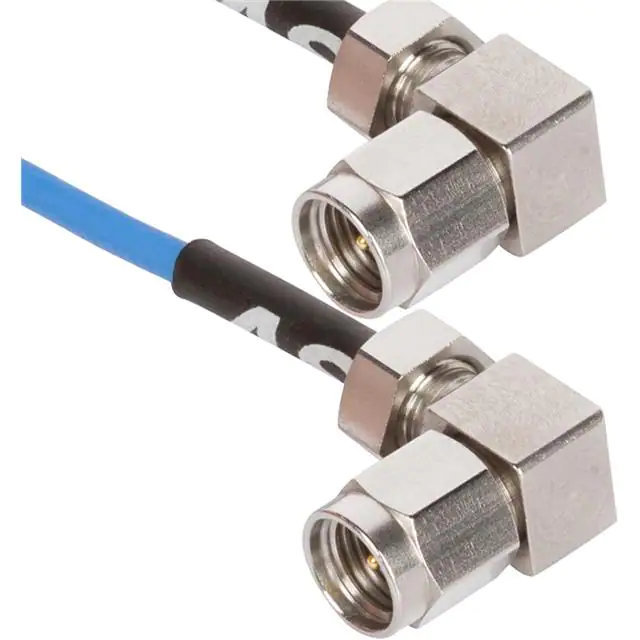

7015-1001COAX CBL 2.92MM TO 2.92MM |
3,479 |
|
Datasheet | - | Bulk | Active | 2.92mm to 2.92mm | 2.92mm Plug, Right Angle | Male | Free Hanging (In-Line) | - | 2.92mm Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFlex-405 | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7032-7777COAX CBL SMA TO SMPM |
2,339 |
|
Datasheet | - | Bag | Active | SMA to SMPM | SMPM Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 26.5 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7016-0059COAX CBL 2.4MM TO 2.4MM |
3,756 |
|
Datasheet | - | Bulk | Active | 2.4mm to 2.4mm | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFlex-405 | - | - | 50 Ohms | 50 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7032-9895COAX CBL SMA TO SMPM |
2,893 |
|
Datasheet | - | Bag | Active | SMA to SMPM | SMA Plug | Male | Free Hanging (In-Line) | - | SMPM Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 18 GHz | Blue | - | -65°C ~ 165°C | - | - |
|
|
7083-0006COAX CBL 2.92MM TO SMPM |
1,988 |
|
Datasheet | - | Bag | Active | 2.92mm to SMPM | 2.92mm Plug | Male | Free Hanging (In-Line) | - | SMPM Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | 50 Ohms | - | 50 Ohms | 40 GHz | Blue | - | -55°C ~ 125°C | - | - |
|
|
7083-0005COAX CBL 2.92MM TO SMPM |
4,125 |
|
Datasheet | - | Bag | Active | 2.92mm to SMPM | 2.92mm Plug | Male | Free Hanging (In-Line) | - | SMPM Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.085" Flexible Cable | 50 Ohms | - | 50 Ohms | 40 GHz | Blue | - | -55°C ~ 125°C | - | - |
|
|
7032-10173-0240SMPM FEMALE VITA 67.3 TO 2.92MM |
1,659 |
|
Datasheet | - | Bag | Active | 2.92mm to SMPM | SMPM Jack | Female | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 0.087" Flexible Cable | 50 Ohms | 50 Ohms | 50 Ohms | 40 GHz | White | - | -65°C ~ 165°C | - | - |
|
|
7083-0023COAX CBL NANO TO SMPM |
4,638 |
|
Datasheet | - | Bag | Active | NANO to SMPM | NANO Jack | Female | Free Hanging (In-Line) | - | SMPM Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 40 GHz | Blue | - | -65°C ~ 165°C | - | - |
