Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7012-1302COAX CBL SMA TO SMP |
3,924 |
|
Datasheet | - | Bag | Active | SMA to SMP | SMA Plug | Male | Free Hanging (In-Line) | - | SMP Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7029-3415COAX CBL SMA TO SMA |
4,045 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|

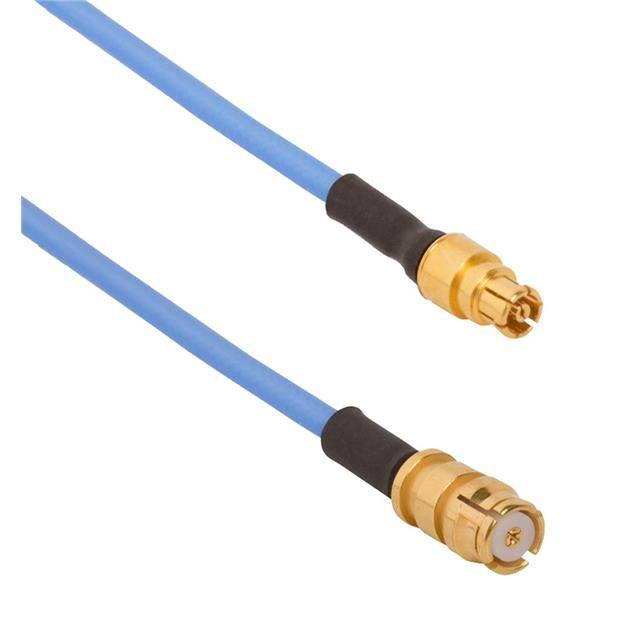

7012-1296COAX CBL SMP TO SMPM |
1,278 |
|
Datasheet | - | Bag | Active | SMP to SMPM | SMP Jack | Female | Free Hanging (In-Line) | - | SMPM Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|

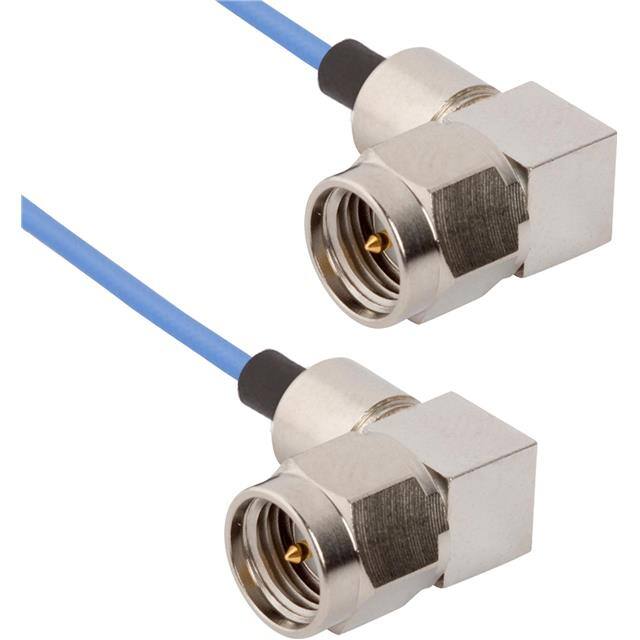

7029-3380COAX CBL SMA TO SMA |
4,954 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7012-1284COAX CBL SMP TO 2.92MM |
3,195 |
|
Datasheet | - | Bag | Active | SMP to 2.92mm | SMP Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFlex-405 | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|

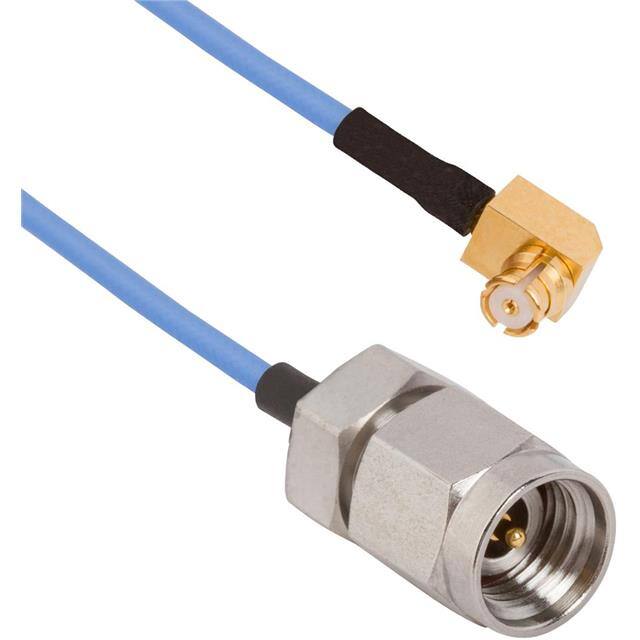

7012-1067COAX CBL SMP TO 2.92MM |
3,163 |
|
Datasheet | - | Bulk | Active | SMP to 2.92mm | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7012-1087COAX CBL SMA TO SMP |
4,515 |
|
Datasheet | - | Bulk | Active | SMA to SMP | SMA Plug | Male | Free Hanging (In-Line) | - | SMP Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7015-0998COAX CBL SMPM TO 2.92MM |
4,866 |
|
Datasheet | - | Bulk | Active | SMPM to 2.92mm | SMPM Jack, Right Angle | Female | Free Hanging (In-Line) | - | 2.92mm Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7015-0994COAX CBL SMP TO 2.92MM |
1,156 |
|
Datasheet | - | Bulk | Active | SMP to 2.92mm | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | 2.92mm Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | TFlex-405 | - | - | 50 Ohms | 26.5 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7015-0999COAX CBL SMPM TO 2.92MM |
2,180 |
|
Datasheet | - | Bulk | Active | SMPM to 2.92mm | SMPM Jack, Right Angle | Female | Free Hanging (In-Line) | - | 2.92mm Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
