Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7029-3826COAX CBL SMA TO SMA |
4,679 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | - | -65°C ~ 165°C | - | - |
|
|
7012-1981COAX CBL SMP TO SMP |
4,711 |
|
Datasheet | - | Bag | Active | SMP to SMP | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFlex-405 | - | - | 50 Ohms | 26.5 GHz | Blue | - | -65°C ~ 165°C | - | - |
|
7015-1098COAX CBL 2.92MM TO 2.92MM |
2,704 |
|
Datasheet | - | Bag | Active | 2.92mm to 2.92mm | 2.92mm Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | 50 Ohms | 50 Ohms | 50 Ohms | 40 GHz | Blue | - | -65°C ~ 165°C | - | - |
|
7029-3381COAX CBL SMA TO SMA |
3,175 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|

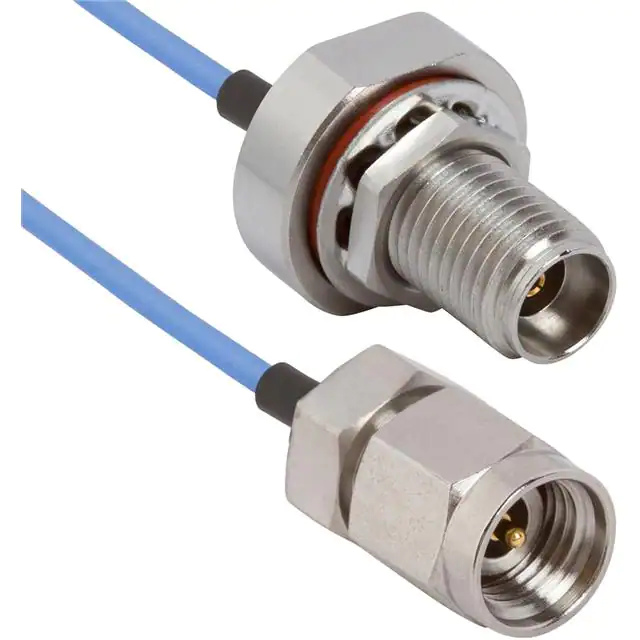

7015-1064COAX CBL 2.92MM TO 2.92MM |
4,007 |
|
Datasheet | - | Bag | Active | 2.92mm to 2.92mm | 2.92mm Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Semi-Rigid Cable | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7029-3382COAX CBL SMA TO SMA |
1,540 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
|
7012-1979COAX CBL SMP TO SMP |
4,392 |
|
Datasheet | - | Bag | Active | SMP to SMP | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 26.5 GHz | Blue | - | -65°C ~ 165°C | - | - |
|
7012-1286COAX CBL SMP TO 2.92MM |
1,553 |
|
Datasheet | - | Bag | Active | SMP to 2.92mm | SMP Jack | Female | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7032-7163COAX CBL SMP TO 2.92MM |
4,517 |
|
Datasheet | - | Bag | Active | SMP to 2.92mm | SMP Jack | Female | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFlex-405 | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7093-0180COAX CBL BMA TO SMA |
2,308 |
|
Datasheet | - | Bulk | Active | BMA to SMA | BMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
