Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7016-0075COAX CBL SMPS TO 2.4MM |
2,023 |
|
Datasheet | - | Bulk | Active | SMPS to 2.4mm | SMPS Jack | Female | Free Hanging (In-Line) | - | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 50 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7015-0990COAX CBL 2.92MM TO 2.92MM |
2,817 |
|
Datasheet | - | Bulk | Active | 2.92mm to 2.92mm | 2.92mm Plug, Right Angle | Male | Free Hanging (In-Line) | - | 2.92mm Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|

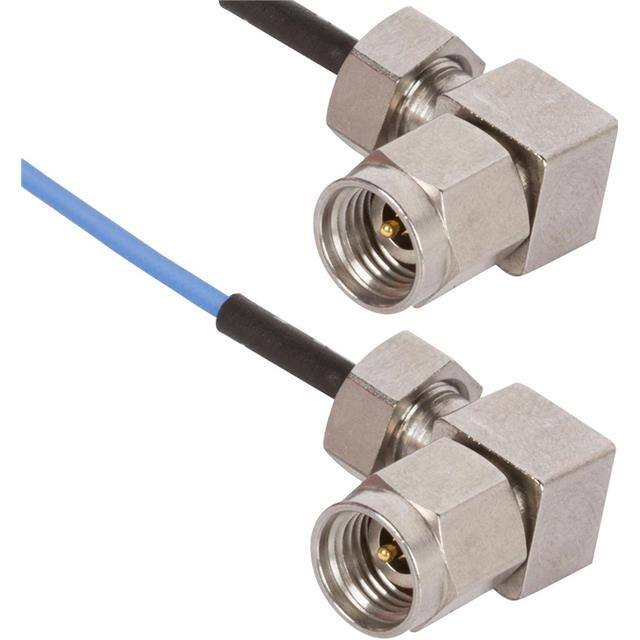

7015-0991COAX CBL 2.92MM TO 2.92MM |
3,691 |
|
Datasheet | - | Bulk | Active | 2.92mm to 2.92mm | 2.92mm Plug, Right Angle | Male | Free Hanging (In-Line) | - | 2.92mm Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7015-1000COAX CBL 2.92MM TO 2.92MM |
3,157 |
|
Datasheet | - | Bulk | Active | 2.92mm to 2.92mm | 2.92mm Plug, Right Angle | Male | Free Hanging (In-Line) | - | 2.92mm Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | TFlex-405 | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7029-3638COAX CBL SMA TO SMA |
4,562 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7029-3580COAX CBL SMA TO SMA |
1,039 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.085" Flexible Cable | - | - | 50 Ohms | 18 GHz | Silver | Shielded | -65°C ~ 165°C | - | - |
|
7029-3247COAX CBL SMA TO SMPM |
2,954 |
|
Datasheet | - | Bulk | Active | SMA to SMPM | SMPM Jack | Female | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7032-8545COAX CBL SMA TO SMPM |
2,715 |
|
Datasheet | - | Bag | Active | SMA to SMPM | SMA Plug | Male | Free Hanging (In-Line) | - | SMPM Jack | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | - | -65°C ~ 165°C | - | - |
|

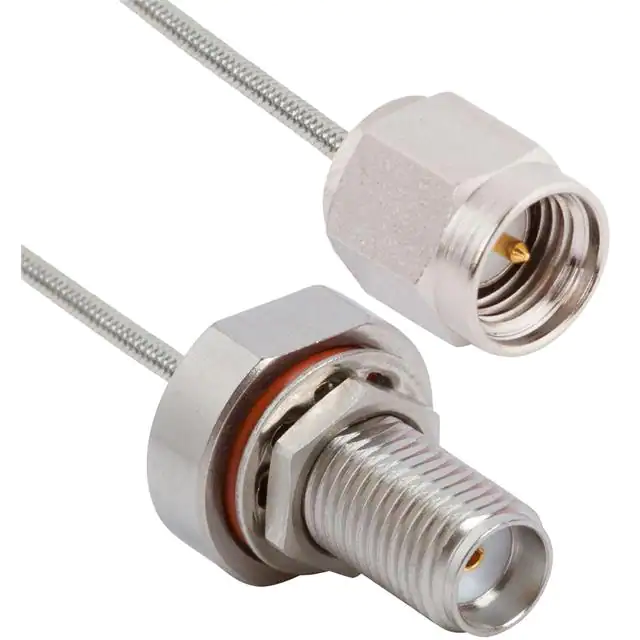

7029-3579COAX CBL SMA TO SMA |
4,047 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 18 GHz | Silver | Shielded | -65°C ~ 165°C | - | - |
|
|
7032-8548COAX CBL SMA TO SMPM |
2,621 |
|
Datasheet | - | Bag | Active | SMA to SMPM | SMA Plug | Male | Free Hanging (In-Line) | - | SMPM Jack | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 18 GHz | Blue | - | -65°C ~ 165°C | - | - |
