Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

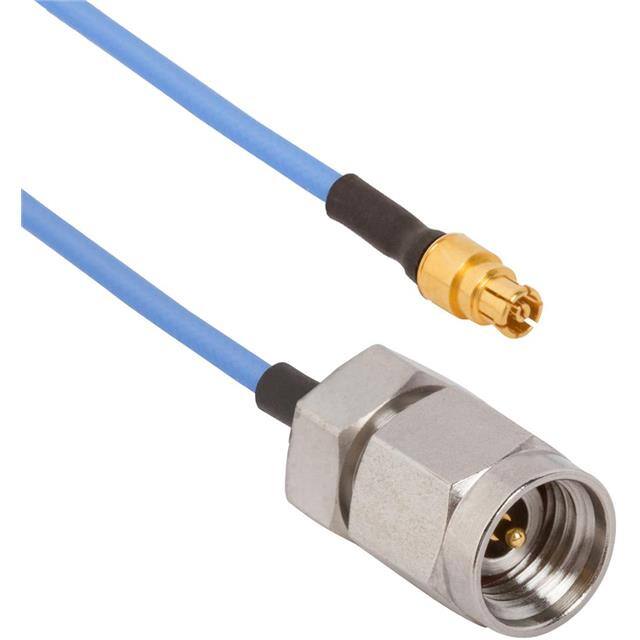

7032-6758COAX CBL SMPM TO 2.92MM |
4,090 |
|
Datasheet | - | Bulk | Active | SMPM to 2.92mm | SMPM Jack | Female | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7012-0799COAX CBL SMP TO SMP |
3,116 |
|
Datasheet | - | Bulk | Active | SMP to SMP | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.085" Flexible Cable | - | - | 50 Ohms | 26.5 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7012-1326COAX CBL SMA TO SMP |
1,852 |
|
Datasheet | - | Bag | Active | SMA to SMP | SMA Plug | Male | Free Hanging (In-Line) | - | SMP Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7012-1283COAX CBL SMP TO 2.92MM |
3,988 |
|
Datasheet | - | Bag | Active | SMP to 2.92mm | SMP Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | TFlex-405 | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|

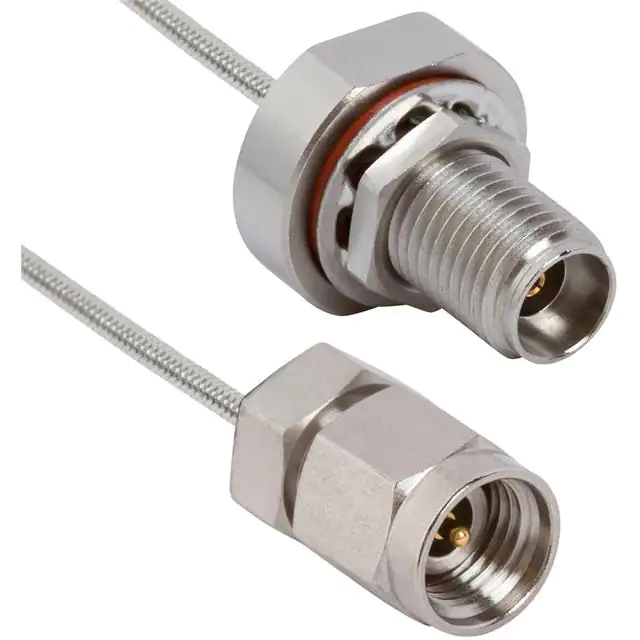

7015-1077COAX CBL 2.92MM TO 2.92MM |
4,416 |
|
Datasheet | - | Bag | Active | 2.92mm to 2.92mm | 2.92mm Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 40 GHz | Silver | - | -65°C ~ 165°C | - | - |
|
7015-0803COAX CBL 2.92MM TO 2.92MM |
1,609 |
|
Datasheet | - | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | TFlex-405 | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7012-1287COAX CBL SMP TO 2.92MM |
1,625 |
|
Datasheet | - | Bag | Active | SMP to 2.92mm | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | TFlex-405 | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7012-1285COAX CBL SMP TO 2.92MM |
4,639 |
|
Datasheet | - | Bag | Active | SMP to 2.92mm | SMP Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | TFlex-405 | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7093-0185COAX CBL BMA TO SMA |
4,640 |
|
Datasheet | - | Bulk | Active | BMA to SMA | BMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | TFlex-402 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7016-0125COAX CBL 2.4MM TO 2.4MM |
3,227 |
|
Datasheet | - | Bag | Active | 2.4mm to 2.4mm | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 0.085" Flexible Cable | 50 Ohms | 50 Ohms | 50 Ohms | 50 GHz | Blue | - | -65°C ~ 165°C | - | - |
