Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
21500.6CABLE GLAND 4.06-6.6MM PG7 BRASS |
4,751 |
|
Datasheet | Cable Gland | 0.160" (4.06mm) | 0.260" (6.60mm) | PG7 | 0.200" (5.08mm) | - | 0.490" (12.4mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
97131.6CABLE GLAND 4.06-6.6MM M16 BRASS |
1,985 |
|
Datasheet | Cable Gland | 0.160" (4.06mm) | 0.260" (6.60mm) | M16x1.5 | 0.240" (6.10mm) | - | 0.630" (16.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
LEX216MSHTSCABLE GLAND 7.11-10.92MM M16 |
3,084 |
|
Datasheet | Cable Gland | 0.280" (7.11mm) | 0.430" (10.92mm) | M16x1.5 | 0.630" (16.00mm) | - | 0.630" (16.0mm) | Brass, Nickel Plated | O-Ring | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 130°C | |
|
96576.1CABLE FEED 35.05-41.91MM M50 |
2,363 |
|
Datasheet | Cable Feedthrough | 1.380" (35.05mm) | 1.650" (41.91mm) | M50x1.5 | 0.390" (9.91mm) | - | 1.969" (50.0mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -20°C ~ 100°C | |
|
21659.6CABLE GLAND 6.6-9.4MM PG16 BRASS |
3,874 |
|
Datasheet | Cable Gland | 0.260" (6.60mm) | 0.370" (9.40mm) | PG16 | 0.260" (6.60mm) | - | 0.890" (22.6mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
LEX3012MSHTSCABLE GLND 8-14MM 1/2" NPT BRASS |
3,086 |
|
Datasheet | Cable Gland | 0.315" (8.00mm) | 0.551" (14.00mm) | 1/2" NPT | 0.787" (20.0mm) | - | - | Brass, Nickel Plated | - | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 130°C | |
|
18630.6CABLE GLAND 6.86-10.41MM PG21 |
4,895 |
|
Datasheet | Cable Gland | 0.270" (6.86mm) | 0.410" (10.41mm) | PG21 | 0.280" (7.11mm) | - | 1.120" (28.4mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|

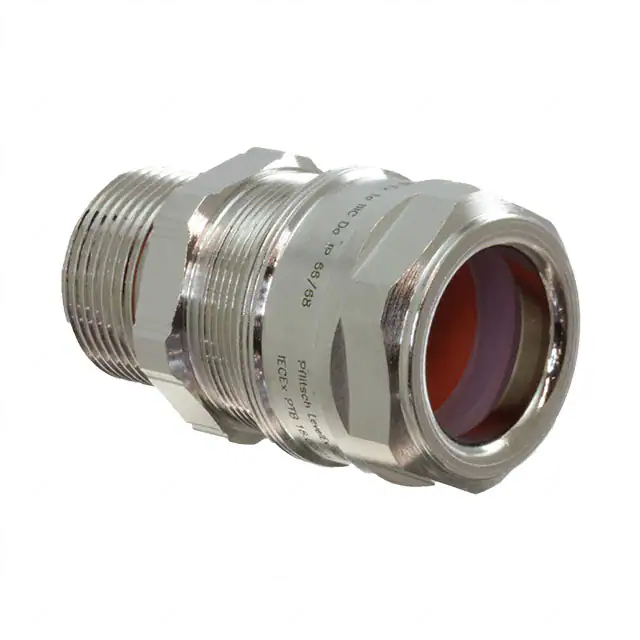

LEX225MSHTSCABLE GLAND 12.45-20.07MM M25 |
3,415 |
|
Datasheet | Cable Gland | 0.490" (12.45mm) | 0.790" (20.07mm) | M25x1.5 | 0.630" (16.00mm) | - | 0.984" (25.0mm) | Brass, Nickel Plated | O-Ring | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 130°C | |
|
21505.6CABLE GLAND 7.87-10.92MM PG11 |
1,134 |
|
Datasheet | Cable Gland | 0.310" (7.87mm) | 0.430" (10.92mm) | PG11 | 0.390" (9.91mm) | - | 0.730" (18.5mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
21687.6CABLE GLAND 13.97-18.03MM PG16 |
3,784 |
|
Datasheet | Cable Gland | 0.550" (13.97mm) | 0.710" (18.03mm) | PG16 | 0.260" (6.60mm) | - | 0.890" (22.6mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C |
