Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
USG 23255 PCCABLE GLAND M32 PC |
3,098 |
|
Datasheet | Cable Gland - Splittable Body | - | - | M32x1.5 | 0.551" (14.00mm) | - | - | Polycarbonate (PC) | - | Gray | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C | |
|
USG 23255 PCNCABLE GLAND M32 PC |
3,517 |
|
Datasheet | Cable Gland - Splittable Body | - | - | M32x1.5 | 0.551" (14.00mm) | - | - | Polycarbonate (PC) | - | Black | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C | |
|
|
LEX263MSHTSCABLE GLAND 43.94-55.88MM M63 |
2,992 |
|
Datasheet | Cable Gland | 1.730" (43.94mm) | 2.200" (55.88mm) | M63x1.5 | 0.630" (16.00mm) | - | 2.480" (63.0mm) | Brass, Nickel Plated | O-Ring | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 130°C | |
|
96570.0CABLE FEEDTHROUGH 2-5MM M12 |
4,580 |
|
Datasheet | Cable Feedthrough | 0.079" (2.00mm) | 0.197" (5.00mm) | M12x1.5 | 0.200" (5.08mm) | - | 0.470" (11.9mm) | Polyamide (PA), Nylon | - | Light Gray | IP68 - Dust Tight, Waterproof; NEMA 4X | -20°C ~ 100°C | |
|
96571.0CABLE FEEDTHROUGH 7.11-10.92MM |
2,532 |
|
Datasheet | Cable Feedthrough | 0.280" (7.11mm) | 0.430" (10.92mm) | M16x1.5 | 0.240" (6.10mm) | - | 0.630" (16.0mm) | Polyamide (PA), Nylon | - | Light Gray | IP68 - Dust Tight, Waterproof; NEMA 4X | -20°C ~ 100°C | |
|

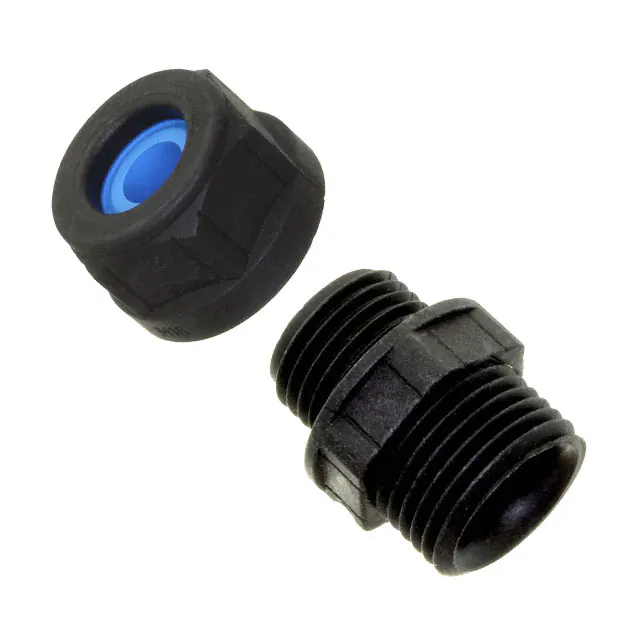

96571.1CABLE FEEDTHROUGH 7.11-10.92MM |
3,512 |
|
Datasheet | Cable Feedthrough | 0.280" (7.11mm) | 0.430" (10.92mm) | M16x1.5 | 0.240" (6.10mm) | - | 0.630" (16.0mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -20°C ~ 100°C | |
|
96572.1CABLE FEEDTHROUGH 8.89-13.97MM |
3,254 |
|
Datasheet | Cable Feedthrough | 0.350" (8.89mm) | 0.550" (13.97mm) | M20x1.5 | 0.260" (6.60mm) | - | 0.790" (20.1mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -20°C ~ 100°C | |
|
96573.0CABLE FEEDTHROUGH 16-20.07MM M25 |
1,983 |
|
- |
Cable Feedthrough | 0.630" (16.00mm) | 0.790" (20.07mm) | M25x1.5 | 0.300" (7.62mm) | - | 0.980" (24.9mm) | Polyamide (PA), Nylon | - | Light Gray | IP68 - Dust Tight, Waterproof; NEMA 4X | -20°C ~ 100°C | |
|

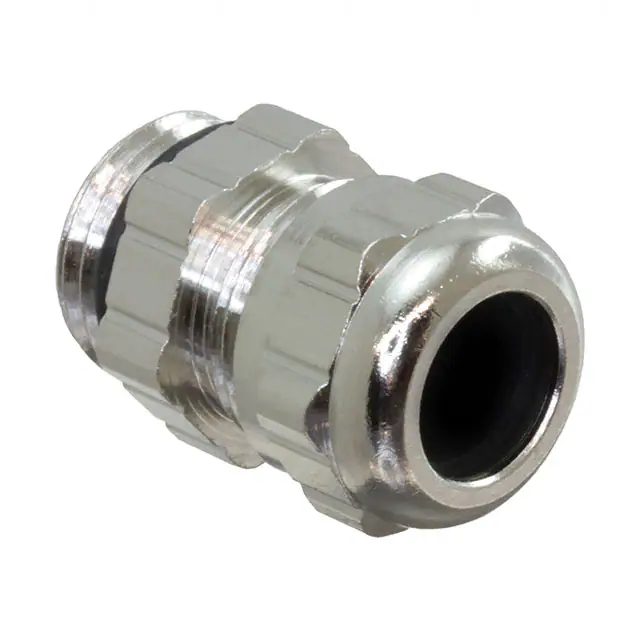

21651.6CABLE GLAND 6.6-9.4MM PG9 BRASS |
1,537 |
|
Datasheet | Cable Gland | 0.260" (6.60mm) | 0.370" (9.40mm) | PG9 | 0.240" (6.10mm) | - | 0.600" (15.2mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
21501.6CABLE GLAND 6.1-9.4MM PG7 BRASS |
4,943 |
|
Datasheet | Cable Gland | 0.240" (6.10mm) | 0.370" (9.40mm) | PG7 | - | - | 0.512" (13.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C |
