Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5308 716CABLE GLAND 7-14MM PG16 POLYAMID |
4,058 |
|
Datasheet | Cable Gland | 0.276" (7.00mm) | 0.551" (14.00mm) | PG16 | 0.394" (10.00mm) | - | 0.886" (22.5mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

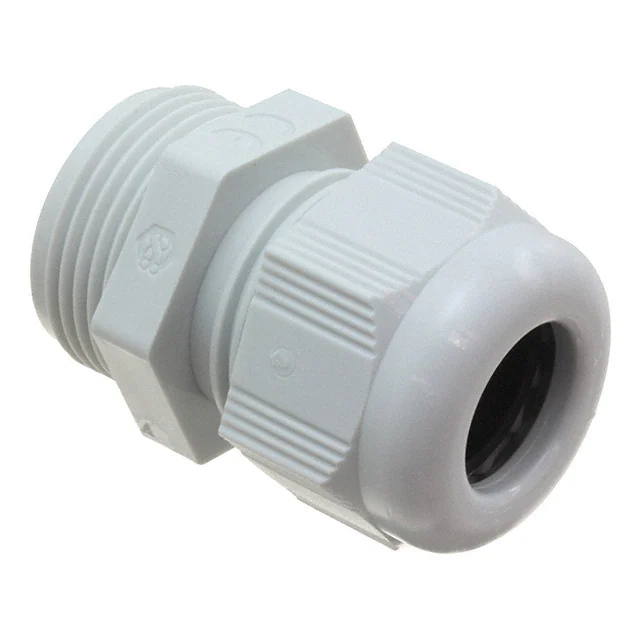

5308 960CABLE GLAND 7-14MM M25 POLYAMIDE |
4,163 |
|
Datasheet | Cable Gland | 0.276" (7.00mm) | 0.551" (14.00mm) | M25x1.5 | 0.394" (10.00mm) | - | 0.984" (25.0mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|
5309 620CABLE GLAND 5-12MM M20 POLYAMIDE |
3,572 |
|
Datasheet | Cable Gland | 0.197" (5.00mm) | 0.472" (12.00mm) | M20x1.5 | 0.394" (10.00mm) | - | 0.787" (20.0mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|

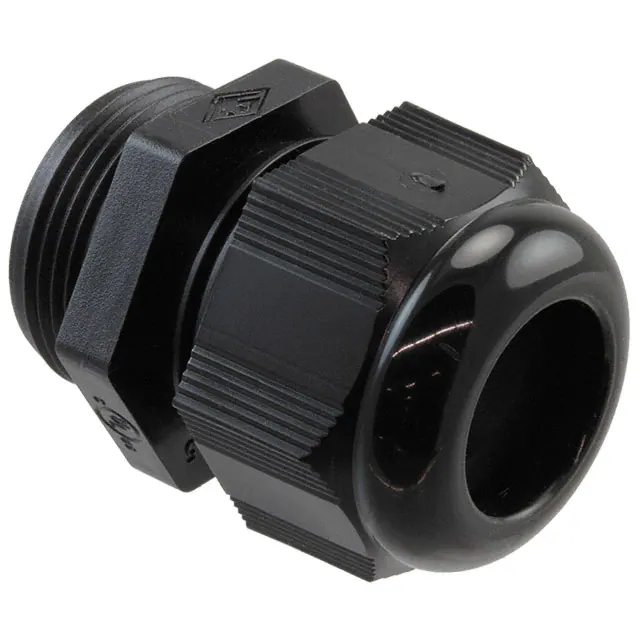

5309 221CABLE GLAND 7-16MM PG21 POLYAMID |
2,855 |
|
Datasheet | Cable Gland | 0.276" (7.00mm) | 0.630" (16.00mm) | PG21 | 0.433" (11.00mm) | - | 1.114" (28.3mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
5308 945CABLE GLAND 18.01-32MM M40 |
4,245 |
|
Datasheet | Cable Gland | 0.709" (18.01mm) | 1.260" (32.00mm) | M40x1.5 | 0.394" (10.00mm) | - | 1.575" (40.0mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
5309 640CABLE GLAND 13-26MM M40 POLYAMID |
4,800 |
|
Datasheet | Cable Gland | 0.512" (13.00mm) | 1.024" (26.00mm) | M40x1.5 | 0.394" (10.00mm) | - | 1.575" (40.0mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|
5308 956CABLE GLAND 24-38.5MM M50 |
4,675 |
|
Datasheet | Cable Gland | 0.945" (24.00mm) | 1.516" (38.50mm) | M50x1.5 | 0.472" (12.00mm) | - | 1.969" (50.0mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|
5309 763CABLE GLAND 26-39MM M63 POLYAMID |
4,966 |
|
Datasheet | Cable Gland | 1.024" (26.00mm) | 1.535" (39.00mm) | M63x1.5 | 0.472" (12.00mm) | - | 2.480" (63.0mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|
5308 954CABLE GLAND 14-25MM M32 POLYAMID |
1,708 |
|
Datasheet | Cable Gland | 0.551" (14.00mm) | 0.984" (25.00mm) | M32x1.5 | 0.394" (10.00mm) | - | 1.260" (32.0mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|

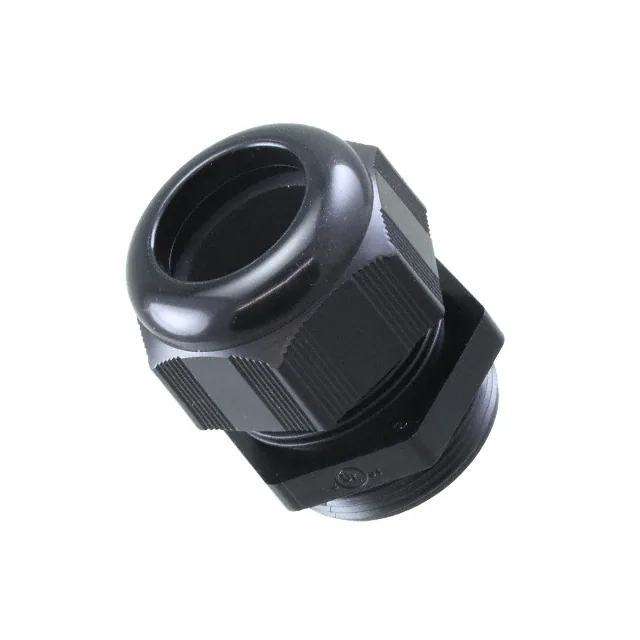

5308 529CABLE GLAND 14-25MM PG29 |
4,668 |
|
Datasheet | Cable Gland | 0.551" (14.00mm) | 0.984" (25.00mm) | PG29 | 0.433" (11.00mm) | - | 1.457" (37.0mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C |
