Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4220311CABLE GLAND 6-11.5MM PG11 BRASS |
1,268 |
|
- |
Cable Gland | 0.236" (6.00mm) | 0.453" (11.50mm) | PG11 | 0.236" (6.00mm) | - | 0.732" (18.6mm) | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|

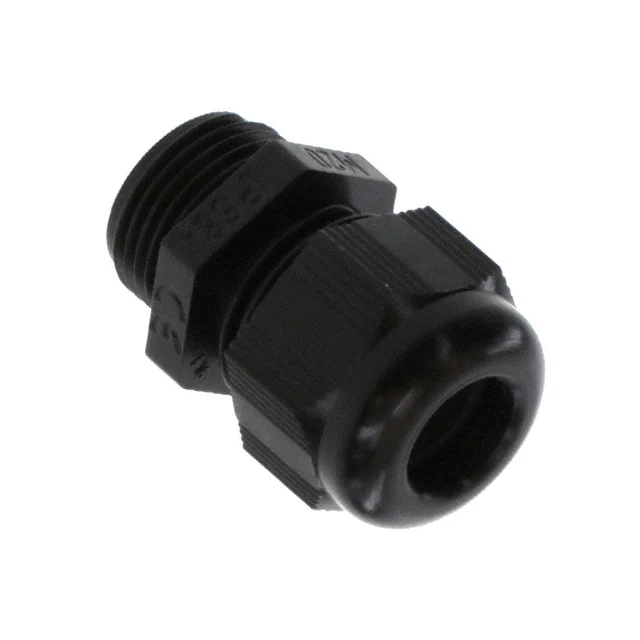

5308 949CABLE GLAND 5-12MM M20 POLYAMIDE |
1,694 |
|
Datasheet | Cable Gland | 0.197" (5.00mm) | 0.472" (12.00mm) | M20x1.5 | 0.394" (10.00mm) | - | 0.787" (20.0mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
5308 921/SETCABLE GLAND 5-12MM 1/2" NPT |
2,483 |
|
Datasheet | Cable Gland | 0.197" (5.00mm) | 0.472" (12.00mm) | 1/2" NPT | 0.551" (14.00mm) | - | 0.835" (21.2mm) | Polyamide (PA), Nylon | Locknut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
5308 923CABLE GLAND 14-25MM 1" NPT |
4,799 |
|
Datasheet | Cable Gland | 0.551" (14.00mm) | 0.984" (25.00mm) | 1" NPT | 0.709" (18.01mm) | - | 1.311" (33.3mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
5308 955CABLE GLAND 18.01-32MM M40 |
2,325 |
|
Datasheet | Cable Gland | 0.709" (18.01mm) | 1.260" (32.00mm) | M40x1.5 | 0.394" (10.00mm) | - | 1.575" (40.0mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|
5309 616CABLE GLAND 2-7MM M16 POLYAMIDE |
1,629 |
|
Datasheet | Cable Gland | 0.079" (2.00mm) | 0.276" (7.00mm) | M16x1.5 | 0.394" (10.00mm) | - | 0.630" (16.0mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|
5308 900CABLE GLAND 2.5-8MM 3/8" NPT |
1,773 |
|
Datasheet | Cable Gland | 0.098" (2.50mm) | 0.315" (8.00mm) | 3/8" NPT | 0.433" (11.00mm) | - | 0.673" (17.1mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
5308 904CABLE GLAND 1.5-6MM 3/8" NPT |
1,122 |
|
Datasheet | Cable Gland | 0.059" (1.50mm) | 0.236" (6.00mm) | 3/8" NPT | 0.433" (11.00mm) | - | 0.673" (17.1mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
5308 905CABLE GLAND 3-9MM 1/2" NPT |
2,936 |
|
Datasheet | Cable Gland | 0.118" (3.00mm) | 0.354" (9.00mm) | 1/2" NPT | 0.551" (14.00mm) | - | 0.835" (21.2mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

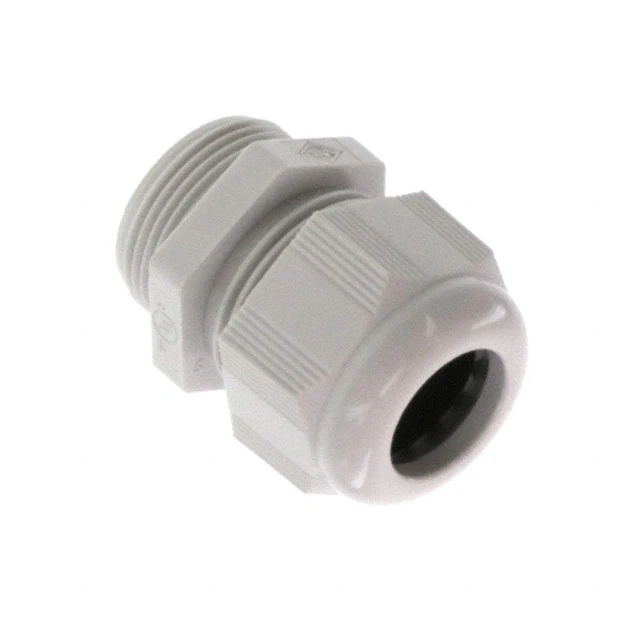

5308 721CABLE GLAND 9-18.01MM PG21 |
2,988 |
|
Datasheet | Cable Gland | 0.354" (9.00mm) | 0.709" (18.01mm) | PG21 | 0.433" (11.00mm) | - | 1.114" (28.3mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C |
