Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5308 921CABLE GLAND 5-12MM 1/2" NPT |
2,687 |
|
Datasheet | Cable Gland | 0.197" (5.00mm) | 0.472" (12.00mm) | 1/2" NPT | 0.551" (14.00mm) | - | 0.835" (21.2mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
4220309CABLE GLAND 4-9.5MM PG9 BRASS |
605 |
|
Datasheet | Cable Gland | 0.157" (4.00mm) | 0.374" (9.50mm) | PG9 | 0.236" (6.00mm) | - | 0.598" (15.2mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|
5308 952CABLE GLAND 7-14MM M20 POLYAMIDE |
315 |
|
Datasheet | Cable Gland | 0.276" (7.00mm) | 0.551" (14.00mm) | M20x1.5 | 0.394" (10.00mm) | - | 0.787" (20.0mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|

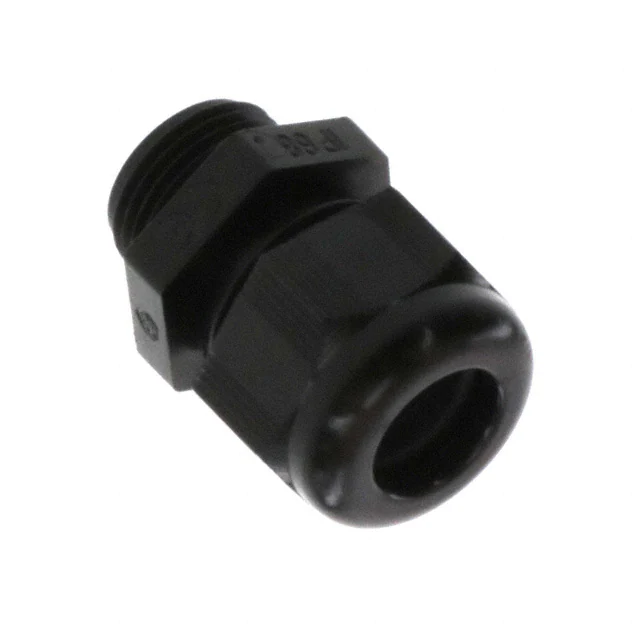

5308 942CABLE GLAND 7-14MM M20 POLYAMIDE |
11,143 |
|
Datasheet | Cable Gland | 0.276" (7.00mm) | 0.551" (14.00mm) | M20x1.5 | 0.394" (10.00mm) | - | 0.787" (20.0mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
5308 707CABLE GLAND 2.5-6.5MM PG7 |
3,434 |
|
Datasheet | Cable Gland | 0.098" (2.50mm) | 0.256" (6.50mm) | PG7 | 0.315" (8.00mm) | - | 0.492" (12.5mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
5308 509CABLE GLAND 2.5-8MM PG9 POLYAMID |
947 |
|
Datasheet | Cable Gland | 0.098" (2.50mm) | 0.315" (8.00mm) | PG9 | 0.315" (8.00mm) | - | 0.598" (15.2mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
5309 712CABLE GLAND 1.5-5MM M12 POLYAMID |
313 |
|
Datasheet | Cable Gland | 0.059" (1.50mm) | 0.197" (5.00mm) | M12x1.5 | 0.315" (8.00mm) | - | 0.472" (12.0mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|
5309 612CABLE GLAND 1.5-5MM M12 POLYAMID |
118 |
|
Datasheet | Cable Gland | 0.059" (1.50mm) | 0.197" (5.00mm) | M12x1.5 | 0.315" (8.00mm) | - | 0.472" (12.0mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|
5308 711CABLE GLAND 3.5-10MM PG11 |
508 |
|
Datasheet | Cable Gland | 0.138" (3.50mm) | 0.394" (10.00mm) | PG11 | 0.315" (8.00mm) | - | 0.732" (18.6mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
5309 207CABLE GLAND 1.5-5MM PG7 POLYAMID |
2,988 |
|
Datasheet | Cable Gland | 0.059" (1.50mm) | 0.197" (5.00mm) | PG7 | 0.315" (8.00mm) | - | 0.492" (12.5mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C |
