Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4220620CABLE GLAND 7-13MM M20 BRASS |
4,483 |
|
Datasheet | Cable Gland | 0.276" (7.00mm) | 0.512" (13.00mm) | M20x1.5 | 0.236" (6.00mm) | - | 0.787" (20.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|

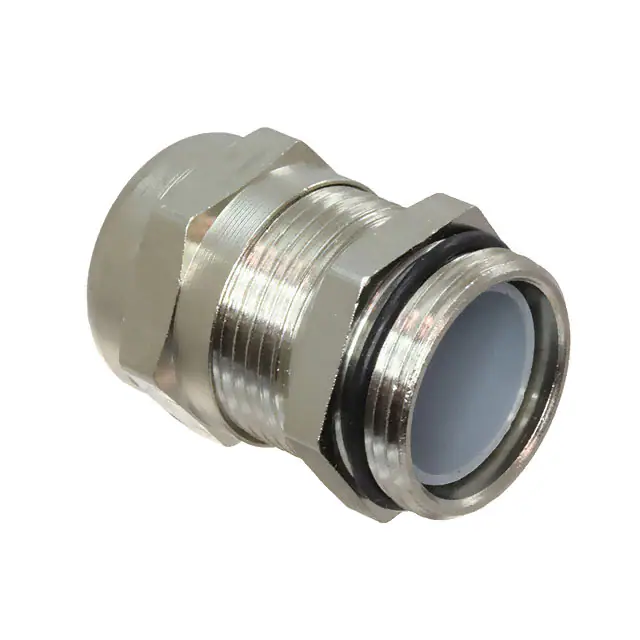

4220316CABLE GLAND 8-15MM PG16 BRASS |
2,642 |
|
Datasheet | Cable Gland | 0.315" (8.00mm) | 0.591" (15.00mm) | PG16 | 0.256" (6.50mm) | - | 0.886" (22.5mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|
5306117CABLE GLAND 5-11MM PG16 POLYAMID |
2,838 |
|
Datasheet | Cable Gland | 0.197" (5.00mm) | 0.433" (11.00mm) | PG16 | 0.394" (10.00mm) | - | 0.886" (22.5mm) | Polyamide (PA), Nylon | Strain Relief | Black | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|
4264007CABLE GLAND 4-6.5MM PG7 BRASS |
4,341 |
|
Datasheet | Cable Gland | 0.157" (4.00mm) | 0.256" (6.50mm) | PG7 | 0.197" (5.00mm) | - | 0.492" (12.5mm) | Brass, Nickel Plated | Clamping Ring, Sealing Ring | Silver | IP68 - Dust Tight, Waterproof | -25°C ~ 120°C | |
|
4220321CABLE GLAND 11-19MM PG21 BRASS |
4,373 |
|
Datasheet | Cable Gland | 0.433" (11.00mm) | 0.748" (19.00mm) | PG21 | 0.276" (7.00mm) | - | 1.114" (28.3mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|

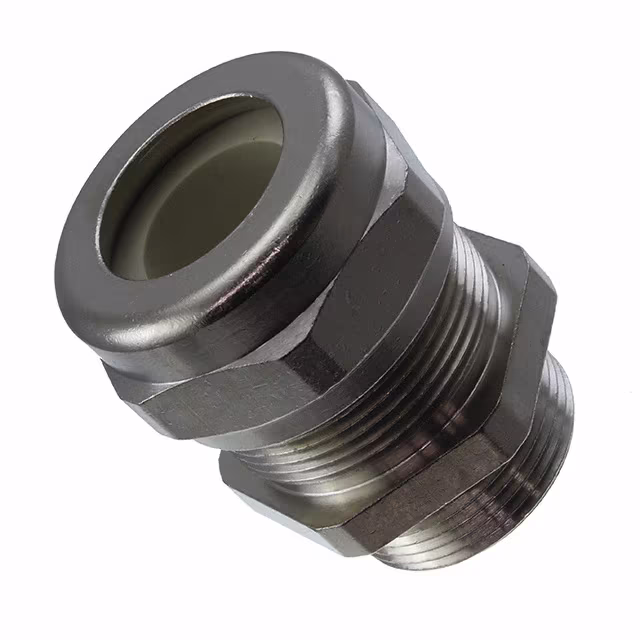

4266 025CABLE GLND 14-18.01MM PG21 BRASS |
4,626 |
|
Datasheet | Cable Gland | 0.551" (14.00mm) | 0.709" (18.01mm) | PG21 | 0.472" (12.00mm) | - | 1.114" (28.3mm) | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|
5308 958CABLE GLAND 2.5-8MM M16 POLYAMID |
1,129 |
|
Datasheet | Cable Gland | 0.098" (2.50mm) | 0.315" (8.00mm) | M16x1.5 | 0.394" (10.00mm) | - | 0.630" (16.0mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|
5308 950CABLE GLAND 2.5-6.5MM M12 |
3,167 |
|
Datasheet | Cable Gland | 0.098" (2.50mm) | 0.256" (6.50mm) | M12x1.5 | 0.315" (8.00mm) | - | 0.472" (12.0mm) | Polyamide (PA6), Nylon 6 | - | Gray | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|
|
5309 720CABLE GLAND 5-12MM M20 POLYAMIDE |
4,103 |
|
Datasheet | Cable Gland | 0.197" (5.00mm) | 0.472" (12.00mm) | M20x1.5 | 0.394" (10.00mm) | - | 0.787" (20.0mm) | Polyamide (PA6), Nylon 6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
5309 107CABLE GLAND 1.5-5MM PG7 POLYAMID |
4,206 |
|
Datasheet | Cable Gland | 0.059" (1.50mm) | 0.197" (5.00mm) | PG7 | 0.315" (8.00mm) | - | 0.492" (12.5mm) | Polyamide (PA6), Nylon 6 | - | Light Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C |
