AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PBA100F-24-TAC/DC CONVERTER 24V |
2,510 |
|
Datasheet | PBA (100W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 4.5 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 5.79" L x 1.26" W x 3.66" H (147.1mm x 32.0mm x 93.0mm) |
|
|
PBA100F-36-TAC/DC CONVERTER 36V |
4,820 |
|
Datasheet | PBA (100W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 2.8 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 5.79" L x 1.26" W x 3.66" H (147.1mm x 32.0mm x 93.0mm) |
|
|
PBA100F-3R3-KAC/DC CONVERTER 3.3V |
3,570 |
|
Datasheet | PBA (100W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 20 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 5.79" L x 1.26" W x 3.66" H (147.1mm x 32.0mm x 93.0mm) |
|
|
PBA100F-3R3-TAC/DC CONVERTER 3.3V |
2,391 |
|
Datasheet | PBA (100W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 20 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 5.79" L x 1.26" W x 3.66" H (147.1mm x 32.0mm x 93.0mm) |
|
|
PBA100F-48-TAC/DC CONVERTER 48V |
4,244 |
|
Datasheet | PBA (100W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 5.79" L x 1.26" W x 3.66" H (147.1mm x 32.0mm x 93.0mm) |
|
|
PBA100F-5-KAC/DC CONVERTER 5V |
1,051 |
|
Datasheet | PBA (100W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 20 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 5.79" L x 1.26" W x 3.66" H (147.1mm x 32.0mm x 93.0mm) |
|
|
PBA100F-5-TAC/DC CONVERTER 5V |
3,521 |
|
Datasheet | PBA (100W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 20 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 5.79" L x 1.26" W x 3.66" H (147.1mm x 32.0mm x 93.0mm) |
|
|
PBA100F-9-TAC/DC CONVERTER 9V |
1,454 |
|
Datasheet | PBA (100W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 9V | - | - | - | - | - | 10.5 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 5.79" L x 1.26" W x 3.66" H (147.1mm x 32.0mm x 93.0mm) |
|

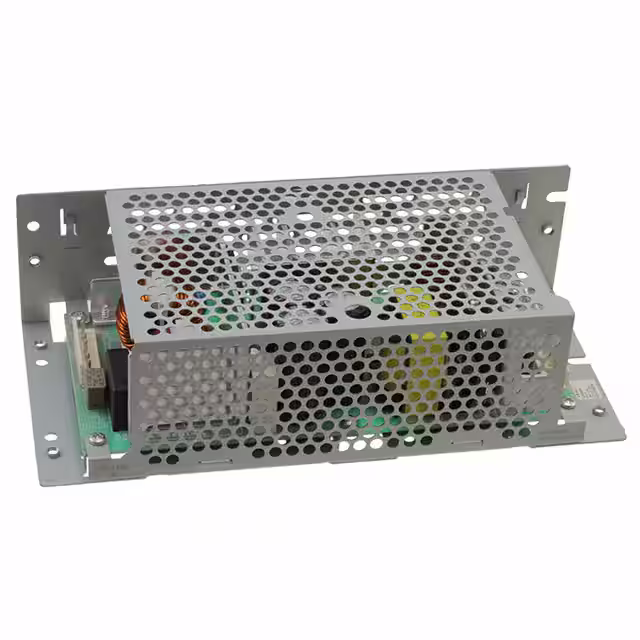

LGA240A-24-SNYAC/DC CONVERTER 24V |
1,001 |
|
Datasheet | LGA (240W) | Box | Active | Enclosed | 1 | 85 ~ 132 VAC | 24V | - | - | - | - | - | 10 A | - | - | - | - | - | - | ITE (Commercial) | 2 kV | -10°C ~ 60°C | - | Chassis Mount | 7.09" L x 3.31" W x 1.91" H (180.1mm x 84.1mm x 48.5mm) |
|
PBW50F-12-GN1AC/DC CONVERTER +/-12V |
1,637 |
|
Datasheet | PBW (50W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 2.1 A | 2.7 A | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 4.72" L x 1.22" W x 3.23" H (119.9mm x 31.0mm x 82.0mm) |
