AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

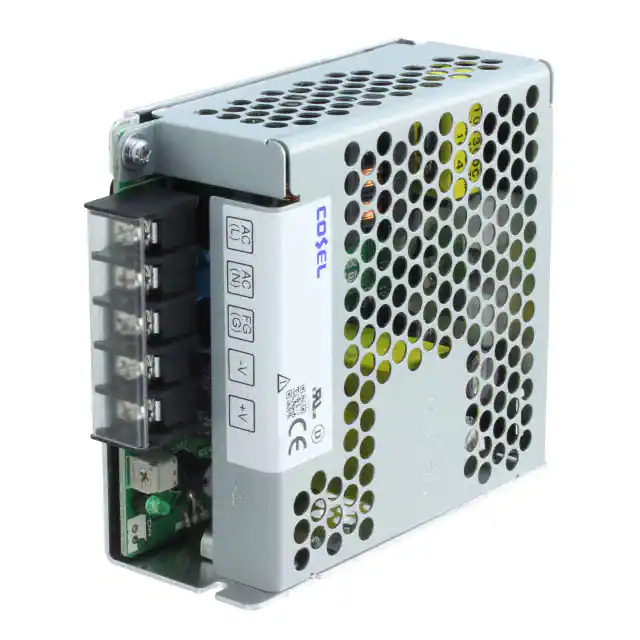

PJA100F-12AC/DC CONVERTER 12V 100W |
124 |
|
Datasheet | PJA (100W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 8.4 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.29" L x 1.61" W x 3.82" H (109.0mm x 40.9mm x 97.0mm) |
|
PLA300F-24AC/DC CONVERTER 24V 300W |
1,426 |
|
Datasheet | PLA (300W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 300W | ITE (Commercial) | - | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | - |
|

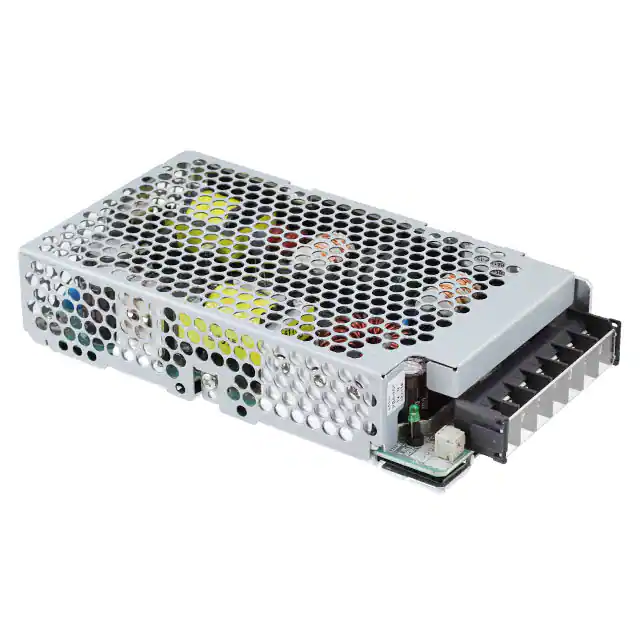

PBA150F-24-NAC/DC CONVERTER 24V 150W |
392 |
|
Datasheet | PBA (150W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 6.5 A | - | - | - | - | - | 150W | ITE (Commercial) | - | - | DC Input Capable, Universal Input | Chassis Mount | - |
|
PLA600F-12AC/DC CONVERTER 12V 600W |
2,996 |
|
Datasheet | PLA (600W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 50 A | - | - | - | - | - | 600W | ITE (Commercial) | - | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | - |
|

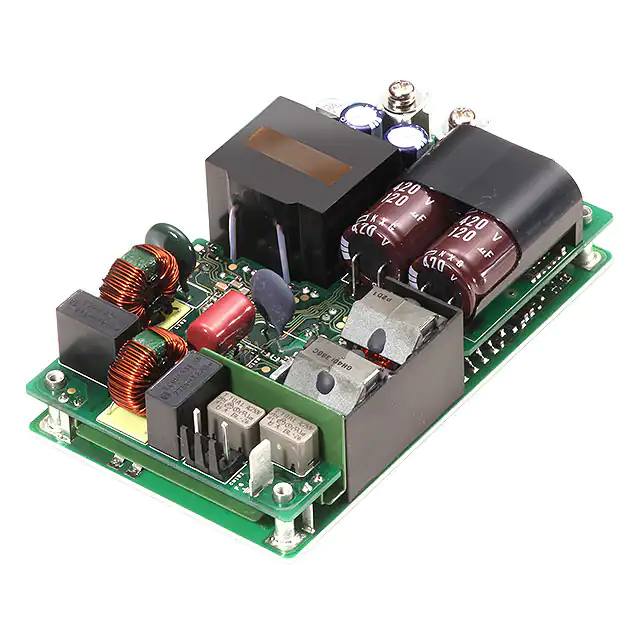

GHA300F-24AC/DC CONVERTER 24V 100W |
677 |
|
Datasheet | GHA (300W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 100W (300W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 80°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.0mm) |
|
|
GHA500F-24AC/DC CONVERTER 24V 150W |
755 |
|
Datasheet | GHA (500W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 150W (500W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.0mm) |
|
|
GHA500F-48-R3AC/DC CONVERTER 48V 150W |
120 |
|
Datasheet | GHA (500W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 150W (500W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.0mm) |
|
PBA300F-24AC/DC CONVERTER 24V 300W |
356 |
|
Datasheet | PBA (300W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 14 A | - | - | - | - | - | 300W | ITE (Commercial) | - | - | DC Input Capable, Universal Input | Chassis Mount | - |
|
PCA600F-48-TAC/DC CONVERTER 48V 624W |
114 |
|
Datasheet | PCA (600W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 88 ~ 370 VDC | 48V | - | - | - | - | - | 13 A | - | - | - | - | - | 624W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 5.98" L x 3.50" W x 1.61" H (152.0mm x 89.0mm x 41.0mm) |
|

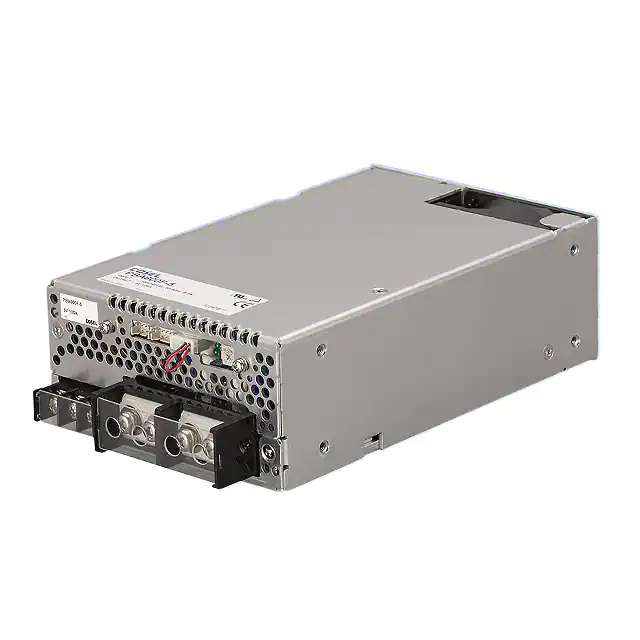

PBA600F-36AC/DC CONVERTER 36V 600W |
1,166 |
|
Datasheet | PBA (600W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 18 A | - | - | - | - | - | 600W | ITE (Commercial) | - | - | DC Input Capable, Universal Input | Chassis Mount | - |
