AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGA240A-24-HSJ1AC/DC CONVERTER 24V |
2,341 |
|
Datasheet | LGA (240W) | Box | Active | Open Frame | 1 | 85 ~ 132 VAC | 24V | - | - | - | - | - | 10 A | - | - | - | - | - | - | ITE (Commercial) | 2 kV | -10°C ~ 60°C | - | Chassis Mount | 7.09" L x 3.31" W x 1.91" H (180.1mm x 84.1mm x 48.5mm) |
|
|
LGA240A-24-HSJ1YAC/DC CONVERTER 24V |
2,410 |
|
Datasheet | LGA (240W) | Box | Active | Open Frame | 1 | 85 ~ 132 VAC | 24V | - | - | - | - | - | 10 A | - | - | - | - | - | - | ITE (Commercial) | 2 kV | -10°C ~ 60°C | - | Chassis Mount | 7.09" L x 3.31" W x 1.91" H (180.1mm x 84.1mm x 48.5mm) |
|

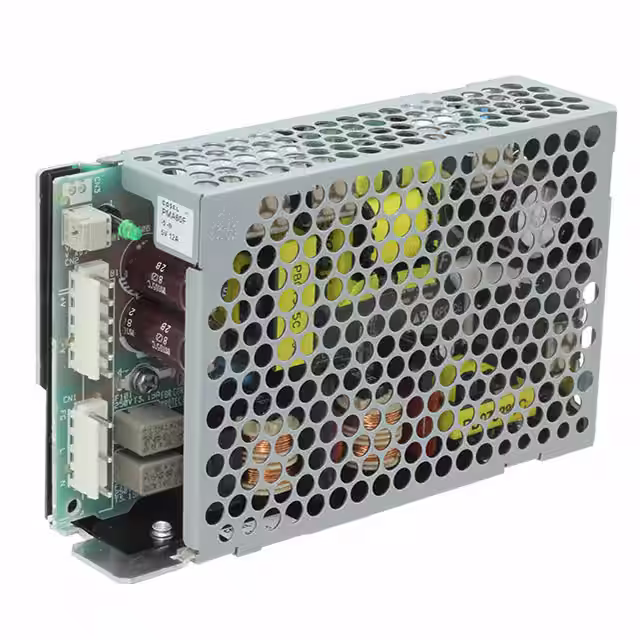

PMA60F-15-NAC/DC CONVERTER 15V |
4,715 |
|
Datasheet | PMA (60W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 4 A | - | - | - | - | - | - | Medical | 2 kV | -10°C ~ 70°C | - | Chassis Mount | 5.31" L x 1.26" W x 3.23" H (134.9mm x 32.0mm x 82.0mm) |
|
|
PBA150F-24-CJ1AC/DC CONVERTER 24V |
3,950 |
|
Datasheet | PBA (150W) | Bulk | Active | Open Frame, Conformal Coated | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 6.5 A | - | - | - | - | - | 156W | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | DC Input Capable, PFC, Universal Input | Chassis Mount | 6.61" L x 1.34" W x 3.66" H (167.9mm x 34.0mm x 93.0mm) |
|
|
PBA150F-12-CJ1AC/DC CONVERTER 12V |
2,492 |
|
Datasheet | PBA (150W) | Bulk | Active | Open Frame, Conformal Coated | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 13 A | - | - | - | - | - | 156W | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | DC Input Capable, PFC, Universal Input | Chassis Mount | 6.61" L x 1.34" W x 3.66" H (167.9mm x 34.0mm x 93.0mm) |
|
|
PBA150F-36-CJ1AC/DC CONVERTER 36V |
3,610 |
|
Datasheet | PBA (150W) | Bulk | Active | Open Frame, Conformal Coated | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 36V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 155W | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | DC Input Capable, PFC, Universal Input | Chassis Mount | 6.61" L x 1.34" W x 3.66" H (167.9mm x 34.0mm x 93.0mm) |
|
|
LGA240A-24-SNJ1YAC/DC CONVERTER 24V |
1,578 |
|
Datasheet | LGA (240W) | Box | Active | Enclosed | 1 | 85 ~ 132 VAC | 24V | - | - | - | - | - | 10 A | - | - | - | - | - | - | ITE (Commercial) | 2 kV | -10°C ~ 60°C | - | Chassis Mount | 7.09" L x 3.31" W x 1.91" H (180.1mm x 84.1mm x 48.5mm) |
|
PBW50F-12-N1AC/DC CONVERTER +/-12V |
3,589 |
|
Datasheet | PBW (50W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 2.1 A | 2.7 A | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 4.72" L x 1.22" W x 3.23" H (119.9mm x 31.0mm x 82.0mm) |
|
|
PBA100F-12-TAC/DC CONVERTER 12V |
2,569 |
|
Datasheet | PBA (100W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 8.5 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 5.79" L x 1.26" W x 3.66" H (147.1mm x 32.0mm x 93.0mm) |
|
|
PBA100F-15-TAC/DC CONVERTER 15V |
2,243 |
|
Datasheet | PBA (100W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 7 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 5.79" L x 1.26" W x 3.66" H (147.1mm x 32.0mm x 93.0mm) |
