AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PBA100F-5-EAC/DC CONVERTER 5V |
4,120 |
|
Datasheet | PBA (100W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 20 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 5.79" L x 1.26" W x 3.66" H (147.1mm x 32.0mm x 93.0mm) |
|
|
PBA100F-5-GAC/DC CONVERTER 5V |
3,188 |
|
Datasheet | PBA (100W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 20 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 5.79" L x 1.26" W x 3.66" H (147.1mm x 32.0mm x 93.0mm) |
|
|
PBA100F-9-EAC/DC CONVERTER 9V |
2,578 |
|
Datasheet | PBA (100W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 9V | - | - | - | - | - | 10.5 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 5.79" L x 1.26" W x 3.66" H (147.1mm x 32.0mm x 93.0mm) |
|
|
PBA100F-9-GAC/DC CONVERTER 9V |
2,328 |
|
Datasheet | PBA (100W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 9V | - | - | - | - | - | 10.5 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 5.79" L x 1.26" W x 3.66" H (147.1mm x 32.0mm x 93.0mm) |
|

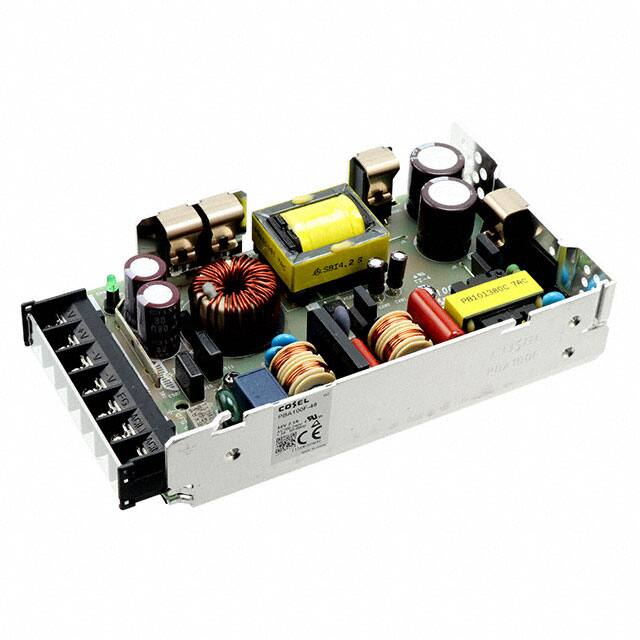

PBA100F-48AC/DC CONVERTER 48V 100W |
2,908 |
|
Datasheet | PBA (100W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 100W | ITE (Commercial) | - | - | DC Input Capable, Universal Input | Chassis Mount | - |
|
|
PBA100F-5AC/DC CONVERTER 5V 100W |
2,555 |
|
Datasheet | PBA (100W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial) | - | - | DC Input Capable, Universal Input | Chassis Mount | - |
|
|
PBA150F-48-GJ1NAC/DC CONVERTER 48V |
2,589 |
|
Datasheet | PBA (150W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 3.3 A | - | - | - | - | - | 158W | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | DC Input Capable, PFC, Universal Input | Chassis Mount | 6.61" L x 1.34" W x 3.66" H (167.9mm x 34.0mm x 93.0mm) |
|
|
PBA150F-15-GJ1NAC/DC CONVERTER 15V |
2,792 |
|
Datasheet | PBA (150W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 10 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | DC Input Capable, PFC, Universal Input | Chassis Mount | 6.61" L x 1.34" W x 3.66" H (167.9mm x 34.0mm x 93.0mm) |
|
|
PBA75F-5-GN1AC/DC CONVERTER 5V |
1,195 |
|
Datasheet | PBA (75W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 15 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 5.31" L x 1.26" W x 3.23" H (134.9mm x 32.0mm x 82.0mm) |
|
|
PBA75F-12-N1AC/DC CONVERTER 12V |
4,338 |
|
Datasheet | PBA (75W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 6.3 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 5.31" L x 1.26" W x 3.23" H (134.9mm x 32.0mm x 82.0mm) |
