AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GHA500F-12-R3AC/DC CONVERTER 12V 150W |
1,294 |
|
Datasheet | GHA (500W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W (500W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.0mm) |
|
PCA300F-32AC/DC CONVERTER 32V 320W |
2,943 |
|
Datasheet | PCA (300W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 88 ~ 370 VDC | 32V | - | - | - | - | - | 10 A | - | - | - | - | - | 320W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 5.98" L x 3.50" W x 1.61" H (152.0mm x 89.0mm x 41.0mm) |
|
PBA300F-12AC/DC CONVERTER 12V 300W |
4,460 |
|
Datasheet | PBA (300W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 27 A | - | - | - | - | - | 300W | ITE (Commercial) | - | - | DC Input Capable, Universal Input | Chassis Mount | - |
|
PJA1000F-48AC/DC CONVERTER 48V 1000W |
4,198 |
|
Datasheet | PJA (1000W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 21 A | - | - | - | - | - | 1000W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 9.45" L x 5.91" W x 2.40" H (240.0mm x 150.1mm x 61.0mm) |
|
PJA1000F-12AC/DC CONVERTER 12V 1008W |
3,099 |
|
Datasheet | PJA (1000W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 84 A | - | - | - | - | - | 1008W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.45" L x 5.91" W x 2.40" H (240.0mm x 150.1mm x 61.0mm) |
|

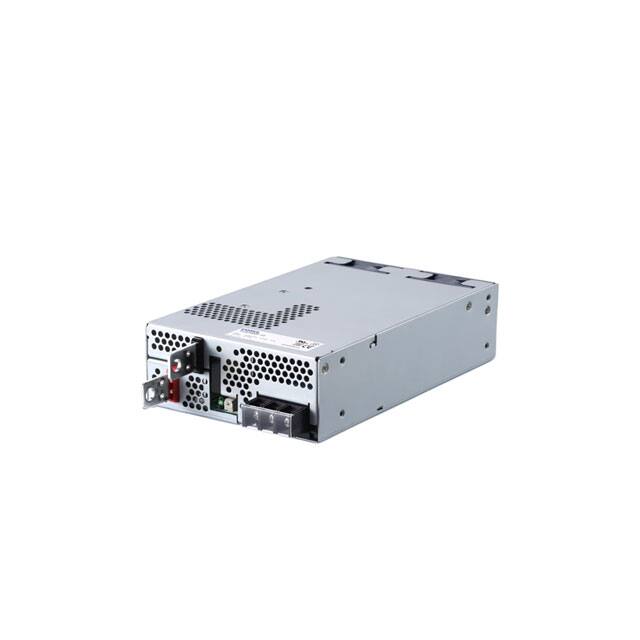

PJA1000F-15AC/DC CONVERTER 15V 1005W |
3,146 |
|
Datasheet | PJA (1000W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 67 A | - | - | - | - | - | 1005W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.45" L x 5.91" W x 2.40" H (240.0mm x 150.1mm x 61.0mm) |
|
PJMA1000F-48AC/DC CONVERTER 48V 1008W |
3,254 |
|
Datasheet | PJMA (1000W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 21 A | - | - | - | - | - | 1008W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.45" L x 5.91" W x 2.40" H (240.0mm x 150.1mm x 61.0mm) |
|
|
PJMA1000F-24AC/DC CONVERTER 24V 1008W |
4,765 |
|
Datasheet | PJMA (1000W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 42 A | - | - | - | - | - | 1008W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.45" L x 5.91" W x 2.40" H (240.0mm x 150.1mm x 61.0mm) |
|

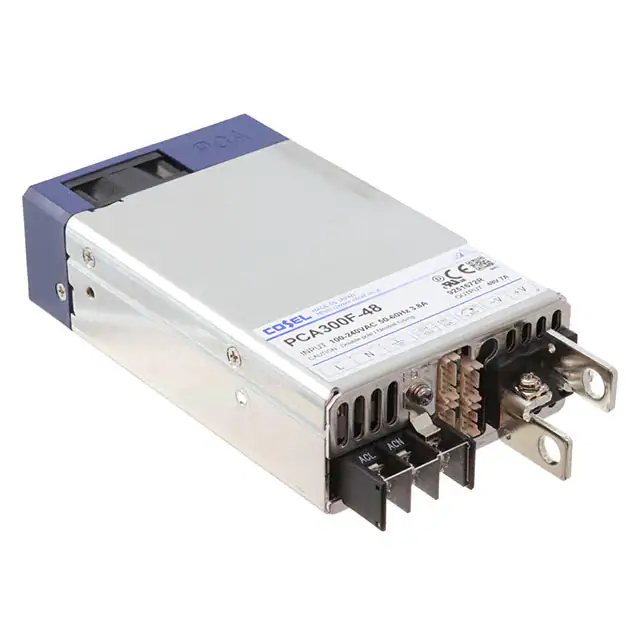

PCA300F-48AC/DC CONVERTER 48V 336W |
2,380 |
|
Datasheet | PCA (300W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 88 ~ 370 VDC | 48V | - | - | - | - | - | 7 A | - | - | - | - | - | 336W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 5.98" L x 3.50" W x 1.61" H (152.0mm x 89.0mm x 41.0mm) |
|
PCA300F-5AC/DC CONVERTER 5V 300W |
4,010 |
|
Datasheet | PCA (300W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 88 ~ 370 VDC | 5V | - | - | - | - | - | 60 A | - | - | - | - | - | 300W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 5.98" L x 3.50" W x 1.61" H (152.0mm x 89.0mm x 41.0mm) |
