AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

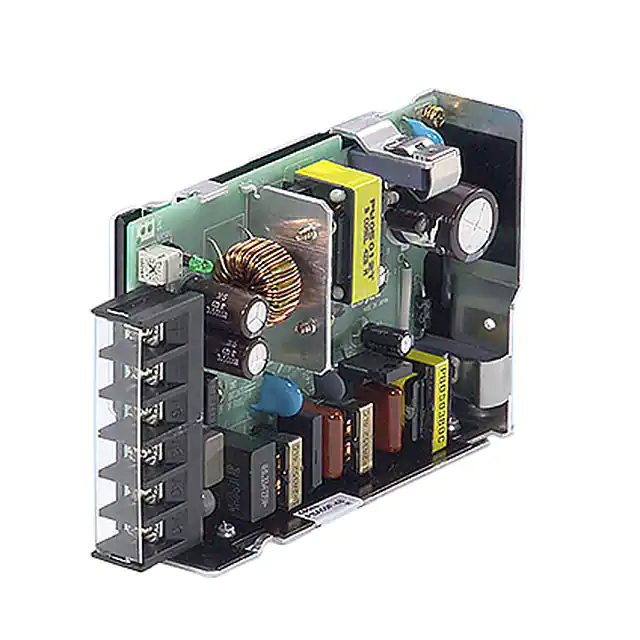

PBW50F-15AC/DC CONVERTER +/-15V 50W |
3,491 |
|
Datasheet | PBW (50W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 1.7 A | 2.4 A | - | - | - | - | 50W | ITE (Commercial) | - | - | DC Input Capable, Universal Input | Chassis Mount | - |
|
PBA75F-5-NAC/DC CONVERTER 5V 75W |
2,565 |
|
Datasheet | PBA (75W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 15 A | - | - | - | - | - | 75W | ITE (Commercial) | - | - | DC Input Capable, Universal Input | Chassis Mount | - |
|

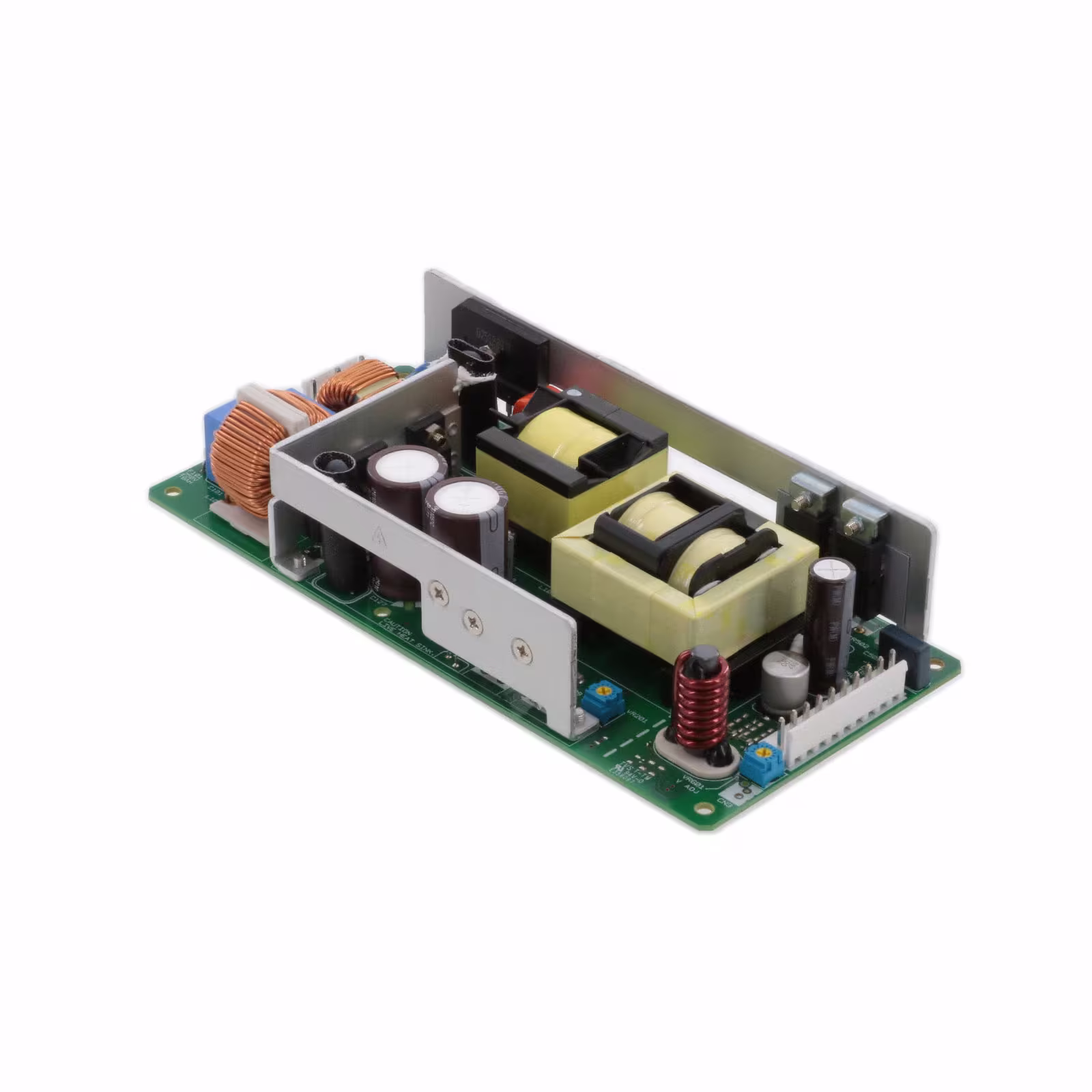

LHA300F-48-YAC/DC CONVERTER 48V 302W |
2,536 |
|
Datasheet | LHA (300W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 302W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.09" L x 3.31" W x 1.32" H (180.1mm x 84.1mm x 33.5mm) |
|
PJA300F-5AC/DC CONVERTER 5V 250W |
4,819 |
|
Datasheet | PJA (300W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 50 A | - | - | - | - | - | 250W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 7.48" L x 4.02" W x 1.61" H (190.0mm x 102.1mm x 40.9mm) |
|
|
PJA300F-36AC/DC CONVERTER 36V 302W |
2,029 |
|
Datasheet | PJA (300W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 8.4 A | - | - | - | - | - | 302W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 7.48" L x 4.02" W x 1.61" H (190.0mm x 102.1mm x 40.9mm) |
|
PMA60F-12AC/DC CONVERTER 12V |
2,290 |
|
Datasheet | PMA (60W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 5 A | - | - | - | - | - | - | Medical | 2 kV | -10°C ~ 70°C | - | Chassis Mount | 5.31" L x 1.26" W x 3.23" H (134.9mm x 32.0mm x 82.0mm) |
|

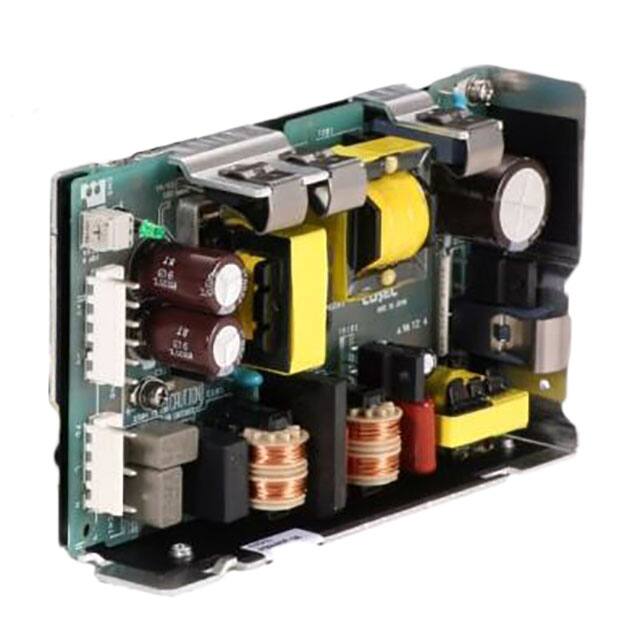

PMA60F-3R3AC/DC CONVERTER 3.3V |
1,408 |
|
Datasheet | PMA (60W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 12 A | - | - | - | - | - | - | Medical | 2 kV | -10°C ~ 70°C | - | Chassis Mount | 5.31" L x 1.26" W x 3.23" H (134.9mm x 32.0mm x 82.0mm) |
|
|

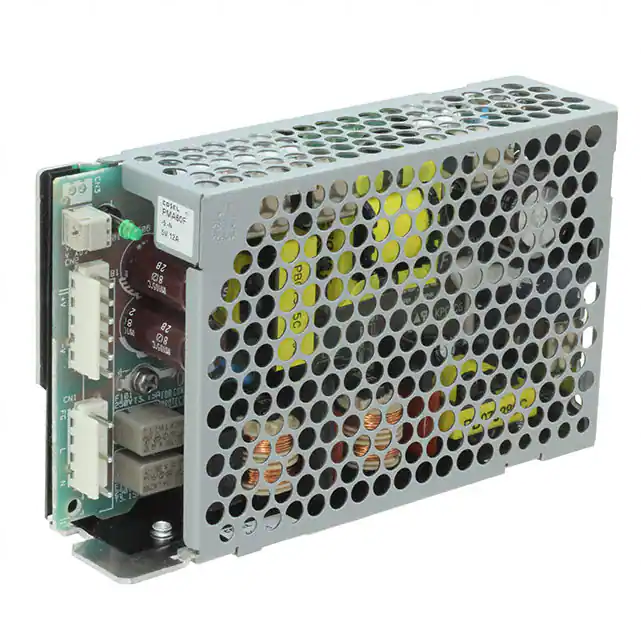

PMA60F-5-NAC/DC CONVERTER 5V |
3,169 |
|
Datasheet | PMA (60W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 12 A | - | - | - | - | - | - | Medical | 2 kV | -10°C ~ 70°C | - | Chassis Mount | 5.31" L x 1.26" W x 3.23" H (134.9mm x 32.0mm x 82.0mm) |
|
|
PMA60F-12-NAC/DC CONVERTER 12V |
3,000 |
|
Datasheet | PMA (60W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 5 A | - | - | - | - | - | - | Medical | 2 kV | -10°C ~ 70°C | - | Chassis Mount | 5.31" L x 1.26" W x 3.23" H (134.9mm x 32.0mm x 82.0mm) |
|
PBA100F-12-NAC/DC CONVERTER 12V 100W |
3,349 |
|
Datasheet | PBA (100W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 8.5 A | - | - | - | - | - | 100W | ITE (Commercial) | - | - | DC Input Capable, Universal Input | Chassis Mount | - |
