AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PJA600F-5AC/DC CONVERTER 5V 500W |
4,530 |
|
Datasheet | PJA (600W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 100 A | - | - | - | - | - | 500W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 8.46" L x 4.72" W x 2.40" H (214.9mm x 119.9mm x 61.0mm) |
|
PJMA600F-24AC/DC CONVERTER 24V 600W |
1,093 |
|
Datasheet | PJMA (600W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 25 A | - | - | - | - | - | 600W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.46" L x 4.72" W x 2.40" H (214.9mm x 119.9mm x 61.0mm) |
|
|
PJMA600F-48AC/DC CONVERTER 48V 600W |
2,604 |
|
Datasheet | PJMA (600W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 600W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.46" L x 4.72" W x 2.40" H (214.9mm x 119.9mm x 61.0mm) |
|
|
PJMA600F-12AC/DC CONVERTER 12V 600W |
2,842 |
|
Datasheet | PJMA (600W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 50 A | - | - | - | - | - | 600W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.46" L x 4.72" W x 2.40" H (214.9mm x 119.9mm x 61.0mm) |
|

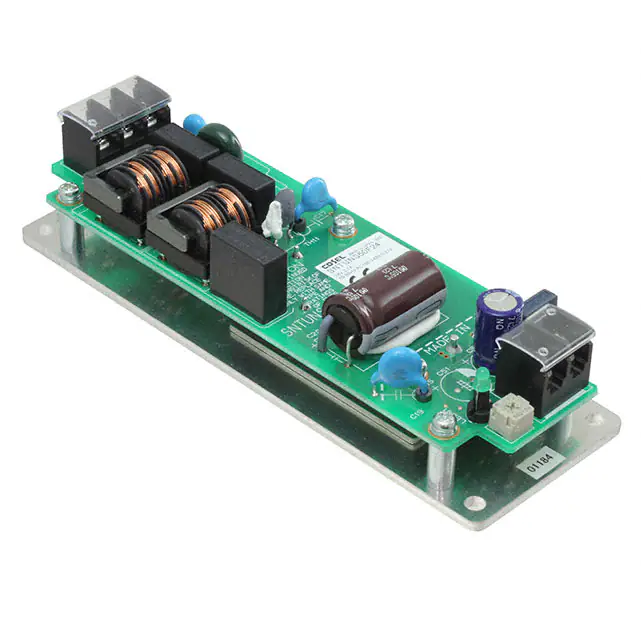

SNTUNS50F24AC/DC CONVERTER 24V |
1,729 |
|
Datasheet | SNTUNS (50W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 2.1 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -20°C ~ 95°C | - | Chassis Mount | 5.91" L x 1.97" W x 1.42" H (150.1mm x 50.0mm x 36.1mm) |
|
GHA500F-48AC/DC CONVERTER 48V 150W |
3,701 |
|
Datasheet | GHA (500W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 150W (500W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.0mm) |
|
|
GHA500F-15AC/DC CONVERTER 15V 150W |
3,627 |
|
Datasheet | GHA (500W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 10 A | - | - | - | - | - | 150W (500W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.0mm) |
|
PBA300F-48AC/DC CONVERTER 48V 300W |
2,285 |
|
Datasheet | PBA (300W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 7 A | - | - | - | - | - | 300W | ITE (Commercial) | - | - | DC Input Capable, Universal Input | Chassis Mount | - |
|
GHA500F-48-SNFAC/DC CONVERTER 48V 504W |
2,477 |
|
Datasheet | GHA (500W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 10.5 A | - | - | - | - | - | 504W | ITE (Commercial), Medical | 4 kV | -20°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.0mm) |
|
|
GHA500F-12AC/DC CONVERTER 12V 150W |
3,382 |
|
Datasheet | GHA (500W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W (500W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.0mm) |
