Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1DX-A4C10S-AC120VRELAY TIME DELAY 10SEC 5A 250V |
2,773 |
|
- |
S1DX | Bulk | Obsolete | Socketable | Mechanical Relay | On-Delay | 4PDT (4 Form C) | 0.5 Sec ~ 10 Sec | 5A @ 250VAC | 100 ~ 120VAC | Plug In | Hand Dial | Input Voltage | - | - |
|
S1DX-A4C1S-AC120VRELAY TIME DELAY 1SEC 5A 250V |
2,481 |
|
- |
S1DX | Bulk | Obsolete | Socketable | Mechanical Relay | On-Delay | 4PDT (4 Form C) | 0.1 Sec ~ 1 Sec | 5A @ 250VAC | 100 ~ 120VAC | Plug In | Hand Dial | Input Voltage | - | - |
|
LT4HW8-AC24VRELAY TIME DELAY 9999HR 5A 250V |
3,084 |
|
Datasheet | LT4H-W | Bulk | Obsolete | Socketable | Mechanical Relay | Programmable (Multi-Function) | SPDT (1 Form C) | 0.01 Sec ~ 9999 Hrs | 5A @ 250VAC | 24VAC | Plug In, 8 Pin (Octal) | Up/Down Digit Keys | Input Voltage | - | - |
|
PM4HF8-M-AC240VRELAY TIME DELAY 10MIN 3A 250V |
2,977 |
|
Datasheet | PM4H-F | Bulk | Obsolete | Socketable | Mechanical Relay | Off-Delay | DPDT (2 Form C) | 0.04 Min ~ 10 Min | 3A @ 250VAC | 200 ~ 240VAC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|
PM4S-A2C30M-AC240VRELAY TIME DELAY 30MIN 5A 250V |
4,637 |
|
Datasheet | PM4S | Bulk | Obsolete | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 3 Sec ~ 30 Min | 5A @ 250VAC | 200 ~ 240VAC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|

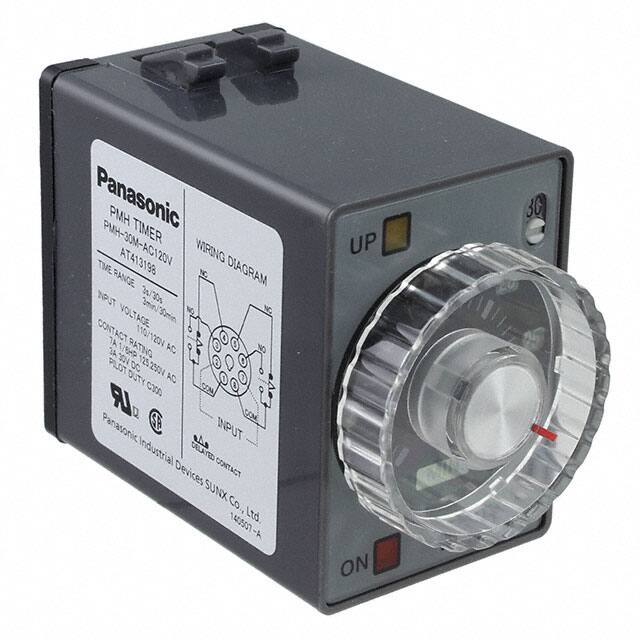

PMH-30M-AC120VRELAY TIME DELAY 30MIN 7A 250V |
1,252 |
|
Datasheet | PMH | Bulk | Obsolete | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.15 Sec ~ 30 Min | 7A @ 250VAC | 100 ~ 120VAC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|
S1DX-A2C3S-AC120VRELAY TIME DELAY 3SEC 7A 250V |
3,349 |
|
- |
S1DX | Bulk | Obsolete | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.1 Sec ~ 3 Sec | 7A @ 250VAC | 100 ~ 120VAC | Plug In | Hand Dial | Input Voltage | - | - |
|
PM4HM-H-AC240VSWRELAY TIME DELAY 500HR 5A 250V |
3,992 |
|
Datasheet | PM4H-M | Bulk | Obsolete | Panel Mount | Mechanical Relay | Programmable (Multi-Function) | SPDT (1 Form C) | 0.1 Sec ~ 500 Hrs | 5A @ 250VAC | 100 ~ 240VAC | Screw Terminal | Hand Dial | Input Voltage | - | - |
|
PM4HS-H-DC12VWRELAY TIME DELAY 500HR 5A 250V |
4,913 |
|
Datasheet | PM4H-S | Bulk | Obsolete | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.1 Sec ~ 500 Hrs | 5A @ 250VAC | 12VDC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|
PM4HW-H-24VSWRELAY TIME DELAY 500HR 5A 250V |
3,589 |
|
Datasheet | PM4H-W | Bulk | Obsolete | Panel Mount | Mechanical Relay | Repeat Cycle, Twin Timer | DPDT (2 Form C) | 0.1 Sec ~ 500 Hrs | 5A @ 250VAC | 24VAC/DC | Screw Terminal | Hand Dial | Input Voltage | - | - |
