Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1DXM-A2C60M-AC220VRELAY TIME DELAY 60MIN 7A 250V |
4,509 |
|
Datasheet | S1DXM | Box | Obsolete | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.5 Sec ~ 60 Min | 7A @ 250VAC | 200 ~ 220VAC | Plug In | Hand Dial | Input Voltage | - | - |
|

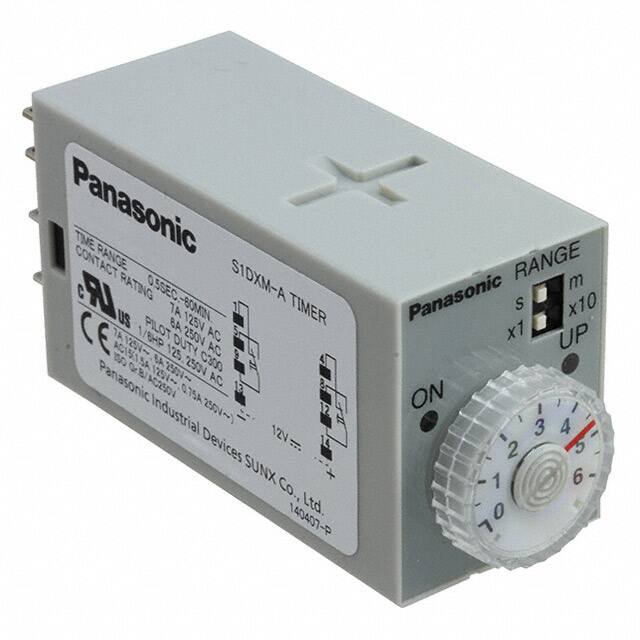

S1DXM-A2C60M-DC12VRELAY TIME DELAY 60MIN 7A 250V |
2,068 |
|
Datasheet | S1DXM | Box | Obsolete | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.5 Sec ~ 60 Min | 7A @ 250VAC | 12VDC | Plug In | Hand Dial | Input Voltage | - | - |
|
|
S1DXMM2C10MAC120VRELAY TIME DELAY 10MIN 7A 250V |
3,813 |
|
Datasheet | S1DXM | Box | Obsolete | Socketable | Mechanical Relay | Programmable (Multi-Function) | DPDT (2 Form C) | 0.05 Sec ~ 10 Min | 7A @ 250VAC | 100 ~ 120VAC | Plug In | Hand Dial | Input Voltage | - | - |
|
|
S1DXM-M2C10M-AC220VRELAY TIME DELAY 10MIN 7A 250V |
3,862 |
|
Datasheet | S1DXM | Box | Obsolete | Socketable | Mechanical Relay | Programmable (Multi-Function) | DPDT (2 Form C) | 0.05 Sec ~ 10 Min | 7A @ 250VAC | 200 ~ 220VAC | Plug In | Hand Dial | Input Voltage | - | - |
|

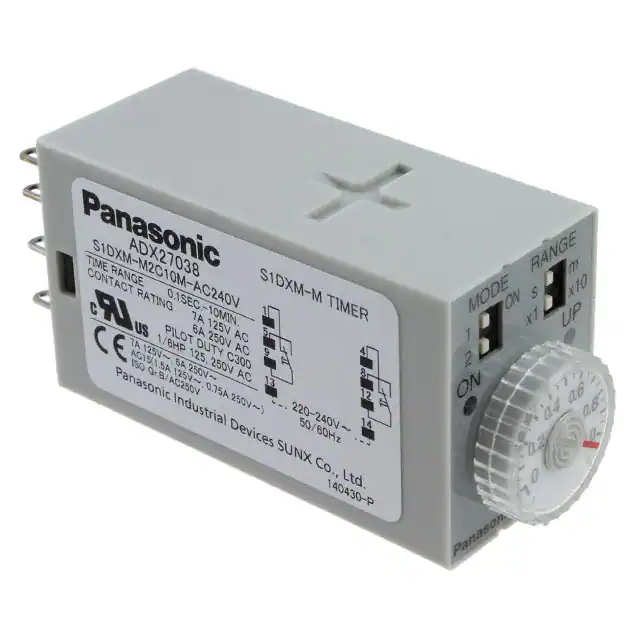

S1DXMM2C10MAC240VRELAY TIME DELAY 10MIN 7A 250V |
2,872 |
|
Datasheet | S1DXM | Box | Obsolete | Socketable | Mechanical Relay | Programmable (Multi-Function) | DPDT (2 Form C) | 0.05 Sec ~ 10 Min | 7A @ 250VAC | 220 ~ 240VAC | Plug In | Hand Dial | Input Voltage | - | - |
|
S1DXM-M2C10M-DC24VRELAY TIME DELAY 10MIN 7A 250V |
1,775 |
|
Datasheet | S1DXM | Box | Obsolete | Socketable | Mechanical Relay | Programmable (Multi-Function) | DPDT (2 Form C) | 0.05 Sec ~ 10 Min | 7A @ 250VAC | 24VDC | Plug In | Hand Dial | Input Voltage | - | - |
|
S1DXM-M2C30M-DC24VRELAY TIME DELAY 30MIN 7A 250V |
3,258 |
|
Datasheet | S1DXM | Box | Obsolete | Socketable | Mechanical Relay | Programmable (Multi-Function) | DPDT (2 Form C) | 0.2 Sec ~ 30 Min | 7A @ 250VAC | 24VDC | Plug In | Hand Dial | Input Voltage | - | - |
|
|
S1DXM-M2C60M-AC240VRELAY TIME DELAY 60MIN 7A 250V |
1,966 |
|
Datasheet | S1DXM | Box | Obsolete | Socketable | Mechanical Relay | Programmable (Multi-Function) | DPDT (2 Form C) | 0.5 Sec ~ 60 Min | 7A @ 250VAC | 220 ~ 240VAC | Plug In | Hand Dial | Input Voltage | - | - |
|
|
PM5S-M-24-240VRELAY TIME DELAY 500HR 5A 250V |
1,716 |
|
Datasheet | PM5S | Box | Obsolete | DIN Rail | Mechanical Relay | Programmable (Multi-Function) | SPDT (1 Form C) | 0.1 Sec ~ 500 Hrs | 5A @ 250VAC | 24 ~ 240VAC/DC | Screw Terminal | Hand Dial | Input Voltage, Trigger Signal | - | - |
|

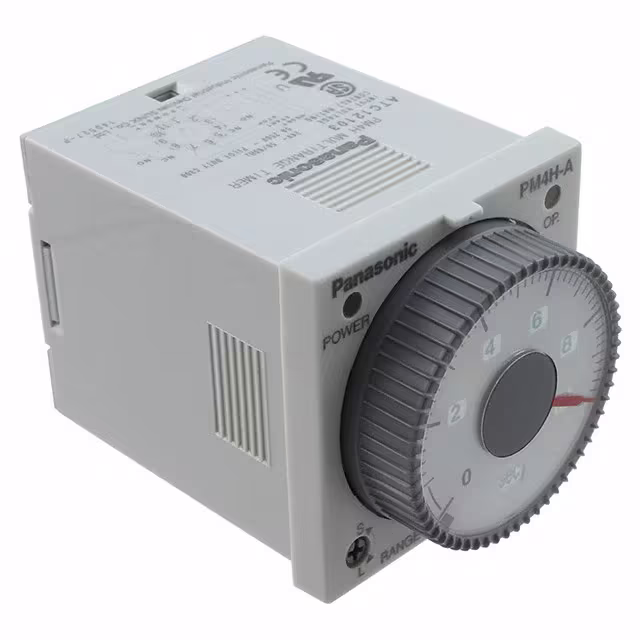

PM4HA-H-24VRELAY TIME DELAY 500HR 5A 250V |
4,573 |
|
Datasheet | PM4H-A | Bulk | Obsolete | Socketable | Mechanical Relay | Programmable (Multi-Function) | DPDT (2 Form C) | 1 Sec ~ 500 Hrs | 5A @ 250VAC | 24VAC/DC | Plug In, 11 Pin (Octal) | Hand Dial | Input Voltage, Trigger Signal | - | - |
