Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1DXMA2C30MAC240VRELAY TIME DELAY 30MIN 7A 250V |
3,482 |
|
Datasheet | S1DXM | Box | Active | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.2 Sec ~ 30 Min | 7A @ 250VAC | 220 ~ 240VAC | Plug In | Hand Dial | Input Voltage | - | - |
|

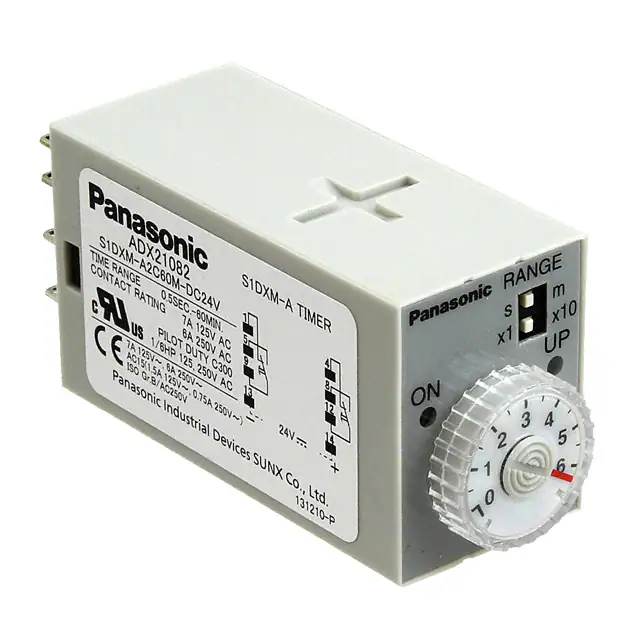

S1DXM-A2C60M-DC24VRELAY TIME DELAY 60MIN 7A 250V |
1,982 |
|
Datasheet | S1DXM | Box | Obsolete | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.5 Sec ~ 60 Min | 7A @ 250VAC | 24VDC | Plug In | Hand Dial | Input Voltage | - | - |
|
PMH-30M-AC240VRELAY TIME DELAY 30MIN 7A 250V |
1,309 |
|
Datasheet | PMH | Bulk | Active | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.15 Sec ~ 30 Min | 7A @ 250VAC | 240VAC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|
|
PMH-30H-AC240VRELAY TIME DELAY 30HR 7A 250V |
3,601 |
|
Datasheet | PMH | Bulk | Active | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.15 Min ~ 30 Hrs | 7A @ 250VAC | 240VAC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|
PM4HS-H-AC240VRELAY TIME DELAY 500HR 5A 250V |
1,078 |
|
Datasheet | PM4H-S | Box | Obsolete | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.1 Sec ~ 500 Hrs | 5A @ 250VAC | 100 ~ 240VAC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|
|
S1DX-A4C60S-DC24VRELAY TIME DELAY 60SEC 5A 250V |
4,835 |
|
Datasheet | S1DX | Bulk | Obsolete | Socketable | Mechanical Relay | On-Delay | 4PDT (4 Form C) | 3 Sec ~ 60 Sec | 5A @ 250VAC | 24VDC | Plug In | Hand Dial | Input Voltage | - | - |
|
|
S1DX-A2C30M-AC120VRELAY TIME DELAY |
2,492 |
|
Datasheet | S1DX | Bulk | Obsolete | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 1 Min ~ 30 Min | 7A @ 250VAC | 100 ~ 120VAC | Plug In | Hand Dial | Input Voltage | - | - |
|
|
PMH-10H-AC240VRELAY TIME DELAY 10HR ANALOG |
4,074 |
|
- |
PMH | Bulk | Active | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.05 Min ~ 10 Hrs | 7A @ 250VAC | 240VAC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|
|
PMH-10M-AC240VRELAY TIME DELAY 10M ANALOG |
1,161 |
|
- |
PMH | Bulk | Active | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.05 Sec ~ 10 Min | 7A @ 250VAC | 240VAC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|
|
PMH-10H-AC24VRELAY TIME DELAY 10HR ANALOG |
4,409 |
|
- |
PMH | Bulk | Active | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.05 Min ~ 10 Hrs | 7A @ 250VAC | 24VAC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
