Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

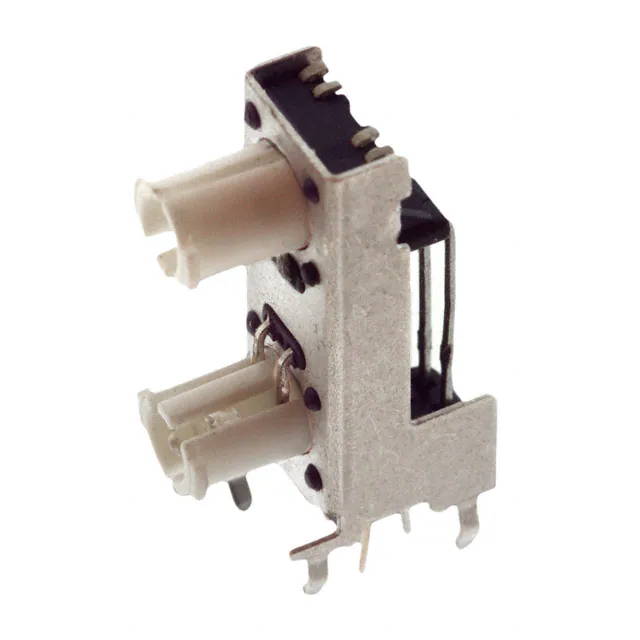

TL3253BRNBRNF160QSWITCH TACT SPSTX2 0.05A 12V |
4,555 |
|
Datasheet | TL3253 | Bulk | Active | SPST x 2 | Off-Mom | 0.05A @ 12VDC | Dual | Through Hole, Right Angle | - | 8.55mm | Side Actuated | PC Pin | 8.40mm x 10.50mm | Illuminated | LED, Red | 1.95 VDC | 160gf | - | - | -20°C ~ 70°C |
|
|
TL3253BRNBGNF160QSWITCH TACT SPSTX2 0.05A 12V |
4,272 |
|
Datasheet | TL3253 | Bulk | Active | SPST x 2 | Off-Mom | 0.05A @ 12VDC | Dual | Through Hole, Right Angle | - | 8.55mm | Side Actuated | PC Pin | 8.40mm x 10.50mm | Illuminated | LED, Green/Red | 1.95, 2.1 VDC | 160gf | - | - | -20°C ~ 70°C |
|
TL1220R2BGGBHALOSWITCH TACTILE SPST-NO 0.05A 12V |
2,694 |
|
Datasheet | TL1220 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 9.90mm | - | Top Actuated | PC Pin | 7.60mm x 6.00mm | Illuminated | LED, Blue | 2.8 VDC | 180gf | - | - | -40°C ~ 85°C |
|
|
TL1220R2BBBRB-HALOSWITCH TACTILE SPST-NO 0.05A 12V |
3,657 |
|
Datasheet | TL1220 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 9.90mm | - | Top Actuated | PC Pin | 7.60mm x 6.00mm | Illuminated | LED, Blue/Red | 2.3, 3.5 VDC | 180gf | - | - | -40°C ~ 85°C |
|
|
TL1220R3BBBB-HALOSWITCH TACTILE SPST-NO 0.05A 12V |
1,200 |
|
Datasheet | TL1220 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 10.00mm | - | Top Actuated | PC Pin | 7.60mm x 6.00mm | Illuminated | LED, Blue | 3.5 VDC | 180gf | - | - | -40°C ~ 85°C |
|
|
TL1260GYQC1GRY-PWRSWITCH TACTILE SPST-NO 0.05A 12V |
2,030 |
|
Datasheet | TL1260 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole, Right Angle | - | 6.85mm | Side Actuated | PC Pin | 7.00mm x 6.80mm | Illuminated | LED, Green/Yellow | 2.3 VDC | 160gf | - | - | -20°C ~ 70°C |
|
|
TL3265RGQTCLRSWITCH TACTILE SPST-NO 0.05A 12V |
2,501 |
|
Datasheet | TL3265 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Surface Mount | 12.35mm | - | Top Actuated | Gull Wing | 7.00mm x 6.80mm | Illuminated | LED, Green/Red | 1.95, 2.1 VDC | 160gf | - | - | -40°C ~ 85°C |
|
|
TL3253AYBAGBF160QSWITCH TACT SPSTX2 0.05A 12V |
3,053 |
|
Datasheet | TL3253 | Bulk | Active | SPST x 2 | Off-Mom | 0.05A @ 12VDC | Dual | Through Hole, Right Angle | - | 6.60mm | Side Actuated | PC Pin | 8.40mm x 10.50mm | Illuminated | LED, Green/Yellow | 2.0, 2.1 VDC | 160gf | - | - | -20°C ~ 70°C |
|
|
TL3253BNNBBBF160QSWITCH TACT SPSTX2 0.05A 12V |
4,914 |
|
Datasheet | TL3253 | Bulk | Active | SPST x 2 | Off-Mom | 0.05A @ 12VDC | Dual | Through Hole, Right Angle | - | 8.55mm | Side Actuated | PC Pin | 8.40mm x 10.50mm | Illuminated | LED, Blue | 3.3 VDC | 160gf | - | - | -20°C ~ 70°C |
|
|
TL1220RXNNBW-HALOSWITCH TACTILE SPST-NO 0.05A 12V |
1,351 |
|
Datasheet | TL1220 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | - | - | Top Actuated | PC Pin | 7.60mm x 6.00mm | Illuminated | LED, White | 3.6 VDC | 180gf | - | - | -40°C ~ 85°C |
