Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL3210AF160ZQSWITCH TACTILE SPST-NO 0.05A 12V |
1,648 |
|
Datasheet | TL3210 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 3.12mm | - | Top Actuated | Gull Wing | 5.60mm x 3.40mm | Illuminated | LED, Green/Yellow | 2.0, 2.1 VDC | 160gf | - | - | -20°C ~ 70°C |
|
|
TL6215RF200BNNSWITCH TACTILE SPST-NO 0.05A 12V |
4,648 |
|
Datasheet | TL6215 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole, Right Angle | - | 4.45mm | Side Actuated | PC Pin | 7.70mm x 6.65mm | Illuminated | LED, Blue | 3.3 VDC | 200gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|

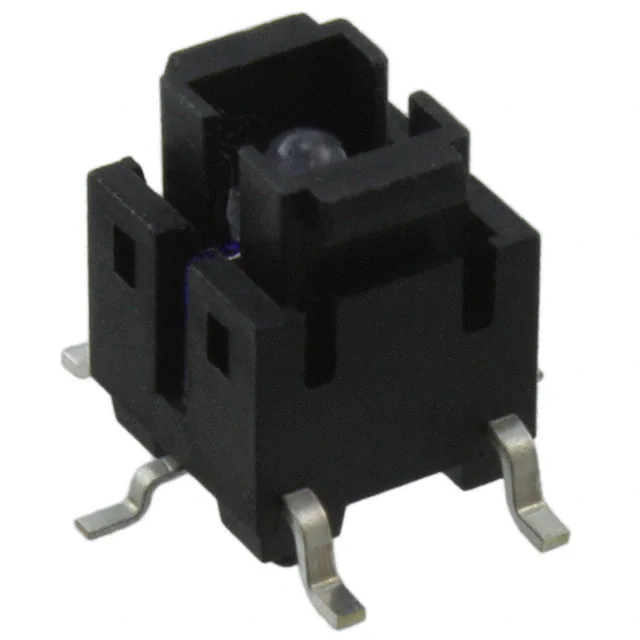

TL3240F100BSWITCH TACTILE SPST-NO 0.05A 12V |
1,298 |
|
Datasheet | TL3240 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.80mm | - | Top Actuated | Gull Wing | 6.10mm x 6.10mm | Illuminated | LED, Blue | 3.2 VDC | 100gf | - | Board Guide | -25°C ~ 70°C |
|
|
TL1260GYQC1GRY-PWRVERTSWITCH TACTILE SPST-NO 0.05A 12V |
4,473 |
|
Datasheet | TL1260 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole, Right Angle | - | 6.85mm | Side Actuated | PC Pin | 7.00mm x 6.80mm | Illuminated | LED, Green/Yellow | 2.3 VDC | 160gf | - | - | -20°C ~ 70°C |
|
|
TL3200AF160BBQSWITCH TACTILE SPST-NO 0.05A 12V |
1,491 |
|
Datasheet | TL3200 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 2.50mm | - | Top Actuated | Gull Wing | 6.80mm x 4.50mm | Illuminated | LED, Blue/Blue | 3.7 VDC | 160gf | - | - | -25°C ~ 85°C |
|
|
TL1260BQSCLRSWITCH TACTILE SPST-NO 0.05A 12V |
2,017 |
|
Datasheet | TL1260 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole, Right Angle | - | 11.10mm | Side Actuated | PC Pin | 7.00mm x 6.80mm | Illuminated | LED, Blue | 3.7 VDC | 160gf | - | - | -20°C ~ 70°C |
|
TL6275BA2PQNBSWITCH TACTILE SPST-NO 0.05A 12V |
4,428 |
|
Datasheet | TL6275 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 9.05mm | - | Top Actuated | PC Pin | 8.00mm x 8.00mm | Illuminated | LED, Blue | - | 350gf | - | - | -25°C ~ 70°C |
|
|
TL6275AA2PQNWSWITCH TACTILE SPST-NO 0.05A 12V |
3,086 |
|
Datasheet | TL6275 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 7.20mm | - | Top Actuated | PC Pin | 8.00mm x 8.00mm | Illuminated | LED, White | 3.2 VDC | 350gf | - | - | -20°C ~ 70°C |
|
|
TL1220R1BBBW-HALOSWITCH TACTILE SPST-NO 0.05A 12V |
1,150 |
|
Datasheet | TL1220 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 9.90mm | - | Top Actuated | PC Pin | 7.60mm x 6.00mm | Illuminated | LED, White | 3.6 VDC | 180gf | - | - | -40°C ~ 85°C |
|
TL6215VF200BGTSWITCH TACTILE SPST-NO 0.05A 12V |
3,489 |
|
Datasheet | TL6215 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Oval Button | Through Hole | 10.50mm | - | Top Actuated | PC Pin | 7.70mm x 6.37mm | Illuminated | LED, Blue | 3.3 VDC | 200gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
