Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL1260GQSBLK-PWRVERTSWITCH TACTILE SPST-NO 0.05A 12V |
1,101 |
|
Datasheet | TL1260 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole, Right Angle | - | 11.10mm | Side Actuated | PC Pin | 7.00mm x 6.80mm | Illuminated | LED, Green | 2.3 VDC | 160gf | - | - | -20°C ~ 70°C |
|
|
TL3200AF160WRQSWITCH TACTILE SPST-NO 0.05A 12V |
1,511 |
|
Datasheet | TL3200 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 2.50mm | - | Top Actuated | Gull Wing | 6.80mm x 4.50mm | Illuminated | LED, Red/White | 3.7, 2.3 VDC | 160gf | - | - | -25°C ~ 85°C |
|
|
TL1245F280GYRRCLRSWITCH TACTILE |
2,718 |
|
Datasheet | TL1240 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TL6200XBF300QPSWITCH TACTILE SPST-NO 0.05A 24V |
2,840 |
|
Datasheet | TL6200 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Round Button | Through Hole | 6.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
TL1220R3NNBG-HALOSWITCH TACTILE SPST-NO 0.05A 12V |
3,708 |
|
Datasheet | TL1220 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 9.95mm | - | Top Actuated | PC Pin | 7.60mm x 6.00mm | Illuminated | LED, Green | 2.3 VDC | 180gf | - | - | -40°C ~ 85°C |
|
|
TL6200BBF300QPSWITCH TACTILE SPST-NO 0.05A 24V |
2,404 |
|
Datasheet | TL6200 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Round Button | Through Hole | 8.00mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|

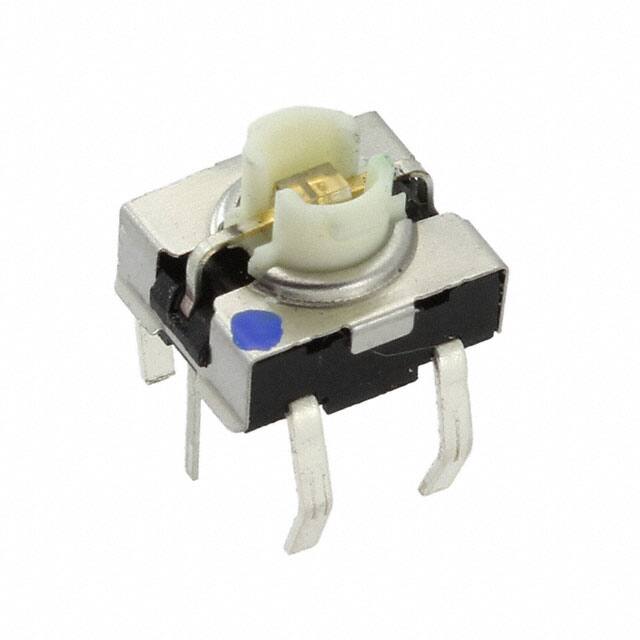

TL6215VF200BNNSWITCH TACTILE SPST-NO 0.05A 12V |
3,897 |
|
Datasheet | TL6215 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 5.35mm | - | Top Actuated | PC Pin | 7.70mm x 6.37mm | Illuminated | LED, Blue | 3.3 VDC | 200gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
|
TL3210AF160XQSWITCH TACTILE SPST-NO 0.05A 12V |
3,272 |
|
Datasheet | TL3210 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 3.12mm | - | Top Actuated | Gull Wing | 5.60mm x 3.40mm | Illuminated | LED, Green/Red | 1.95, 3.3 VDC | 160gf | - | - | -20°C ~ 70°C |
|
|
TL1265WQRGRYSWITCH TACTILE SPST-NO 0.05A 12V |
3,669 |
|
Datasheet | TL1265 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 8.50mm | - | Top Actuated | PC Pin | 7.00mm x 6.80mm | Illuminated | LED, White | 3.6 VDC | 160gf | - | Gray Cap | -20°C ~ 70°C |
|
|
TL1220R3BBBRG-POWERSWITCH TACTILE SPST-NO 0.05A 12V |
3,531 |
|
Datasheet | TL1220 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 10.00mm | - | Top Actuated | PC Pin | 7.60mm x 6.00mm | Illuminated | LED, Green/Red | 2.3 VDC | 180gf | - | - | -40°C ~ 85°C |
