Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL6215VF450NGKSWITCH TACTILE SPST-NO 0.05A 12V |
2,386 |
|
Datasheet | TL6215 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Oval Button | Through Hole | 10.50mm | - | Top Actuated | PC Pin | 7.70mm x 6.37mm | Non-Illuminated | - | - | 450gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|

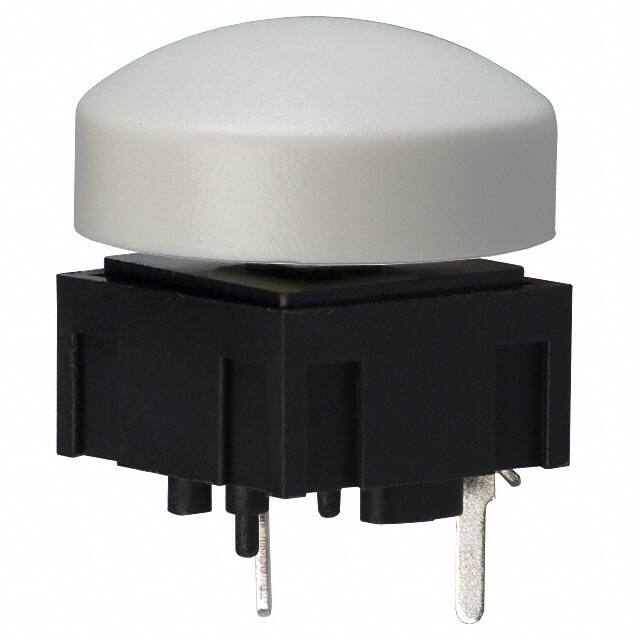

320.02E11.09GRYSWITCH TACT SPST-NO 0.025A 50V |
1,925 |
|
Datasheet | 320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Round Button | Through Hole | 15.30mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Gray Cap | -20°C ~ 70°C |
|

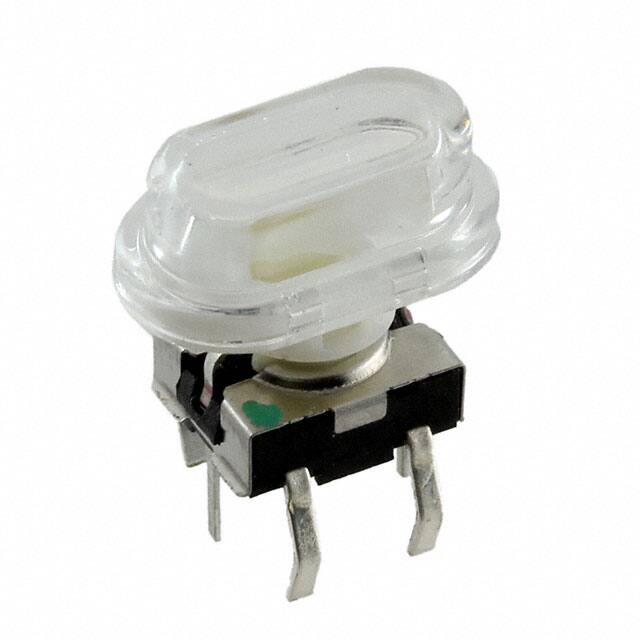

TL6215VF200GGTSWITCH TACTILE SPST-NO 0.05A 12V |
3,722 |
|
Datasheet | TL6215 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Oval Button | Through Hole | 10.50mm | - | Top Actuated | PC Pin | 7.70mm x 6.37mm | Illuminated | LED, Green | 2.1 VDC | 200gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
|
TL6215VF450NBTSWITCH TACTILE SPST-NO 0.05A 12V |
1,775 |
|
Datasheet | TL6215 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 8.80mm | - | Top Actuated | PC Pin | 7.70mm x 6.37mm | Non-Illuminated | - | - | 450gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
TL3240F260BSWITCH TACTILE SPST-NO 0.05A 12V |
3,620 |
|
Datasheet | TL3240 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.80mm | - | Top Actuated | Gull Wing | 6.10mm x 6.10mm | Illuminated | LED, Blue | 3.2 VDC | 260gf | - | Board Guide | -25°C ~ 70°C |
|
|
TL1220R1NNSRG-HALOSWITCH TACTILE SPST-NO 0.05A 12V |
1,533 |
|
Datasheet | TL1220 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 9.80mm | - | Top Actuated | PC Pin | 7.60mm x 6.00mm | Illuminated | LED, Green/Red | 1.95, 2.1 VDC | 180gf | - | - | -40°C ~ 85°C |
|
|
TL1260GYRHCLRSWITCH TACTILE SPST-NO 0.05A 12V |
2,747 |
|
Datasheet | TL1260 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole, Right Angle | - | 6.85mm | Side Actuated | PC Pin | 7.00mm x 6.80mm | Illuminated | LED, Green/Yellow | 2.3 VDC | 160gf | - | - | -20°C ~ 70°C |
|
|
TL3200AF160BGQSWITCH TACTILE SPST-NO 0.05A 12V |
4,141 |
|
Datasheet | TL3200 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 2.50mm | - | Top Actuated | Gull Wing | 6.80mm x 4.50mm | Illuminated | LED, Blue/Green | 3.7, 2.3 VDC | 160gf | - | - | -25°C ~ 85°C |
|
|
TL3200AF160BRQSWITCH TACTILE SPST-NO 0.05A 12V |
4,528 |
|
Datasheet | TL3200 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 2.50mm | - | Top Actuated | Gull Wing | 6.80mm x 4.50mm | Illuminated | LED, Blue/Red | 3.7, 2.3 VDC | 160gf | - | - | -25°C ~ 85°C |
|
|
TL3200AF160BYQSWITCH TACTILE SPST-NO 0.05A 12V |
1,219 |
|
Datasheet | TL3200 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 2.50mm | - | Top Actuated | Gull Wing | 6.80mm x 4.50mm | Illuminated | LED, Blue/Yellow | 3.7, 2.3 VDC | 160gf | - | - | -25°C ~ 85°C |
