Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL3303AF160QGSWITCH TACTILE SPST-NO 0.05A 12V |
1,940 |
|
Datasheet | TL3303 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.20mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
TL1015BF160QGSWITCH TACTILE SPST-NO 0.05A 12V |
3,395 |
|
Datasheet | TL1015 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 2.00mm | - | Top Actuated | Gull Wing | 3.90mm x 2.90mm | Non-Illuminated | - | - | 160gf | - | Board Guide | -20°C ~ 70°C |
|

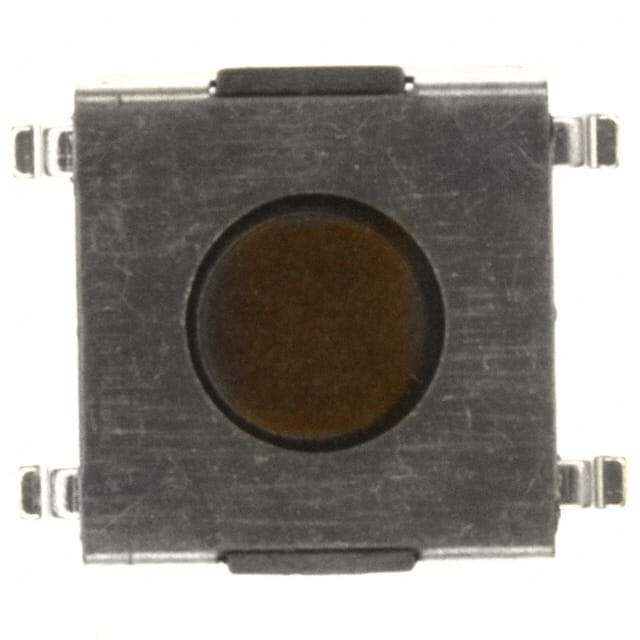

TL3303F100QGSWITCH TACTILE SPST-NO 0.05A 12V |
1,356 |
|
Datasheet | TL3303 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | Gull Wing | 6.20mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
|
TL3301BF160RJSWITCH TACTILE SPST-NO 0.05A 12V |
3,597 |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 9.50mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
TL6700AF260QJSWITCH TACTILE SPST-NO 0.05A 12V |
2,136 |
|
Datasheet | TL6700 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 3.40mm | - | Top Actuated | J Lead | 6.90mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | Process Sealed | -20°C ~ 70°C |
|
TL6700NF160QGSWITCH TACTILE SPST-NO 0.05A 12V |
1,082 |
|
Datasheet | TL6700 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Flush | Surface Mount | 2.60mm | - | Top Actuated | Gull Wing | 6.90mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Process Sealed | -20°C ~ 70°C |
|
TL6700NF260QGSWITCH TACTILE SPST-NO 0.05A 12V |
2,001 |
|
Datasheet | TL6700 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Flush | Surface Mount | 2.60mm | - | Top Actuated | Gull Wing | 6.90mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | Process Sealed | -20°C ~ 70°C |
|
TL1105QF160RSWITCH TACTILE SPST-NO 0.05A 50V |
2,577 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Through Hole, Right Angle | - | 15.85mm | Side Actuated | PC Pin | 7.10mm x 6.55mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
|
TL1105DF250RSWITCH TACTILE SPST-NO 0.05A 12V |
2,975 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 13.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 250gf | - | - | -20°C ~ 70°C |
|
TL1014BF180QGSWITCH TACTILE SPST-NO 0.05A 12V |
1,457 |
|
Datasheet | TL1014 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 6.40mm x 3.50mm | Non-Illuminated | - | - | 180gf | - | Board Guide | -20°C ~ 70°C |
