Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL3301CF160RGSWITCH TACTILE SPST-NO 0.05A 12V |
1,595 |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 8.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
TL3301SPF260RGSWITCH TACTILE SPST-NO 0.05A 12V |
4,804 |
|
Datasheet | TL3301 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.50mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
|
TL53GF160QCACSWITCH TACT SPSTX2 0.05A 12V |
4,649 |
|
Datasheet | TL53 | Tray | Active | SPST x 2 | Off-Mom | 0.05A @ 12VDC | Dual | Through Hole, Right Angle | - | 8.35mm | Side Actuated | PC Pin | 8.40mm x 10.50mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
|
TL6100BF500QPSWITCH TACTILE SPST-NO 0.05A 12V |
2,868 |
|
Datasheet | TL6100 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 5.20mm | - | Top Actuated | PC Pin | 7.20mm x 7.20mm | Non-Illuminated | - | - | 500gf | - | - | -40°C ~ 85°C |
|
|
TL6100CF500QPSWITCH TACTILE SPST-NO 0.05A 12V |
3,394 |
|
Datasheet | TL6100 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 6.90mm | - | Top Actuated | PC Pin | 7.20mm x 7.20mm | Non-Illuminated | - | - | 500gf | - | - | -40°C ~ 85°C |
|

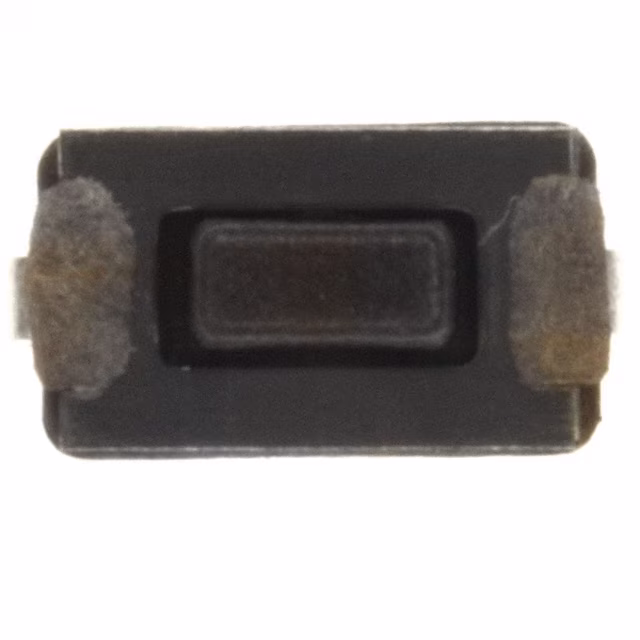

TL3302BF130QJSWITCH TACTILE SPST-NO 0.05A 12V |
1,646 |
|
Datasheet | TL3302 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 5.00mm | - | Top Actuated | J Lead | 6.00mm x 3.50mm | Non-Illuminated | - | - | 130gf | - | Tactile Feedback | -20°C ~ 70°C |
|
TL1014AF180QGSWITCH TACTILE SPST-NO 0.05A 12V |
4,289 |
|
Datasheet | TL1014 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 6.40mm x 3.50mm | Non-Illuminated | - | - | 180gf | - | - | -20°C ~ 70°C |
|
|
320.27E11BLKPEAVEYSWITCH TACTILE |
4,344 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TL1100EF160RSWITCH TACTILE SPST-NO 0.05A 12V |
1,847 |
|
Datasheet | TL1100 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 7.50mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
|
TL1105RF160RSWITCH TACTILE SPST-NO 0.05A 50V |
2,108 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Through Hole, Right Angle | - | 6.15mm | Side Actuated | PC Pin | 7.10mm x 6.55mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
