Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL6700NF260QJSWITCH TACTILE SPST-NO 0.05A 12V |
2,432 |
|
Datasheet | TL6700 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Flush | Surface Mount | 2.60mm | - | Top Actuated | J Lead | 6.90mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | Process Sealed | -20°C ~ 70°C |
|
TL3301NF160RJSWITCH TACTILE SPST-NO 0.05A 12V |
4,125 |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
TL3301AF160RJSWITCH TACTILE SPST-NO 0.05A 12V |
2,545 |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
TL3301TF260RJSWITCH TACTILE SPST-NO 0.05A 12V |
3,352 |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.50mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|

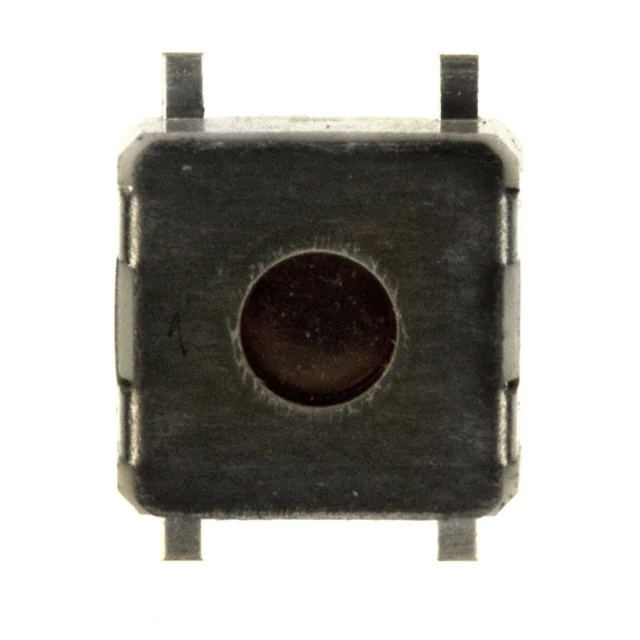

TL3350AF100QSWITCH TACT SPST-NO 0.02A 30V |
4,125 |
|
Datasheet | TL3350 | Tape & Reel (TR) | Obsolete | SPST-NO x 2 | Off-Mom-Mom | 0.02A @ 30VDC | Standard | Surface Mount | 2.00mm | - | Top Actuated | Gull Wing | 6.50mm x 6.20mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
|
TL3350BF100QSWITCH TACT SPST-NO 0.02A 30V |
1,569 |
|
Datasheet | TL3350 | Tape & Reel (TR) | Obsolete | SPST-NO x 2 | Off-Mom-Mom | 0.02A @ 30VDC | Standard | Surface Mount | 3.80mm | - | Top Actuated | Gull Wing | 6.50mm x 6.20mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
|
|
TLE1105BF160RSWITCH TACTILE SPST-NO 0.05A 12V |
1,891 |
|
Datasheet | TLE1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
|
TLE1105BF250RSWITCH TACTILE SPST-NO 0.05A 12V |
3,626 |
|
Datasheet | TLE1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 250gf | - | - | -20°C ~ 70°C |
|

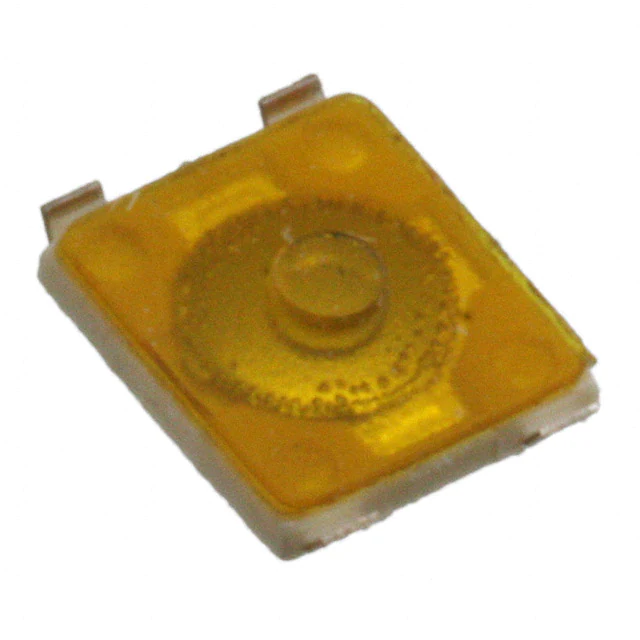

TL3700AF100QGSWITCH TACTILE SPST-NO 0.02A 15V |
2,167 |
|
Datasheet | TL3700 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.65mm | - | Top Actuated | Gull Wing | 3.00mm x 2.60mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 85°C |
|
|
TL6110AF500QPSWITCH TACTILE SPST-NO 0.05A 12V |
1,524 |
|
Datasheet | TL6110 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 3.50mm | Side Actuated | PC Pin | 8.30mm x 5.80mm | Non-Illuminated | - | - | 500gf | - | - | -40°C ~ 85°C |
